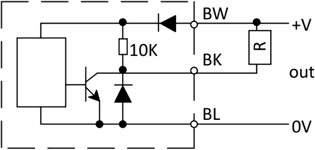

Inductive Electric 3-wire Sensor SE-SEN-TKX-30N15C is used for proximity detection, position monitoring, counting, and speed detection of target metal objects. Sensing distance – 15mm. Protection rating — IP66. The sensor has a cylindrical shape with an external metric thread M30. Output is three-wire — normally open transistor NPN, DC signal voltage from 10 to 30 V ≤200 mA.
| Output Type | 3-wire NPN NO - standard NC - on request |
|---|---|
| Standard Detection Distance | Sn≤15mm |
| Standard Detection Object | Iron plate 30x30x1 mm |
| Effective Distance | 12mm |
| Power Supply | DC 24V (10 to 30 Volts) |
| Frequency | 200 Hz |
| Load Current | 200 mA |
| Housing | Screw-in cylinder with M30 thread |
| Cable | Non-detachable cable 2m |
| Protection Rating | IP66 |

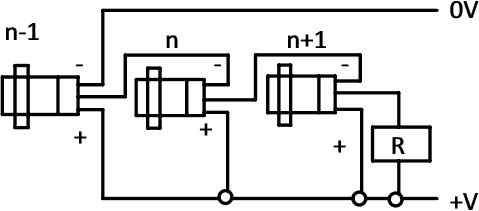

Inductive end sensors NPN can be connected in series:

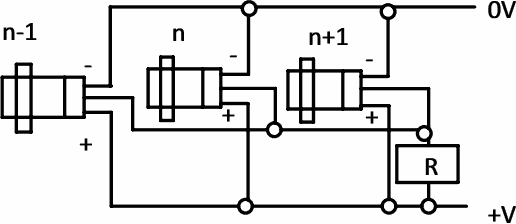

Or parallel connection:
