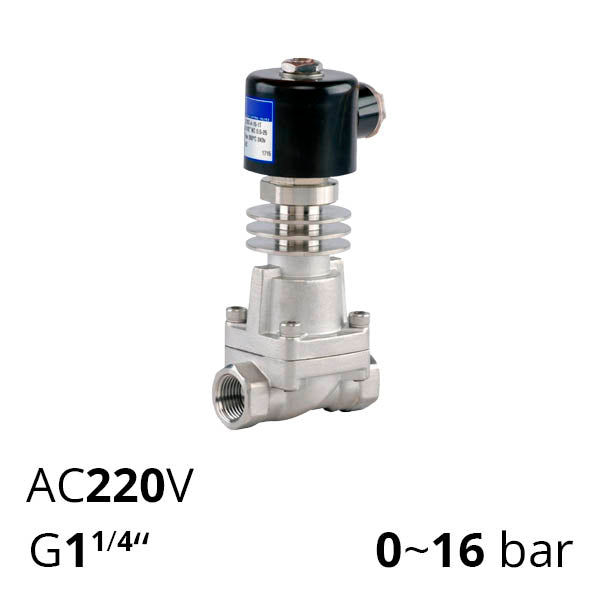

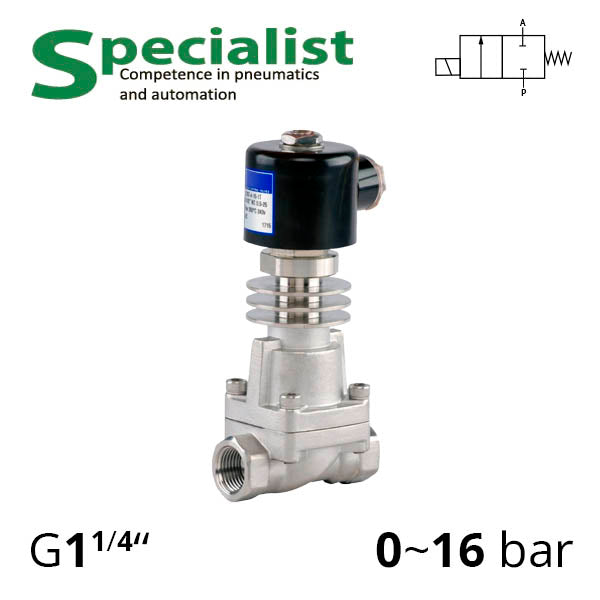

Solenoid valve stainless high temperature 1¼” SV-SH-ES-22NC-35 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Solenoid valve stainless high temperature 1¼” SV-SH-ES-22NC-35 series

Name: Solenoid valve stainless high temperature 1¼” SV-SH-ES-22NC-35 series
Brand: Specialist
SKU: SV-SH-ES-22NC-35-DC24V
Price: 9391.98 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Час доставки

60 днів

Thread size

G 1¼

Model

Manufacturer

Specialist

from 9 391,98 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

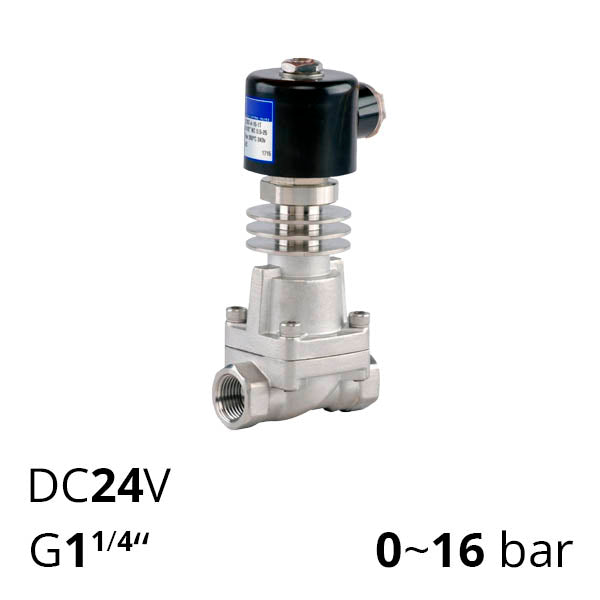

SV-SH-ES-22NC-35-DC24V

Solenoid valve stainless high temperature 1¼” SV-SH-ES-22NC-35 series

Power Voltage=DC24V Час доставки=60 днів Thread size=G 1¼

SV-SH-ES-22NC-35-DC24V

9 391,98 UAH

In Stock

SV-SH-ES-22NC-35-AC220V

Solenoid valve stainless high temperature 1¼” SV-SH-ES-22NC-35 series

Power Voltage=AC220V Час доставки=60 днів Thread size=G 1¼

SV-SH-ES-22NC-35-AC220V

9 391,98 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1¼"

Coil voltage

AC220V, DC24V

Nominal diameter

TWO 35

Тип контролю

Electromagnetic

Delivery time

60 днів

Description

High-temperature valves of SV-SH-ES-22NC-35 series are two-line two-position normally closed piston-type valves, specially designed for operation with media at temperatures up to 250° C and pressures up to 16 bar. They have an internal cylindrical thread G 1¼” and supply voltage of AC 220V or DC 24V. These valves can be supplied with flange and threaded connections.

Technical Specifications of SV-SH High-Temperature Valves
Structure		Two-line two-position normally closed valve with single-side pilot electronic control
Materials		Stainless steel, Teflon
Connection	Threaded	G1¼″

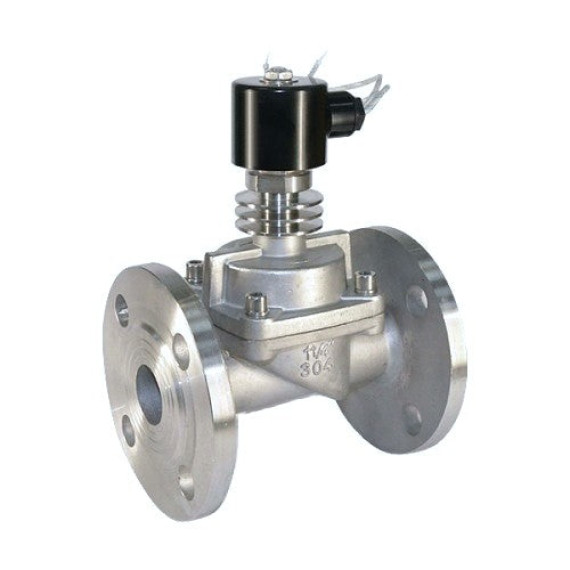

Connection	Flanged	F25,F32,F40,F50
Mounting		Vertical
Operating Temperature Range		from 0 to 250° C
Supply Voltage		AC 220V, AC 110V (power 33VA), DC 24V (power 24W)
Permissible Supply Voltage Fluctuation		±10%
Working Medium		Air, water, steam and other substances compatible with the valve materials
