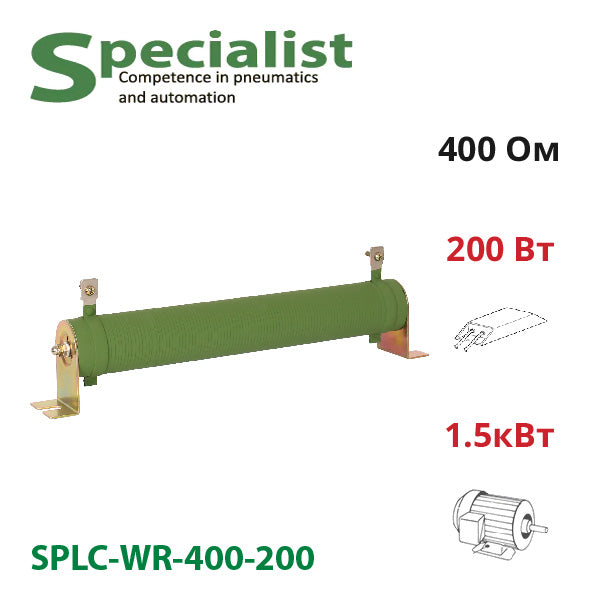

Braking resistor 400 Ohm 200 W SPLC-WR-400-200 for frequency converter 1.5 kW
In Stock
Product Code:
SPLC-WR-400-200
Brand:
Specialist
472,02 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The ceramic resistor model SPLC-WR-400-200 is commonly used as a braking resistor for a 1.5 kW frequency converter for three-phase motors 380 V — selection should be based on the recommended characteristics provided by the frequency converter manufacturer and calculated motor braking power. This wire-wound resistor has a resistance of 400 Ohm and a power rating of 200 Watt.
WR series braking resistors are made from a ceramic tube wound with a wire of iron-chromium-aluminium alloy (by default) or nichrome (on request). The ceramic body serves as an insulator and heatsink, resistant to high temperatures and corrosion. The wire has high specific electrical conductivity, allowing efficient dissipation of heat generated during motor braking.
| Model | SPLC-WR-400-200 |
|---|---|
| Nominal Power | 200 Watt |
| Nominal Resistance | 400 Ohm |
| Resistance Tolerance | ±5% (type J) ±10% (type K) |
| Nominal Load | 50-200 Watt, surface temperature less than 275°C; more than 200 Watt — 350°C |
| Short-term Overload | no visible damage ΔR ≤ ±(5%R + 0.05 Ohm) |
| Insulation Resistance | ΔR ≥ 1000 MOhm 1 min, DC 1000 V |
| Withstanding Voltage | No visible damage, no arc discharge ΔR ≤ ±(0.1%R + 0.05 Ohm), AC 3000 V, 5 s |
| Terminal Strength | no visible damage, 45 N 30 s |
| Material | 0Cr25Al5/Cr20Ni80 |
| Protection Class | IP00 |
| Storage Temperature | from -40 to 50°C (without moisture) |
