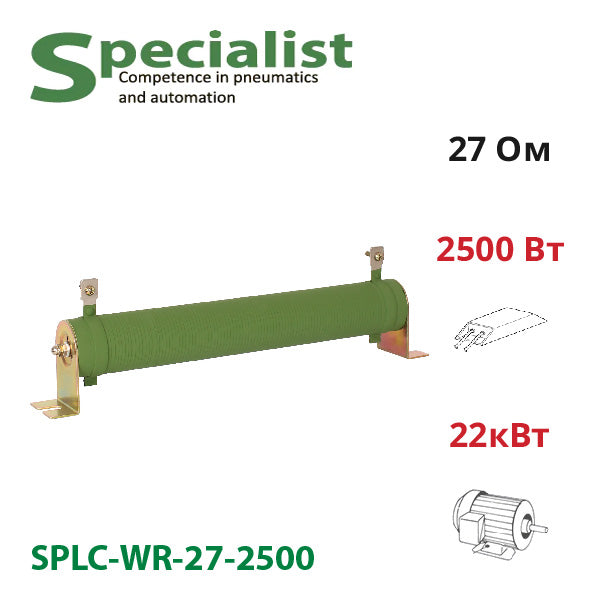

Braking resistor 27.2 Ohm 2500 W SPLC-WR-27-2500 for frequency converter 22 kW
In Stock
Product Code:
SPLC-WR-27-2500
Brand:
Specialist
1 994,10 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The ceramic resistor model SPLC-WR-27-2500 is most often used as a brake resistor for a 22 kW inverter for three-phase motors 380 V — when selecting, refer to the manufacturer's recommended characteristics for the inverter and the calculated braking power of the motor. This wire-wound resistor has a resistance of 27.2 Ohm and a power of 2500 W.
Brake resistors of the WR series are made from a ceramic tube, which is wound with wire from iron-chromium-aluminium alloy (by default) or nichrome (upon request). The ceramic casing acts as an insulator and heat sink that is resistant to high temperatures and corrosion. The wire has high specific electrical conductivity, which allows effective heat dissipation generated during motor braking.
| Model | SPLC-WR-27-2500 |
|---|---|
| Rated Power | 2500 W |
| Rated Resistance | 27.2 Ohm |
| Resistance Tolerance | ±5% (type J) ±10% (type K) |
| Nominal Load | 50-200 W, surface temperature less than 275°C; above 200 W — 350°C |
| Short-Term Overload | without visible damage ΔR ≤ ±(5%R + 0.05 Ohm) |
| Insulation Resistance | ΔR ≥ 1000 MOhm 1 min, DC 1000 V |
| Withstanding Voltage | Without visible damage, no arc discharge ΔR ≤ ±(0.1%R + 0.05 Ohm), AC 3000 V, 5 s |
| Terminal Strength | without visible damage, 45 N 30 s |
| Material | 0Cr25AL5/Cr20Ni80 |
| Protection Class | IP00 |
| Storage Temperature | from -40 to 50°C (no moisture) |
