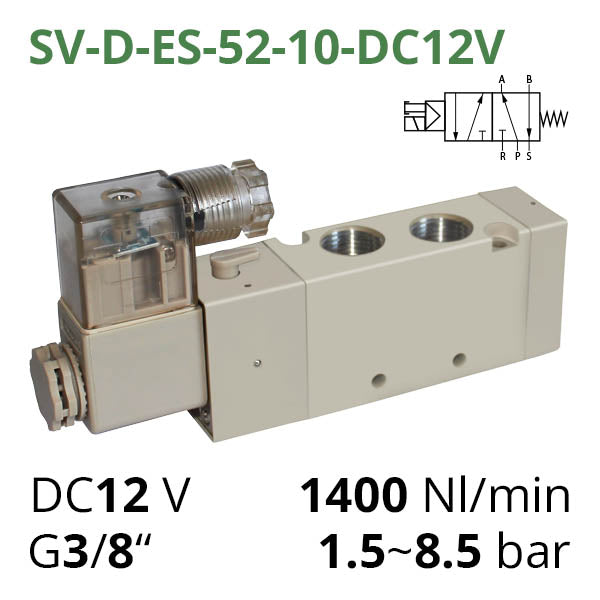

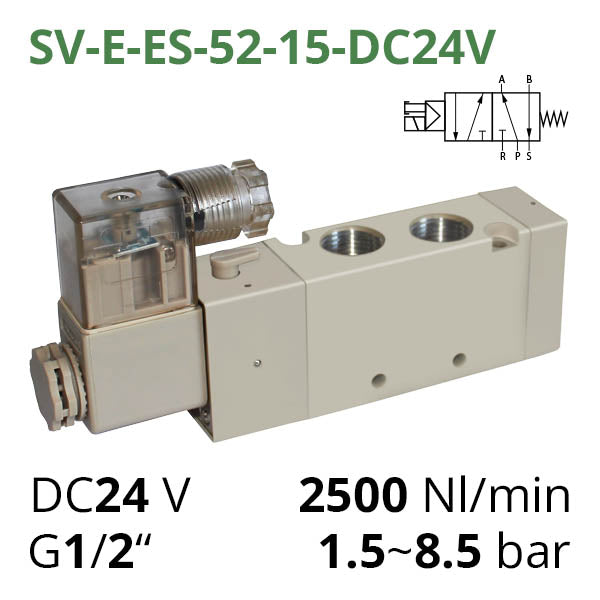

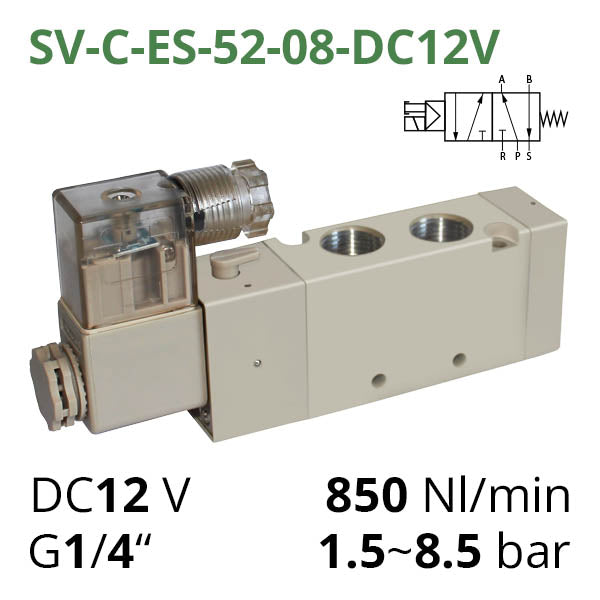

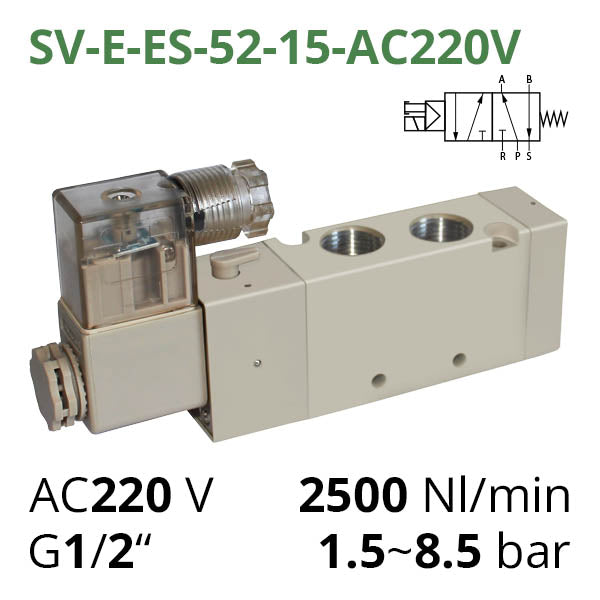

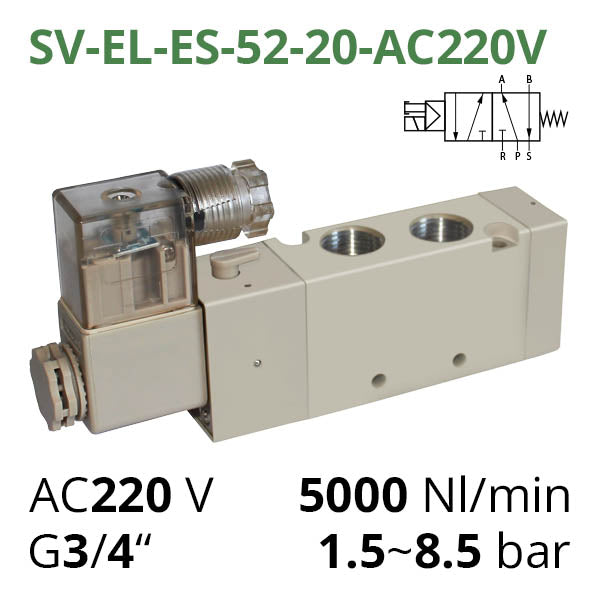

Five-port two-position 5/2 pneumatic directional control valves with single-sided electropneumatic control and return spring are designed for use with compressed air at a working pressure of 1.5-8.5 bar. They can be used to control double-acting pneumatic cylinders or for other applications. They can be installed separately or on a mounting plate.
The five-port directional control valves have five ports on the body, identified by numbers or letters:
Valves are available for order with internal cylindrical threads G1/8″, G1/4″, G3/8″, G1/2″, or G1″. When choosing air silencers or throttles, keep in mind that the sizes of the exhaust valve air distributor are smaller than its inlet-outlet (see Table 1).
In terms of operation, 5/2 directional control valves with single electrical control are monostable, meaning that in the absence of a control electrical signal, the return spring keeps the distributor spool in one specific position — air is supplied through the first outlet, and pressure is released at the second. Single-sided control is recommended in cases where the valve remains in one position for a long time or when returning the distributor to a certain position is based on safety requirements.
Customers have the option to order a solenoid coil with the required electrical characteristics:
Upon request, we can equip the distributor with explosion-proof or other types of solenoid coils.
Directional control valves are divided into series C, D, E, and EL, which differ from each other in terms of effective cross-sectional area, compressed air flow, and sizes of connecting ports.

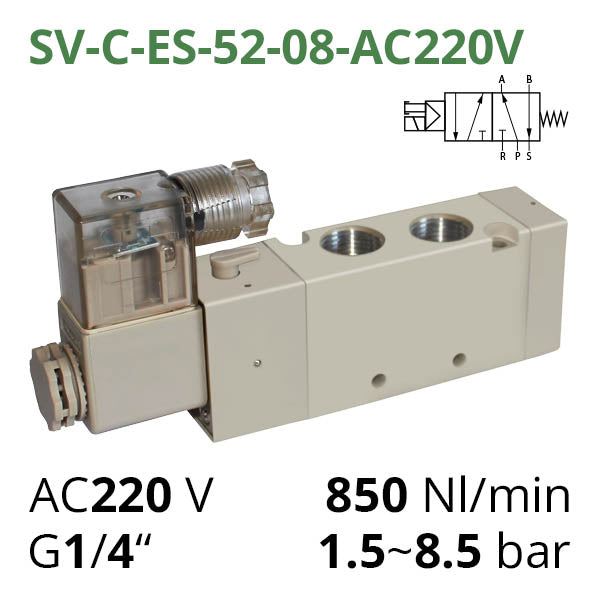

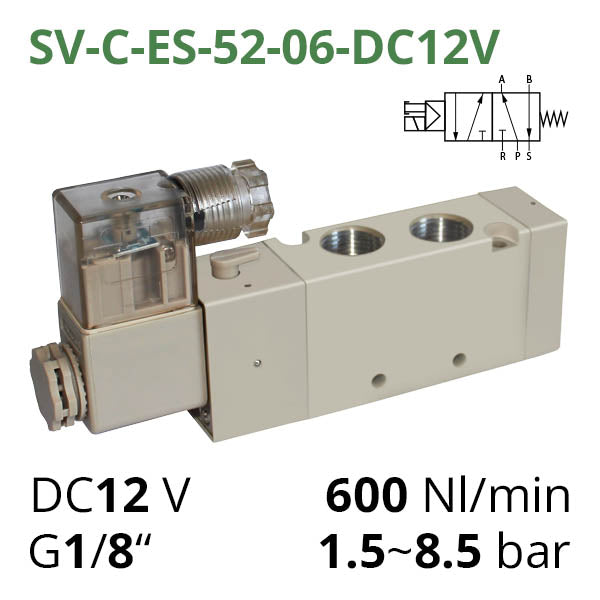

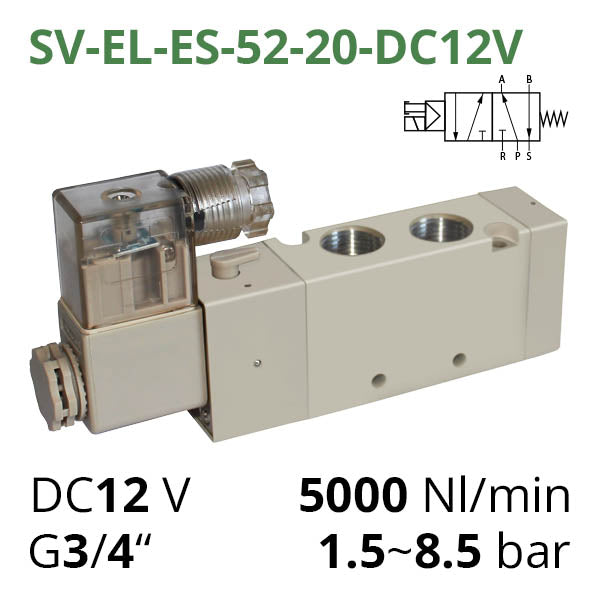

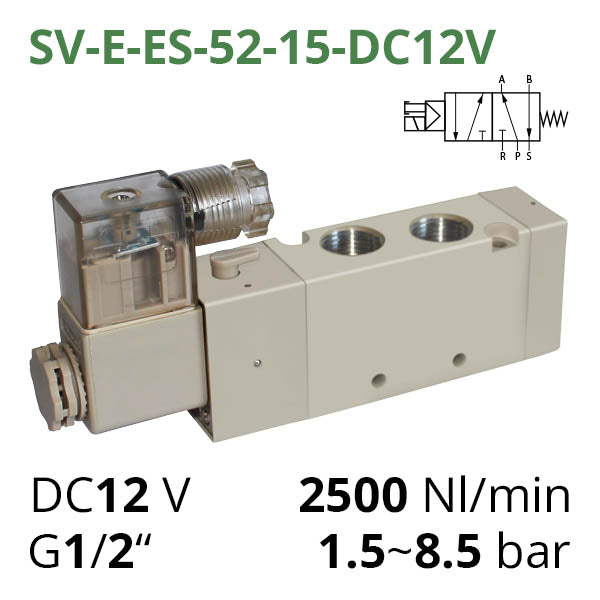

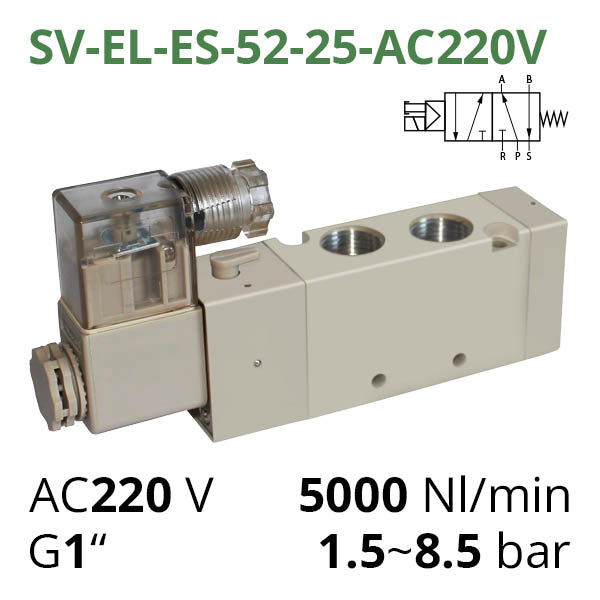

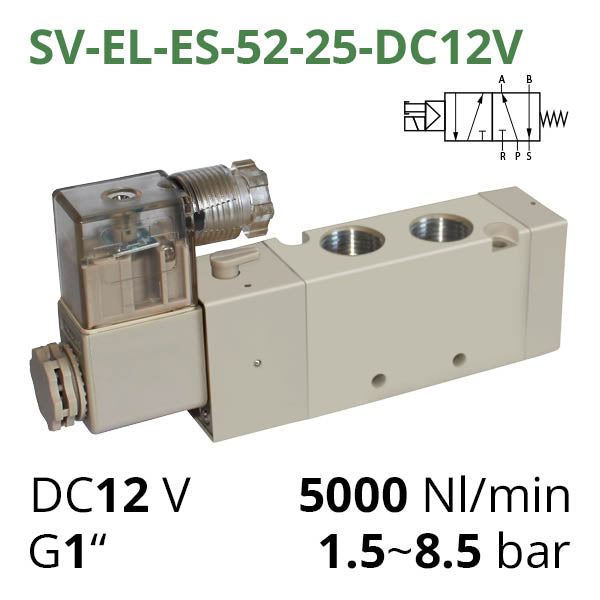

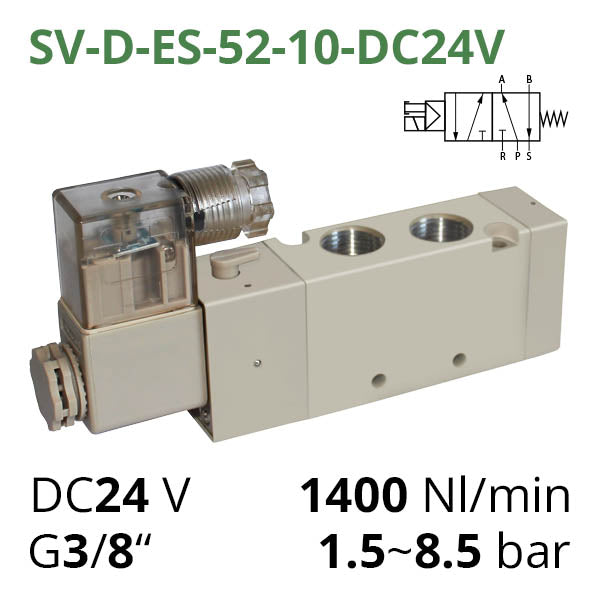

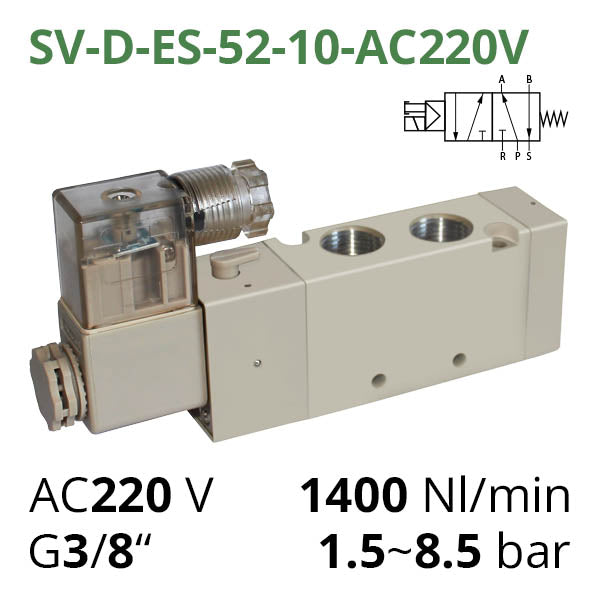

| Model | SV-C-ES-52-06 | SV-C-ES-52-08 | SV-D-ES-52-10 | SV-E-ES-52-15 | SV-EL-ES-52-20 | SV-EL-ES-52-25 |
|---|---|---|---|---|---|---|
| Lines/Positions | 5/2 | 5/2 | 5/2 | 5/2 | 5/2 | 5/2 |
| Effective Cross-Sectional Area | 14 mm2 (CV=0.78) |
16 mm2 (CV=0.89) |
30 mm2 (CV=1.67) |
50 mm2 (CV=2.79) |
95 mm2 (CV=5.0) |
110 mm2 (CV=6.0) |
| Input-Output Thread | G1/8″ | G1/4″ | G3/8″ | G1/2″ | G3/4″ | G1″ |
| Exhaust Thread | G1/8″ | G1/8″ | G1/4″ | G1/2″ | G1/2″ | G3/4″ |
| Nominal Flow Rate | 600 l/min | 850 l/min | 1400 l/min | 2500 l/min | 5000 l/min | |
| Working Medium | Air, filtration fineness not less than 40 microns | |||||
| Control Type | Electropneumatic (pilot), electric (direct) | |||||
| Working Pressure Range | 1.5-8 bar | |||||
| Max. Inlet Pressure | 12 bar | |||||
| Operating Temperature Range | -5...+50° C (in dry air without moisture) | |||||
| Power Supply Voltage | 12 V DC (2.4 W); 24 V DC (3 W); 220 V AC (2.5 VA) | |||||
| Permissible Change in Supply Voltage | -15%...+10% | |||||
| Degree of Protection, Insulation Class | IP65, Class F | |||||
| Max. Operating Frequency | 5 cycles/s | |||||
| Min. Switching Time | 0.05 s | |||||
