Pneumatic shut-off valve with actuator, 1½ inch thread (SV-HD-AA-22-40)

Do you have any questions about the product?
We will be happy to answer them in messengers

Pneumatic shut-off valve with actuator, 1½ inch thread (SV-HD-AA-22-40)

Name: Pneumatic shut-off valve with actuator, 1½ inch thread (SV-HD-AA-22-40)
Brand: Specialist
SKU: SV-HD-AA-22-40
Price: 4442.28 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1½

Model

Manufacturer

Specialist

from 4 442,28 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HD-AA-22-40

Pneumatic shut-off valve with actuator, 1½ inch thread (SV-HD-AA-22-40)

Diameter of conditional passage=40 Thread size=G 1½

SV-HD-AA-22-40

4 442,28 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1½"

Матеріал диску

Bronze

Body material

Bronze

Nominal diameter

TWO 40

Тип засувки

Valve

Nominal diameter

Inlet pressure

Ru8

Тип контролю

With pneumatic drive

Description

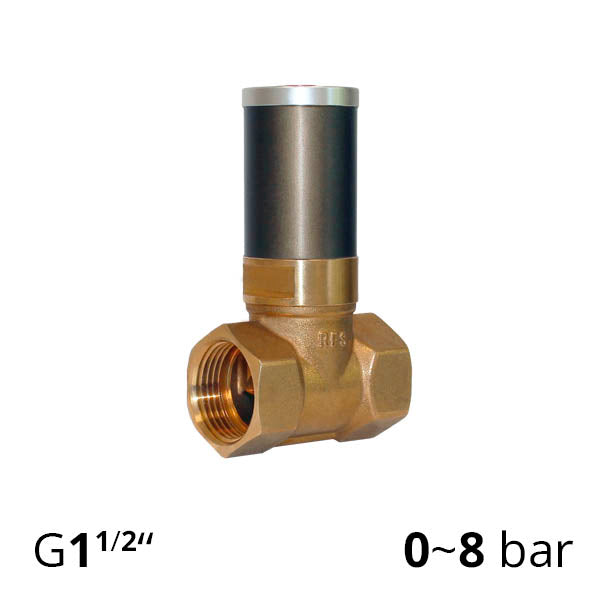

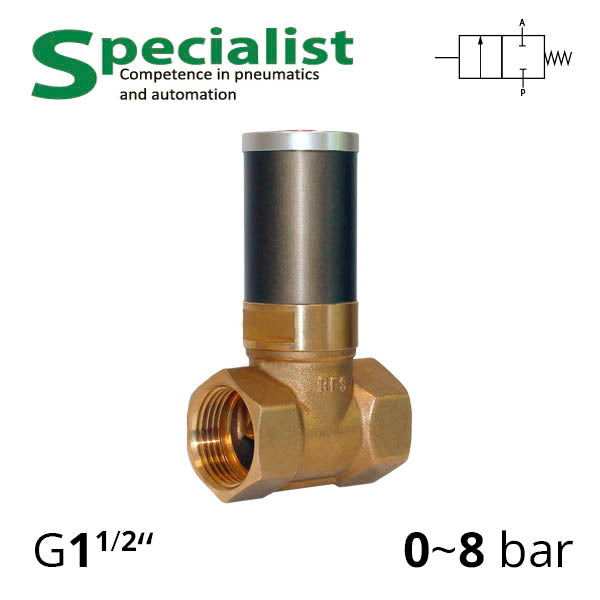

Pneumatic valve SV-HD-AA-22-40 is a bronze actuated shut-off valve with a pneumatic actuator, featuring a threaded connection to the pipeline — internal thread 1½ inch. Flow coefficient Kv 25. The seat valve with pneumatic control is distinguished by reliability and quick action — the built-in pneumatic cylinder diameter 40 mm develops a force of about 770 N at an air pressure of 7 bar, thus the valve actuator effectively overcomes resistance of both viscous substances and pressurized hydraulic fluids, to quickly shut off the flow. Air supply is connected via two openings with thread 1¼″.

These shut-off valves are suitable for water, air, viscous lubricants, oils, a range of solutions, some acids, and alkalis. Before use, verify the resistance of the valve's POM seals and bronze body against the chemical compounds in use.

Technical Specifications of Pneumatic Valve SV-HD-AA-22-40
Specification	Value
Pipeline connection thread	internal G 1½″
Flow capacity	Kv = 25
Valve materials	Bronze body, POM (polyacetal) seals
Operating medium	Water, air, hydraulic fluids, lubricants, oils, solutions that do not react with valve materials
Operating medium pressure	0 to 8 bar
Control	Pneumatic bi-directional control
Pneumatic piston diameter	40 mm
Pneumatic actuator pressure	2 to 8 bar
Pneumatic actuator connection	2 openings with internal thread G ¼″
