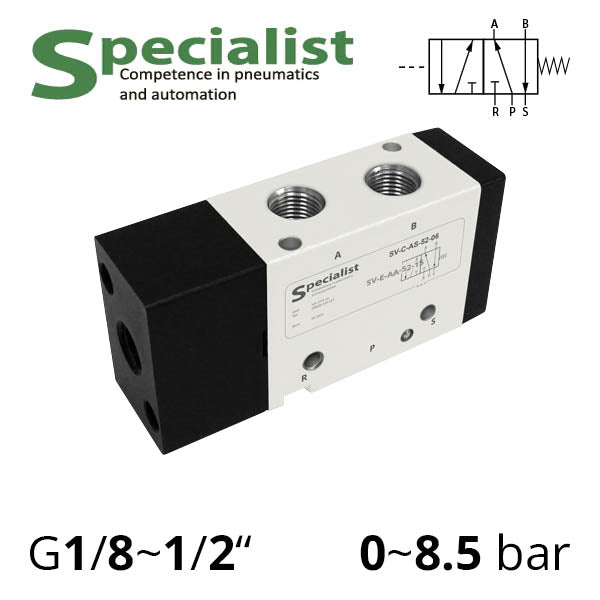

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Do you have any questions about the product?
We will be happy to answer them in messengers

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Name: Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control
Brand: Specialist
SKU: SV-C-AS-52-06
Price: 941.40 UAH
Availability: InStock

In Stock

Control

Двостороннє Одностороннє

Thread size

G 1/2 G 1/4 G 1/8 G 3/8

Model

Manufacturer

Specialist

from 941,40 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 8 variants


Name

Model Price Availability Qty

Action

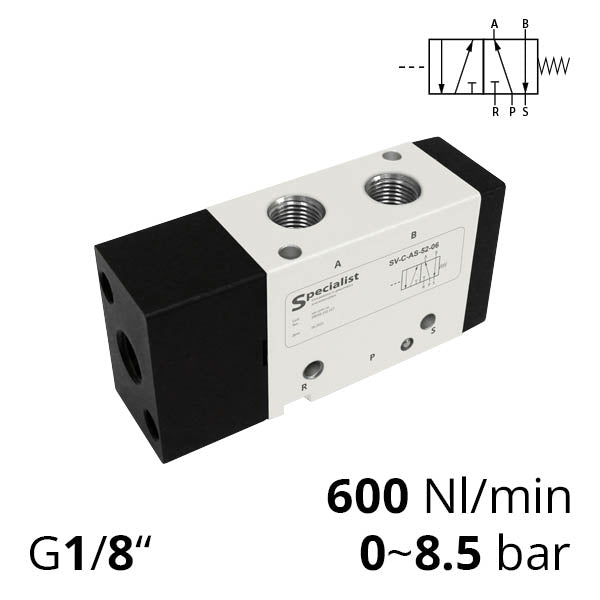

SV-C-AS-52-06

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Control=Одностороннє Thread size=G 1/8

SV-C-AS-52-06

941,40 UAH

In Stock

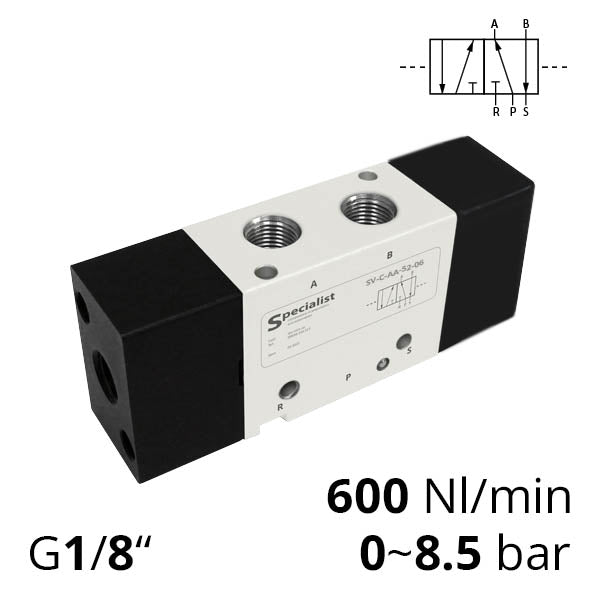

SV-C-AA-52-06

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Control=Двостороннє Thread size=G 1/8

SV-C-AA-52-06

1 296,12 UAH

In Stock

SV-C-AS-52-08

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Control=Одностороннє Thread size=G 1/4

SV-C-AS-52-08

941,40 UAH

In Stock

SV-C-AA-52-08

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Control=Двостороннє Thread size=G 1/4

SV-C-AA-52-08

1 296,12 UAH

In Stock

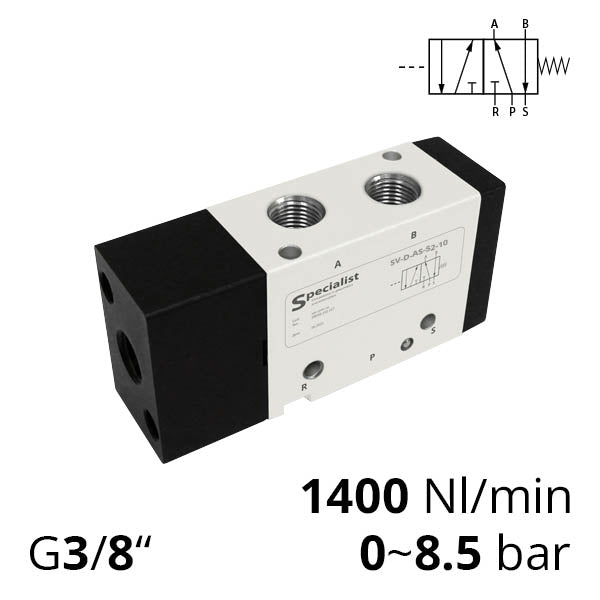

SV-D-AS-52-10

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Control=Одностороннє Thread size=G 3/8

SV-D-AS-52-10

1 624,20 UAH

In Stock

SV-D-AA-52-10

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Control=Двостороннє Thread size=G 3/8

SV-D-AA-52-10

1 932,84 UAH

In Stock

SV-E-AS-52-15

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Control=Одностороннє Thread size=G 1/2

SV-E-AS-52-15

2 055,78 UAH

In Stock

SV-E-AA-52-15

Pneumatic distributors 5/2 series SV-C, SV-D, SV-EE with pneumatic control

Control=Двостороннє Thread size=G 1/2

SV-E-AA-52-15

2 055,78 UAH

In Stock

Technical specifications

Thread

G 1/2", G 1/4", G 1/8", G 3/8"

Управління

Двостороннє, Одностороннє

Description

5/2 valves are most commonly used for controlling pneumatic cylinders with a double-sided control method. Operating air pressure — from 0 to 8.5 bar. Switching the state and position of this valve is done using one or two air signals:

"AS" in the product code (SKU) indicates a valve with one air signal. It is monostable, as in the absence of a control air signal, the return spring holds it in a specific position (pressurising air at output A);
"AA" indicates a valve with two air signals. It is bistable, as it remains in its last position in the absence of a control signal (pressurising air at output A or B) until a new air signal arrives to change the position.

When ordering, the customer must select the required connection thread size — G1/8″, G1/4″, G3/8″ or G1/2″.

5/2 valves have five main connection lines. The ports are marked:

P — for air supply
A — first output
B — second output
R1 — exhaust to atmosphere from first output
R2 — exhaust to atmosphere from second output

Additionally, there is a 1/8″ port on the side end for connecting the control signal of compressed air. Valves with double-sided control have two such ports.

The 5/2 valve can occupy two positions:

compressed air is supplied from the inlet to the first outlet, the pressure from the second outlet is released as the output is connected to the atmosphere through the exhaust port;
compressed air is supplied to the second output, air is exhausted from the first output through the exhaust port, atmospheric pressure.

You can explore our other 5/2 valves, to choose the best option.
