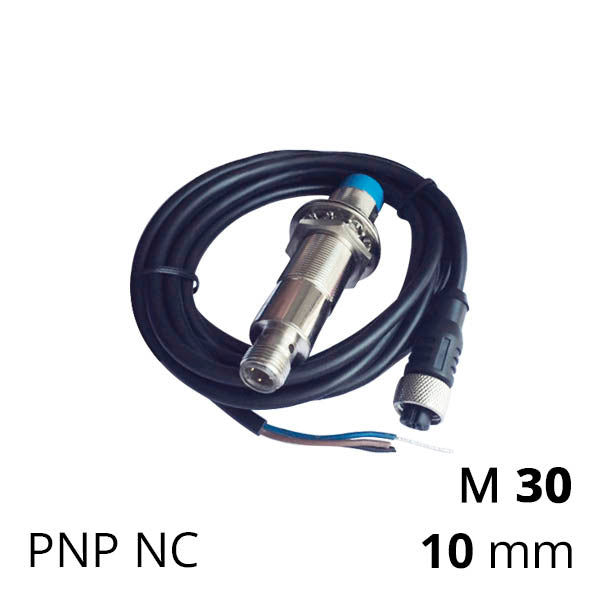

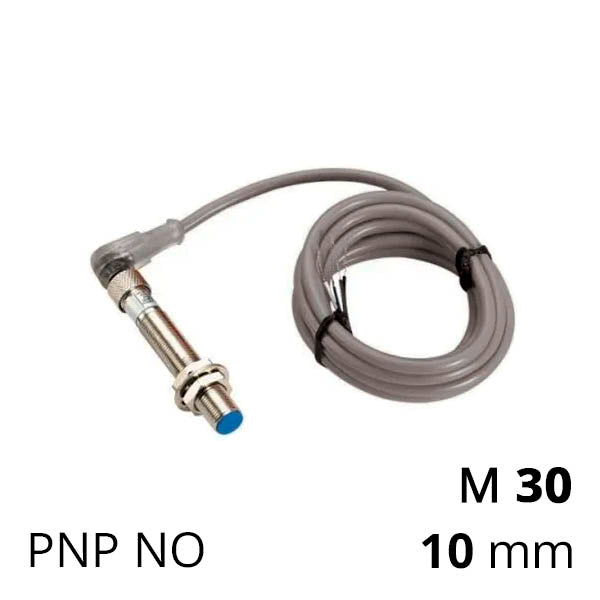

Inductive proximity sensor PNP, M30, distance up to 10 mm (TKI/TKL series)

Do you have any questions about the product?
We will be happy to answer them in messengers

Inductive proximity sensor PNP, M30, distance up to 10 mm (TKI/TKL series)

Name: Inductive proximity sensor PNP, M30, distance up to 10 mm (TKI/TKL series)
Brand: Specialist
SKU: SPLC-TKI/TKL-30P10C/30PC10C
Price: 831.90 UAH
Availability: BackOrder

On order

Type of transistor output

PNP NC PNP NO

Роз'єм

Кутовий Прямий

Model

SPLC-TKI/TKL-30P10C/30PC10C

Manufacturer

Specialist

1 203,38 UAH

-30%

from 831,90 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SPLC-TKI-30P10C

Inductive proximity sensor PNP, M30, distance up to 10 mm (TKI/TKL series)

Type of transistor output=PNP NO Роз'єм=Прямий

SPLC-TKI-30P10C

1 203,38 UAH 831,90 UAH

Pre-Order

SPLC-TKL-30P10C

Inductive proximity sensor PNP, M30, distance up to 10 mm (TKI/TKL series)

Type of transistor output=PNP NO Роз'єм=Кутовий

SPLC-TKL-30P10C

1 203,37 UAH 831,90 UAH

Pre-Order

SPLC-TKI-30PC10C

Inductive proximity sensor PNP, M30, distance up to 10 mm (TKI/TKL series)

Type of transistor output=PNP NC Роз'єм=Прямий

SPLC-TKI-30PC10C

1 203,38 UAH 831,90 UAH

Pre-Order

SPLC-TKL-30PC10C

Inductive proximity sensor PNP, M30, distance up to 10 mm (TKI/TKL series)

Type of transistor output=PNP NC Роз'єм=Кутовий

SPLC-TKL-30PC10C

1 203,37 UAH 831,90 UAH

Pre-Order

Technical specifications

Transistor output type

PNP NC, PNP NO

Роз'єм

Кутовий, Прямий

Delivery time

60 днів

Description

Contactless inductive sensor 24 V direct current PNP-type SE-SEN-TKІ(L)-30P(C)10C is used for proximity detection, position control, counting, determining the speed of metal target objects. Switch-on distance for metals — up to 10 mm. This sensor model features a transistor and electronic components that withstand external loads up to 200 mA, high resistance to electromagnetic interference due to optimally selected frequency 100 Hz, moisture-resistant casing IP66, visible 360-degree light indication, round pin-3 or pin-4 connector for wire connection — high-quality three-wire signaling cable length 2 m included.

Technical specifications table of the magnetic-inductive proximity sensor SE-SEN-TKІ(L)-30P(C)10C
Output type	3-wire PNP NO or PNP NC
Detector	Metal detection (steel, stainless steel, chrome, nickel, copper, aluminium etc.)
Standard detection object	Iron plate 30×30×1 mm
Detection distance	Sn = 10 mm
Effective operational distance	from 0 to 8 mm
Frequency	≤100 Hz
Power supply	DC 10…30 Volts
Max. load	≤200 mA
Housing	Threaded cylindrical case M30
Connection	Cable length 2 meters
IEC Protection class	IP66

PNP Type BBI Sensor Connection Diagram
