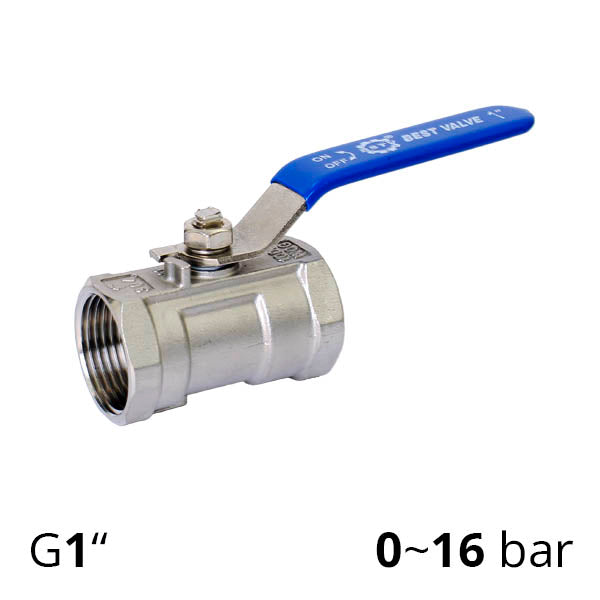

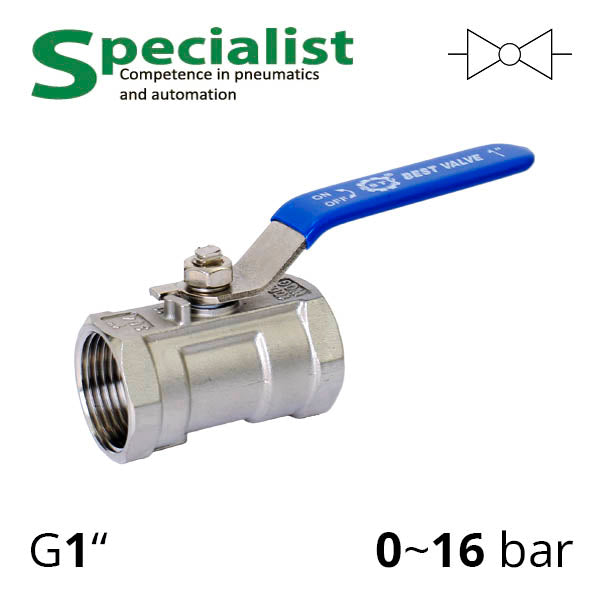

Coupling ball valve 1″ stainless steel DU 25 with handle SCBV-Q601-16FA-25

Do you have any questions about the product?
We will be happy to answer them in messengers

Coupling ball valve 1″ stainless steel DU 25 with handle SCBV-Q601-16FA-25

Name: Coupling ball valve 1″ stainless steel DU 25 with handle SCBV-Q601-16FA-25
Brand: Specialist
SKU: SCBV-Q601-16FA-25
Price: 595.14 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1

Model

Manufacturer

Specialist

from 595,14 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q601-16FA-25

Coupling ball valve 1″ stainless steel DU 25 with handle SCBV-Q601-16FA-25

Diameter of conditional passage=25 Thread size=G 1

SCBV-Q601-16FA-25

595,14 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Body material

SS201 stainless steel

Nominal diameter

TWO 25

Тип засувки

ball crane

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

Handled

Description

The threaded two-way ball valve 1 inch series SCBV-Q601-16FA-25 is used for controlling the flow of a liquid or gaseous substance in pipelines (close-open). The working medium can include cold and hot water, steam, lubricants, compressed air under high pressure, etc. The threaded ball valve has an internal thread diameter of G 1/4" (standard pipe cylindrical thread).

Features of inch-sized ball valves SCBV-Q601-16FA-25:

Type of valve: threaded, 1″ (DN 25 millimetres);
Body: solid cast (one-piece) stainless steel SS 201, ensuring high corrosion resistance and durability;
Ball: also made of stainless steel, but of grade AISI 304. The valve is a reduced bore (semi-bore), meaning the ball diameter is smaller than the pipeline;
Sealing: internal sealing elements are made of PTFE (polytetrafluoroethylene), providing high temperature resistance and reliability.
Manual drive: Equipped with a metal handle-lever covered in rubber for convenience. Quarter-turn operation for opening and closing the valve (do not leave in intermediate position).

Can be used domestically for plumbing and in the food, chemical, and oil refining industries. Quality Certified
