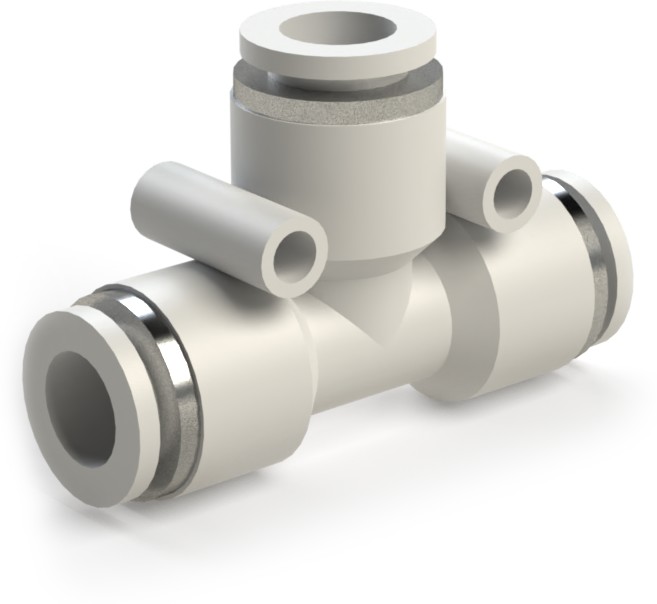

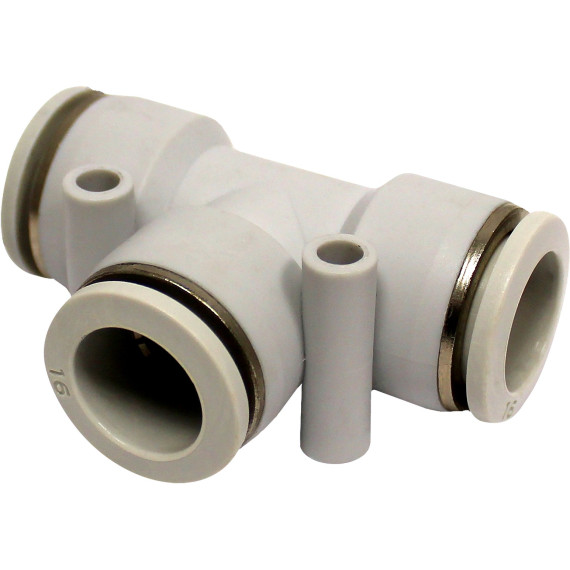

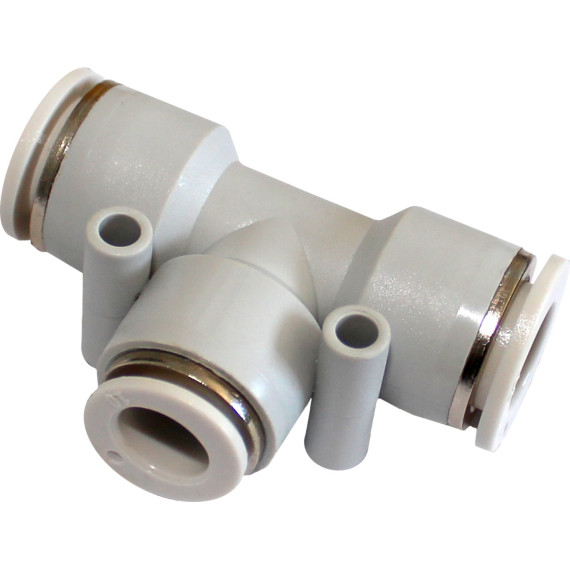

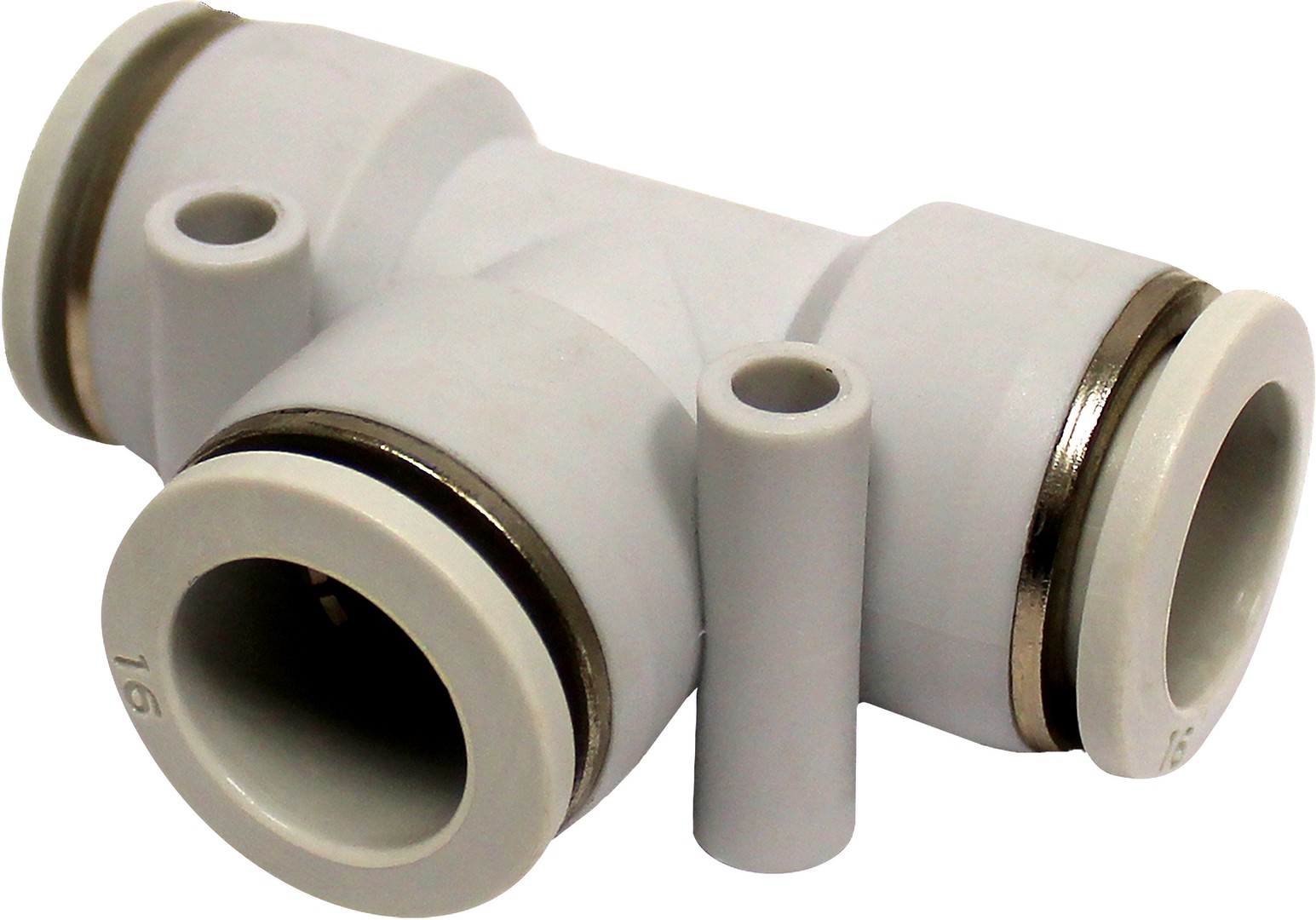

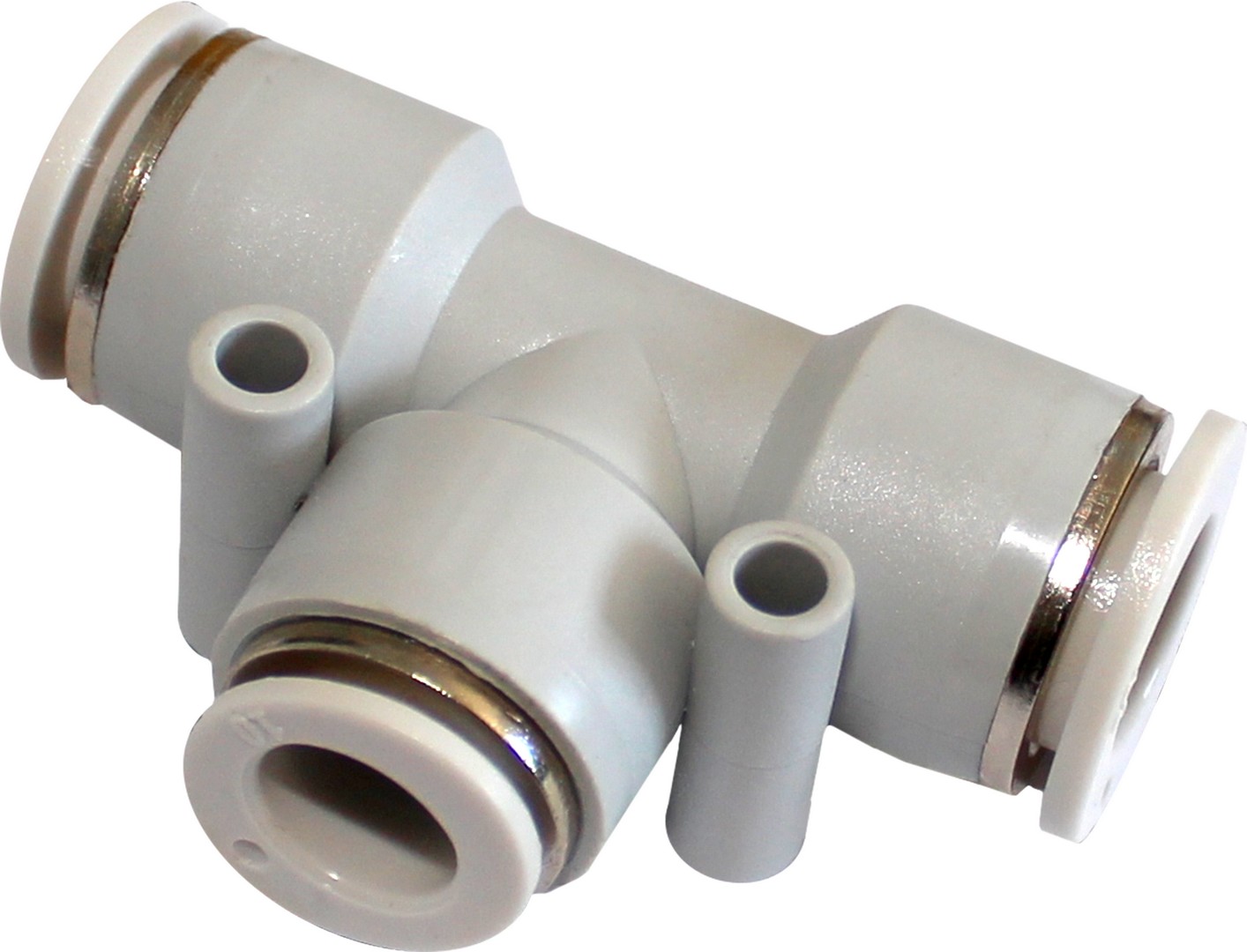

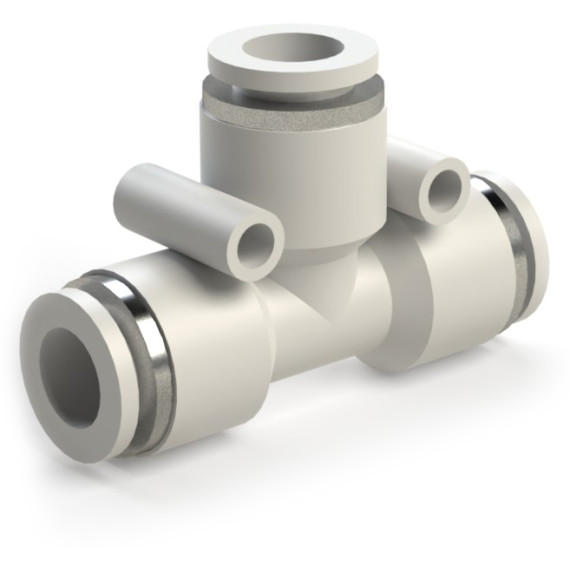

SF-EPE series plastic collet fitting tee T-shaped

The SF-EPE Series Plastic One-Touch Fitting is a Tee Union with a quick-release fitting suitable for polyamide, polyurethane, or polyethylene pneumatic tubes with outer diameters of 4, 6, 8, 10, 12, or 16 mm.

The body and collet of the SF-EPE fitting are made of technical plastic in white or light grey colour and have NBR rubber ring seals. Therefore, this plastic fitting can be used not only on pneumatic lines. It can also be used for conveying water, non-aggressive gases, and fluids to which NBR is resistant.

When used for compressed air, the Tee Union has a working pressure of up to 10 bar (1 MPa) and withstands temperatures from minus 10 to plus 60°C. These parameters may vary when using other operational media.

Advantages of SF-EPE

• The SF-EPE series Plastic Fitting Tees are higher quality than another series — SF-IPE, as they have better plastic density and higher product weight while maintaining the same dimensional size.
• The locking collet is one of the best types of quick-release fittings as it does NOT deform the end of the tube, allowing for multiple reuse.
• Using quick-release fittings saves time on equipment installation and maintenance.
