Operator control panel TouchWin OP320-A-S
In Stock
Product Code:
SPLC-OP320-A-S
Brand:
Specialist
5 077,62 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

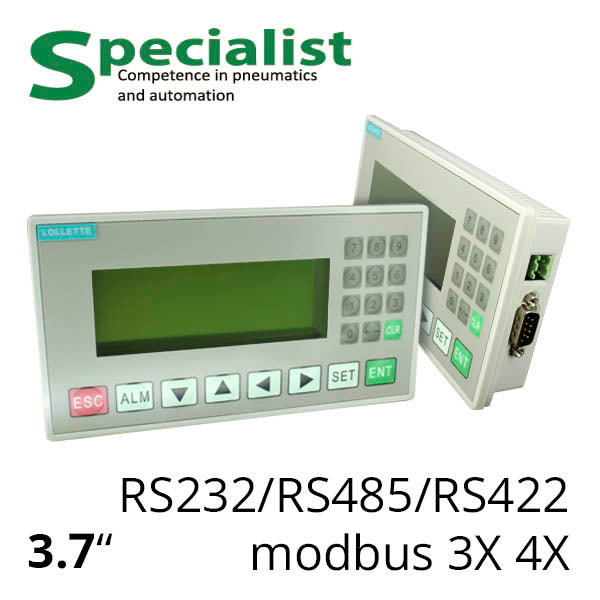

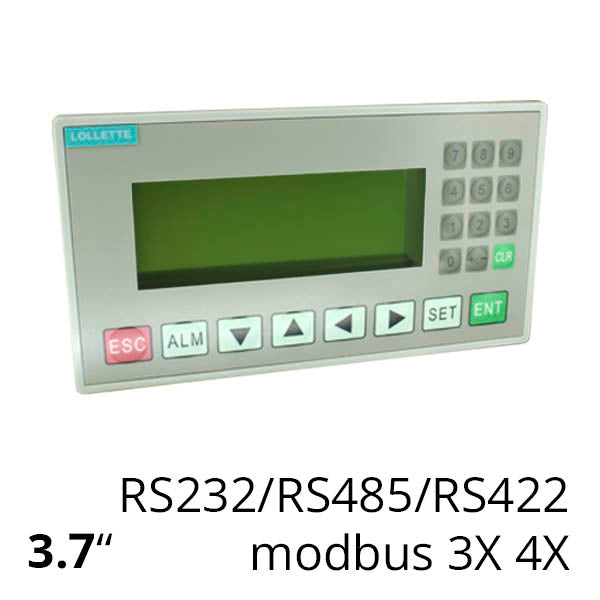

The graphical operator control panel model SPLC-OP320-A-S from TouchWin is an affordable and popular monochrome LCD screen 3.7 inches with a resolution of 192×64 dots and backlight, featuring 20 input/control keys. This operator display is designed for working with industrial logic controllers via RS232, RS485, RS422 interfaces, or modbus 3X 4X. It includes a built-in real-time clock.
-
Display:
- Type: Monochrome STN LCD with backlight (typically blue)
- Size: 3.7 inches
- Resolution: 192x64 pixels
- Brightness: approximately 60 cd/m²
-
Control:
- Buttons: 20 functional buttons, some of which can be programmed as digital keys.
-
Communication Interfaces:
- COM Ports: supports RS232/RS485/RS422 serial ports modbus 3X 4X
-
Memory:
- Flash ROM: 1 MB for storing program and data.
- SRAM: 1 KB for operational data.
-
Power Supply:
- Supply Voltage: 24 V DC
- Current Consumption: Maximum approximately 150 mA at 24 V (about 3-4 W)
-
Software:
- The panel is programmed using TouchWin software.
-
Additional Features (depending on model):
- Supports Modbus RTU communication protocol
- Capability to display dynamic text
- Alarm list function
- Password protection
- Built-in real-time clock (RTC)
