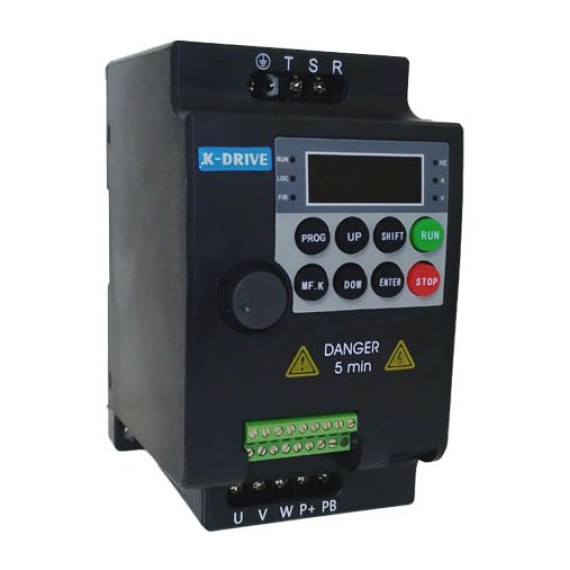

Vector frequency converter 1.5 kW, 1F-3F 220V (SPLC-KD100-2S-1.5G)

Name: Vector frequency converter 1.5 kW, 1F-3F 220V (SPLC-KD100-2S-1.5G)
Brand: Specialist
SKU: SPLC-KD100-2S-1.5G
Price: 8224.80 UAH
Availability: InStock

In Stock

Product Code:

SPLC-KD100-2S-1.5G

Brand:

Specialist

8 226,32 UAH

8 224,80 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar control

Output frequency

0.1 to 400 Hz

Output voltage

3ph 220V

Supply voltage

1ph 220V

Power

1.5 kW

Description

Compact vector frequency inverter 1.5 kW 220 Volt with efficient braking from series SPLC-KD100-2S-1.5G operates on single-phase input with voltage 220 V and is designed to control the speed of three-phase asynchronous motors 220 V. This frequency converter can switch between modes and control motors in a simple-to-configure voltage-frequency mode, or adhere to precise vector speed control with deviation less than 0.2%. If a PG extension card is purchased, the device can also precisely control torque. A feature of low-power frequency converters SPLC-KD100-2S-1.5G — the ability to connect an external braking resistor.

Table — Technical parameters of frequency converters SPLC-KD100-2S-1.5G
Input Voltage	1P 220 V
Output Voltage	3P 220 V
Output Power	1.5 kW
Output Frequency Range	from 0 to 600.0 Hz
Protection Degree EN 60529	IP20

Functions of frequency inverter SPLC-KD100-2S-1.5G:

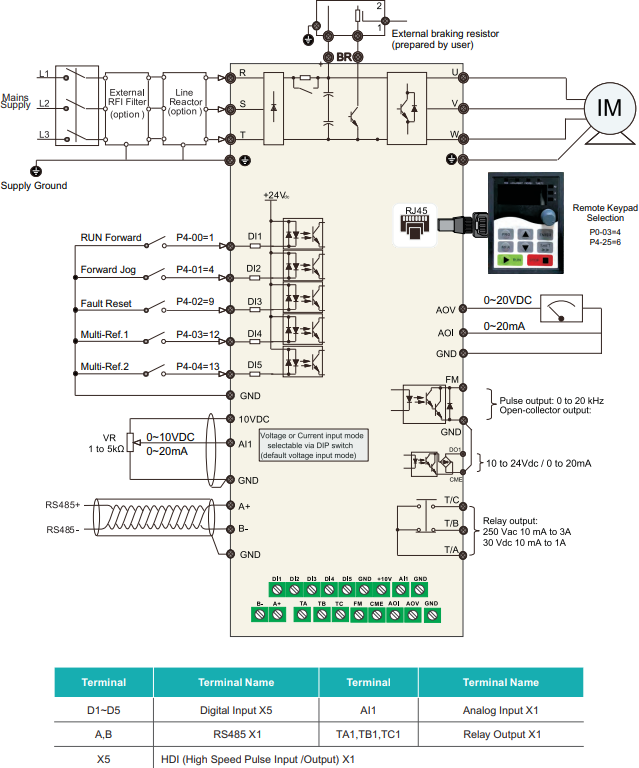

Configurable inputs and outputs:
- 5 discrete inputs
- 1 analogue input for a potentiometer (jumper position for current or voltage input)
- 1 analogue output 0…20 mA or 0…20 V DC
- 1 high-speed pulse output 0…20 kHz (open collector)
- 1 relay output
RS485 (Modbus) communication port
Built-in braking unit (manufacturer recommended resistor at 100 Ohms and 300 W). Acceleration and braking time up to 999 s, linear and S-curve graphs
P.I.D. control functions, time control, duration counter
Starting torque increase up to 30%
Overload capability 150% of rated current for not longer than 60 s
