Pneumatic distributor 5/2 with a lever of the SV-TSV series

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Pneumatic distributor 5/2 with a lever of the SV-TSV series

Name: Pneumatic distributor 5/2 with a lever of the SV-TSV series
Brand: Specialist
SKU: SV-TSV-H-52-06
Price: 696.48 UAH
Availability: InStock

In Stock

Type

без пружини повернення з пружиною повернення

Thread size

G 1/4 G 1/8

Model

Manufacturer

Specialist

from 696,48 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SV-TSV-H-52-06

Pneumatic distributor 5/2 with a lever of the SV-TSV series

Type=без пружини повернення Thread size=G 1/8

SV-TSV-H-52-06

696,48 UAH

In Stock

SV-TSV-HS-52-06

Pneumatic distributor 5/2 with a lever of the SV-TSV series

Type=з пружиною повернення Thread size=G 1/8

SV-TSV-HS-52-06

696,48 UAH

In Stock

SV-TSV-H-52-08

Pneumatic distributor 5/2 with a lever of the SV-TSV series

Type=без пружини повернення Thread size=G 1/4

SV-TSV-H-52-08

721,44 UAH

In Stock

SV-TSV-HS-52-08

Pneumatic distributor 5/2 with a lever of the SV-TSV series

Type=з пружиною повернення Thread size=G 1/4

SV-TSV-HS-52-08

721,44 UAH

In Stock

Technical specifications

Thread

G 1/4", G 1/8"

Тип

без пружини повернення, з пружиною повернення

Description

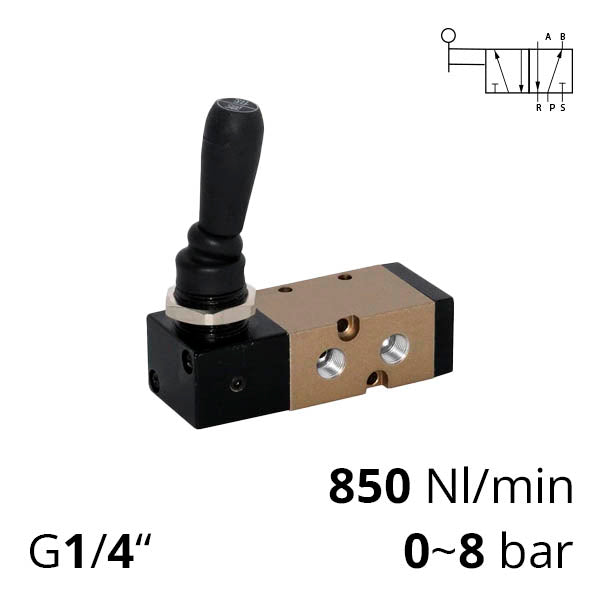

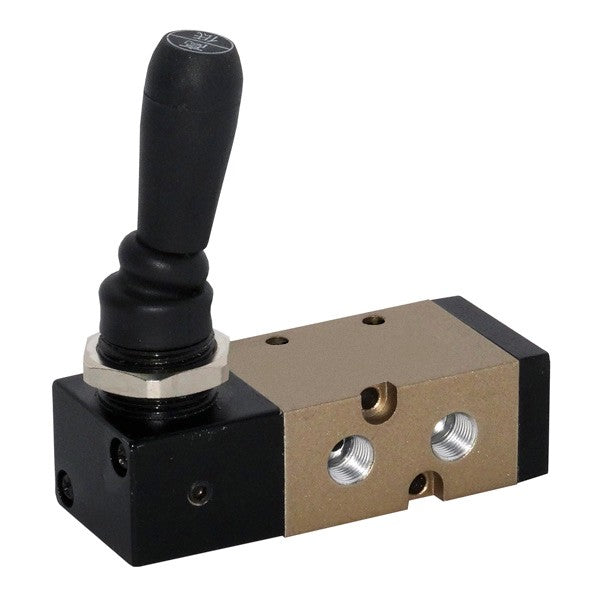

Pneumatic valves SV-TSV-H(S)-52 are equipped with convenient manual lever control (joystick) designed to work with compressed air at pressure from 0 to 8 bar. This model is used in the RUTA bus door mechanism and can also control any double-acting pneumatic actuators with air consumption no more than 1500 L/min.

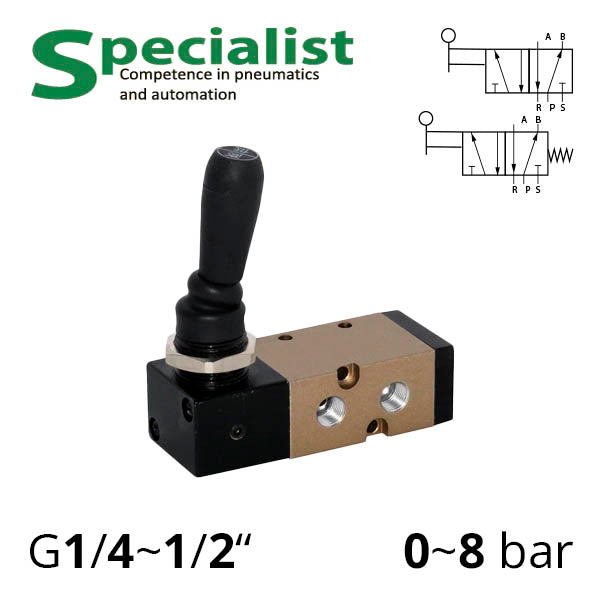

Upon ordering, the customer must select handle size and lock. Five-way, two-position pneumatic distribution valves are supplied with G 1/8″ or 1/4″ (inch) thread. They have two manual control options suited to operation:

without spring return (bistable), maintaining the lever's position until switched by the operator. Noted in code as “SV-TSV-H”;
with spring return (monostable), where the valve returns to initial state when the lever is released. Product code contains “SV-TSV-HS”.

You may also be interested in our pneumatic cylinders for door opening mechanisms.
