Vector frequency converter 7.5 kW, 3F-3F 380V (SPLC-HS320-7R5G4)

Do you have any questions about the product?
We will be happy to answer them in messengers

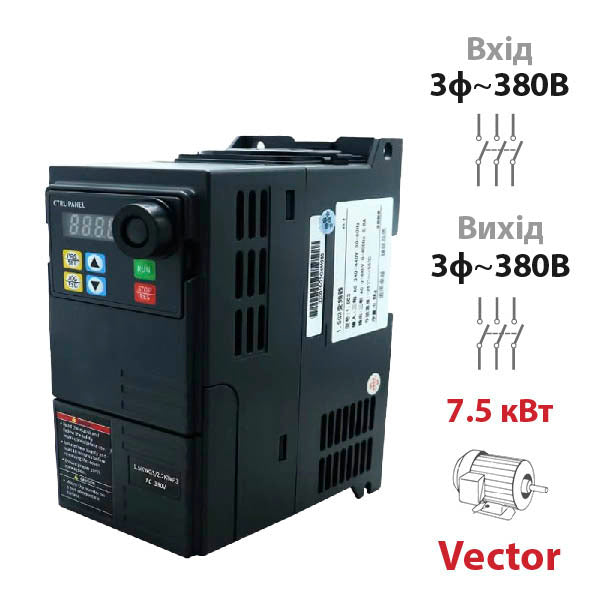

Vector frequency converter 7.5 kW, 3F-3F 380V (SPLC-HS320-7R5G4)

Name: Vector frequency converter 7.5 kW, 3F-3F 380V (SPLC-HS320-7R5G4)
Brand: Specialist
SKU: SPLC-HS320-7R5G4
Price: 15601.56 UAH
Availability: InStock

In Stock

Product Code:

SPLC-HS320-7R5G4

Brand:

Specialist

20 802,40 UAH

-25%

15 601,56 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar and vector control

Output frequency

0 to 400 Hz

Output voltage

3ph 380V

Supply voltage

3ph 380V

Power

7.5 kW

Description

Vector frequency converter 3-phase SPLC-HS320-7R5G4 series HS320 is designed for autonomous control of the rotation of a small power three-phase asynchronous motor — 380 V, up to 16.1 A, up to 7.5 kW (7500 W). The vector operating mode allows this frequency and voltage inverter to be applied for practically any type of pumps, conveyor belts, and machines.

The model SPLC-HS320-7R5G4 has a housing with protection IP20 intended for mounting on a DIN rail in a motor control cabinet (IP56) for protection against dust and moisture. The removable control panel, located on the front panel of the cabinet, facilitates the inverter setup.

Table — Main technical parameters of the 7500w inverter model SPLC-HS320-7R5G4
Input Voltage	3ph 380 Volts
Output Voltage	3ph 380 V
Output Current	16.1 Amps
Output Power	7.5 kW
Output Frequency Range	from 0 to 400.0 Hz
Protection Degree EN 60529	IP20

Features of SPLC-HS320-7R5G4

This is the most affordable vector frequency inverter for 7,5 kW. It supports all necessary functions, but compared to other series, it has lower memory capacity: 7 preset values for a multi-speed program or step-by-step instruction; a time setting range up to 999.9 sec (~17 min), lacks RS-485.

One of the advantages of the SPLC-HS320-7R5G4 inverter is a higher carrier frequency — from 2 to 16 kHz (adjustable). This allows for better electromagnetic compatibility, increasing the carrier frequency for quieter drive operation.
