SF-MPY Series Y-Tee Bronze Fitting

Name: SF-MPY Series Y-Tee Bronze Fitting
Brand: Specialist
SKU: SF-MPY 4
Price: 418.08 UAH
Availability: InStock

In Stock

Tube O.D.

12 mm 10 mm 8 mm 6 mm

Model

Manufacturer

Specialist

from 79,14 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SF-MPY 12

SF-MPY Series Y-Tee Bronze Fitting

Tube O.D.=12 mm

SF-MPY 12

418,08 UAH

In Stock

SF-MPY 10

SF-MPY Series Y-Tee Bronze Fitting

Tube O.D.=10 mm

SF-MPY 10

283,56 UAH

In Stock

SF-MPY 8

SF-MPY Series Y-Tee Bronze Fitting

Tube O.D.=8 mm

SF-MPY 8

274,32 UAH

In Stock

SF-MPY 6

SF-MPY Series Y-Tee Bronze Fitting

Tube O.D.=6 mm

SF-MPY 6

79,14 UAH

In Stock

Technical specifications

Tube O.D.

6 mm, 8 mm, 10 mm, 12 mm

Connection type

Collet fitting

Body material

Nickel-plated bronze

Inlet pressure

16 bar

Variations

The connector is straight through

Fitting type

Tee Y

Description

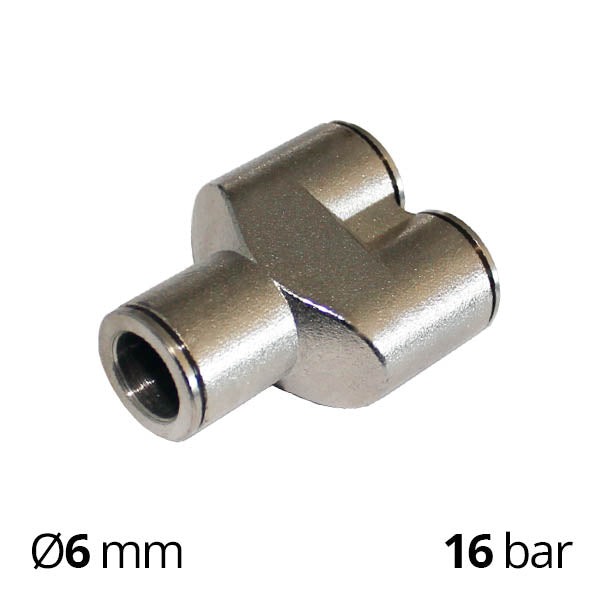

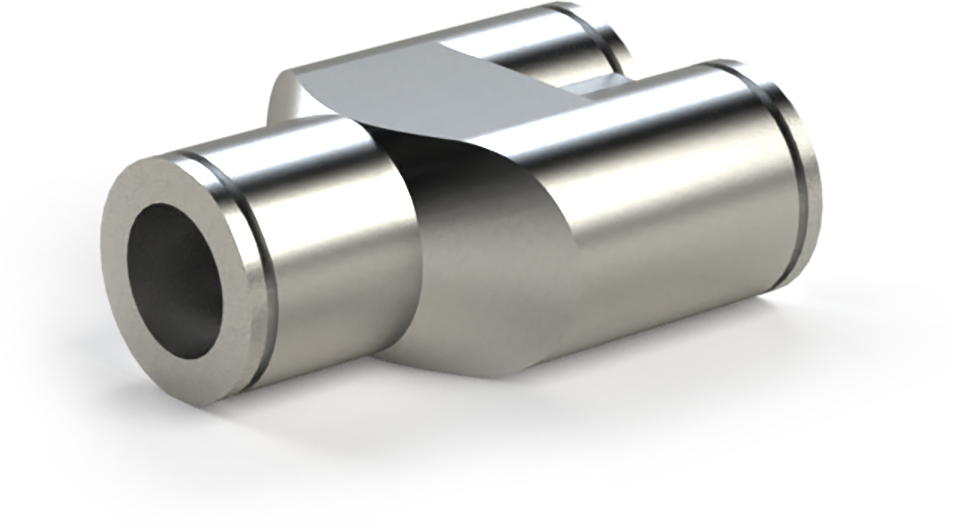

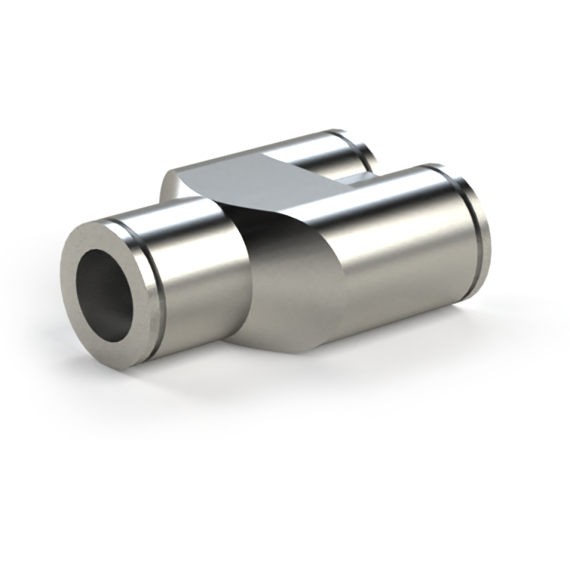

SF-MPY Series Bronze Compression Fitting is a Y-Union with push-in fittings for pneumatic tubes with outer diameters of 4, 6, 8, 10, or 12 mm on all sides.

The metal fitting is made of nickel-plated bronze. An NBR sleeve is used in the ferrule for sealing the pipeline. The metal fitting is designed for use with compressed air at a pressure of up to 16 bar (1.6 MPa).
