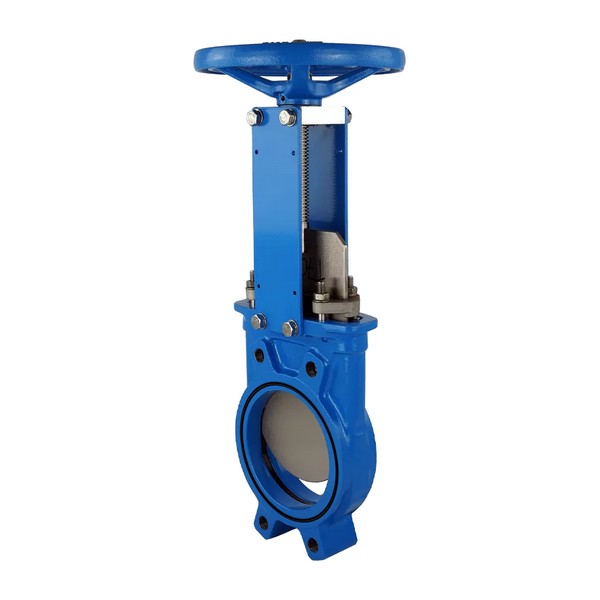

Knife gate latch DU 50 cast iron SCBF-PZ673X-10JC-50 with flywheel

Model SCBF-PZ673X-10JC-50-M is a cast iron wafer wedge gate valve DN50 PN10 with rising stem and handwheel for manual closure. This bidirectional knife gate DN 50 made of cast iron is designed for use with media under no pressure or pressure of 9.8 bar and temperatures up to 80°C, including for gas, liquids, and bulk materials.

The company “Specialist” offers manufacture of knife gate valves based on series from the online store, but with necessary customer modifications: rubber wedge covering, stainless steel, more compact without a rising stem, with high-temperature rubber EPDM or Viton. We will select materials for your working environment

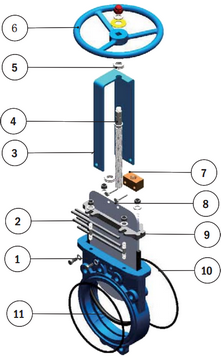

Design features of the standard gate SCBF-PZ673X-10JC-50-M with DN50

• Reinforced NBR. Rubber seal reinforced with steel wire around the entire seat under the wedge — helps to maintain shape, increase service life, and tightness.
• Rising Stem. Acts as an indicator of the gate valve DN 50 position and provides a more reliable construction.
• WCB. Although WCB is referred to as cast iron, it is actually carbon steel — it is more impact-resistant and can withstand high pressure, which is important for industrial shut-off valves.
• Standard flange connection: PN10, PN16, 10K, 150LB, TABLE D, DIN.
• Operating pressure: 10 kg/cm² for DN50. In other units, it's 9.8 bar (10 bar) or 0.98 MPa (1 MPa). Designation PN 10.
