Vector frequency converter 3 kW, 3F-3F 380V (SPLC-HS320-3R0G4)

Do you have any questions about the product?
We will be happy to answer them in messengers

Vector frequency converter 3 kW, 3F-3F 380V (SPLC-HS320-3R0G4)

Name: Vector frequency converter 3 kW, 3F-3F 380V (SPLC-HS320-3R0G4)
Brand: Specialist
SKU: SPLC-HS320-3R0G4
Price: 9251.34 UAH
Availability: InStock

In Stock

Product Code:

SPLC-HS320-3R0G4

Brand:

Specialist

12 334,73 UAH

-24%

9 251,34 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar and vector control

Output frequency

0 to 400 Hz

Output voltage

3ph 380V

Supply voltage

3ph 380V

Power

3 kW

Description

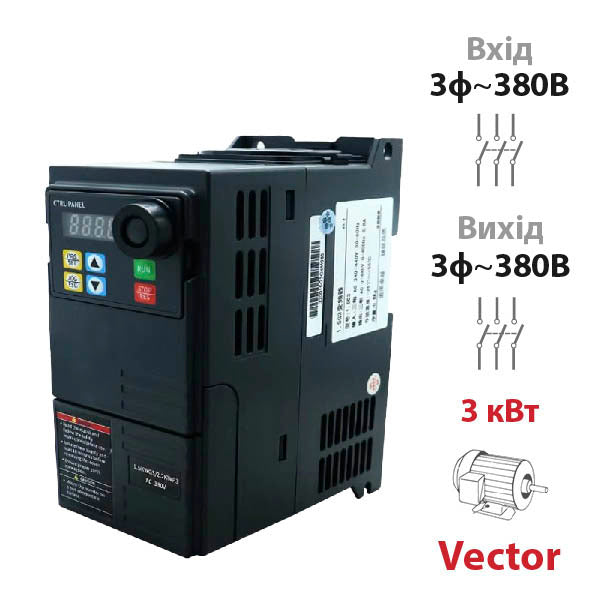

Vector inverter 3-phase SPLC-HS320-3R0G4 series HS320 designed for autonomous speed control of a small power three-phase asynchronous motor — 380 V, up to 7.1 A, up to 3 kW (3000 W). Vector control mode allows using this frequency and voltage inverter for virtually any type of pumps, conveyor belts, and machinery.

Model SPLC-HS320-3R0G4 has an IP20 housing suitable for installation on a DIN rail in an motor control cabinet (IP56) for protection against dust and moisture. A removable control panel located on the front of the cabinet simplifies inverter setup.

Table — Main technical parameters of the 3000w inverter model SPLC-HS320-3R0G4
Input Voltage	3Ph 380 Volts
Output Voltage	3Ph 380 V
Output Current	7.1 Amps
Output Power	3 kW
Output Frequency Range	from 0 to 400.0 Hz
EN 60529 Protection Level	IP20

Features of SPLC-HS320-3R0G4

This is the most affordable vector frequency inverter for 3 kW. It supports all necessary functions, but compared to other series, it has less memory capacity: 7 preset values for a multi-speed program or step-by-step instruction; time setting range up to 999.9 s (~17 min), lacks RS-485.

One of the advantages of the SPLC-HS320-3R0G4 inverter is higher carrier frequency — from 2 to 16 kHz (can be configured). This allows for better electromagnetic compatibility, increasing carrier frequency for quieter drive operation.
