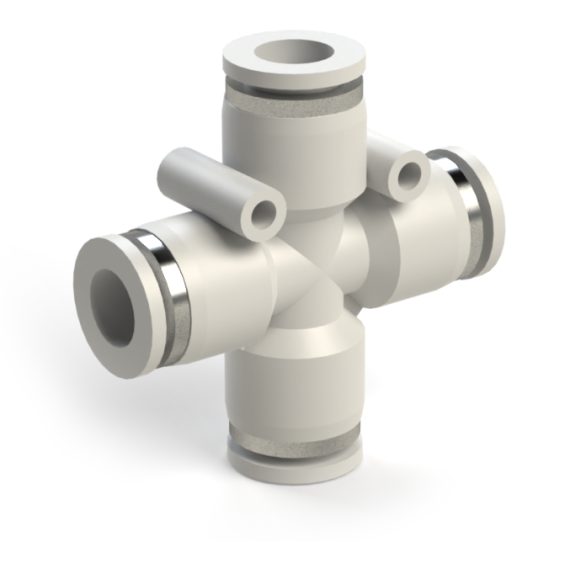

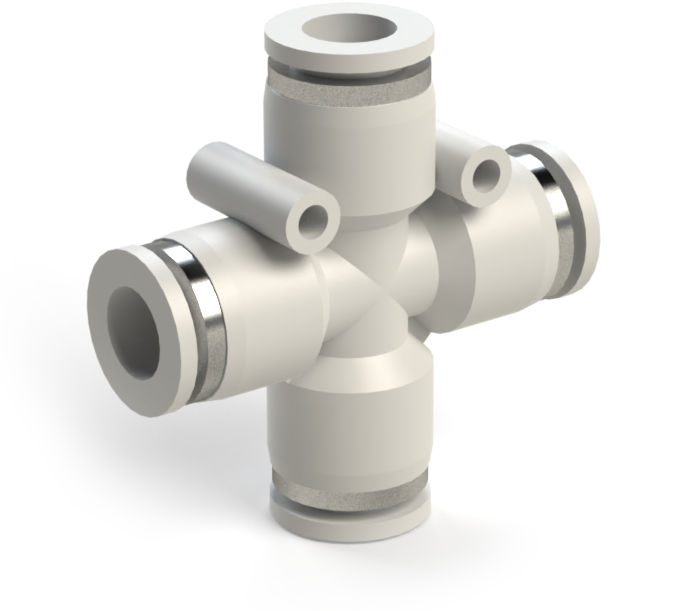

Plastic collet fitting SF-EPZA

The plastic fitting of the SF-EPZA series is a cross, cross-shaped pneumatic fitting with quick connection for polyamide, polyurethane, or polyethylene pneumatic tubes with an outer diameter of 4, 6, 8, or 12 mm.

The body and chuck of the SF-EPZA fitting are made of technical plastic in white or light grey and have ring seals made of NBR rubber. Therefore, this plastic fitting can be used not only for pneumatic lines. It can also be applied for transporting water, non-aggressive gases, and flowing liquids, to which NBR is resistant, through a pipeline.

When used for compressed air, the connector has a working pressure up to 10 bar (1 MPa) and withstands temperatures from minus 10 to plus 60°C. These parameters may differ when using other working mediums.

Advantages of SF-EPZA

• the plastic tee fittings of the SF-EPZA series have a high plastic density and greater product weight with the same dimensions, compared with black Chinese fittings;
• the chuck is one of the best types of quick connectors, which does NOT deform the end of the tube, allowing it to be used repeatedly;
• using quick-connect fittings saves time on installation and maintenance of equipment.
