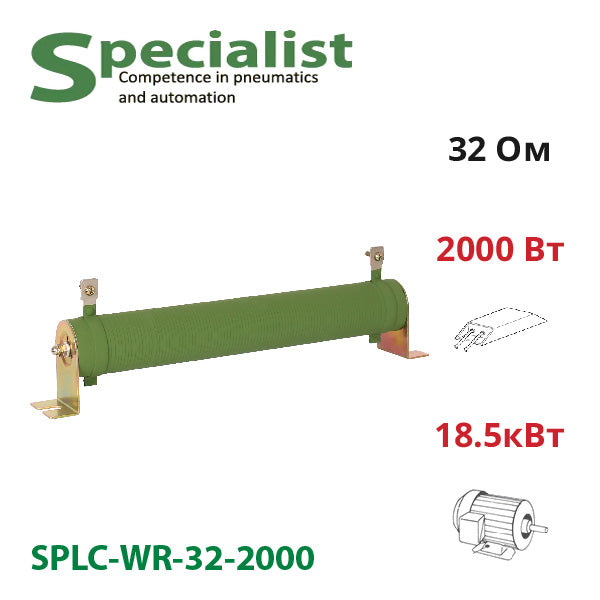

Braking resistor 32 Ohm 2000 W SPLC-WR-32-2000 for frequency converter 18.5 kW
In Stock
Product Code:
SPLC-WR-32-200
Brand:
Specialist
1 856,58 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The ceramic resistor model SPLC-WR-32-2000 is most often used as a braking resistor for a 18.5 kW variable frequency drive for three-phase motors 380 V — selection should be based on the manufacturer's recommended characteristics for the frequency converter and the calculated braking power of the motor. This wire-wound resistor has a resistance of 32 Ohm and a power of 2000 W.
Braking resistors of the WR series are made from a ceramic tube onto which wire from iron-chrome-aluminium alloy (by default) or nichrome (custom order) is wound. The ceramic body serves as an insulator and heat dissipator, resistant to high temperatures and corrosion. The wire has high electronic conductivity, allowing effective heat dissipation generated during motor braking.
| Model | SPLC-WR-32-2000 |
|---|---|
| Rated Power | 2000 W |
| Rated Resistance | 32 Ohm |
| Resistance Tolerance | ±5% (type J) ±10% (type K) |
| Nominal Load | 50-200 W, surface temperature less than 275°C; over 200 W — 350°C |
| Short-term Overload | no visible damage ΔR ≤ ±(5%R + 0.05 Ohm) |
| Insulation Resistance | ΔR ≥ 1000 MOhm 1 min, DC 1000 V |
| Withstanding Voltage | No visible damages, no arc discharge ΔR ≤ ±(0.1%R + 0.05 Ohm), AC 3000 V, 5 s |
| Terminal Strength | no visible damage, 45 N 30 s |
| Material | 0Cr25AL5/Cr20Ni80 |
| Protection Class | IP00 |
| Storage Temperature | from -40 to 50°C (no moisture) |
