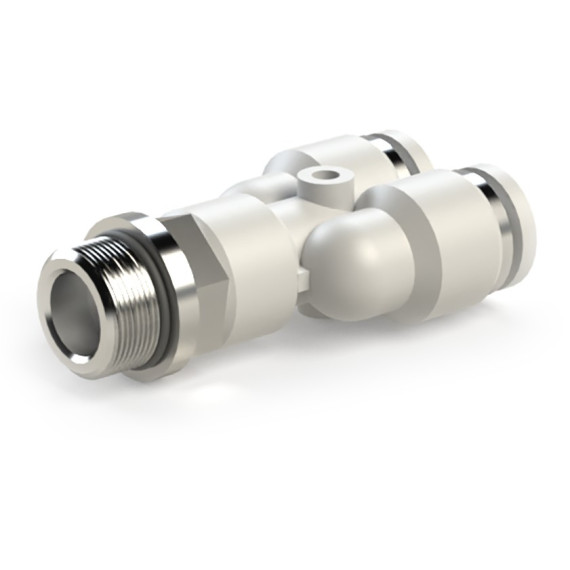

Name: SF-EPX plastic collet fitting
Brand: Specialist
SKU: SF-EPX 4-M5
Price: 70.14 UAH
Availability: InStock

Technical specifications

Tube O.D.

4 мм, 6 мм, 8 мм, 10 мм, 12 мм

Connection type

Collet fitting, With external thread

Thread

G1/2", G1/4", G1/8", G3/8", М5

Body material

Plastic

Inlet pressure

9.5 bar

Variations

Union

Fitting type

Tee Y

Description

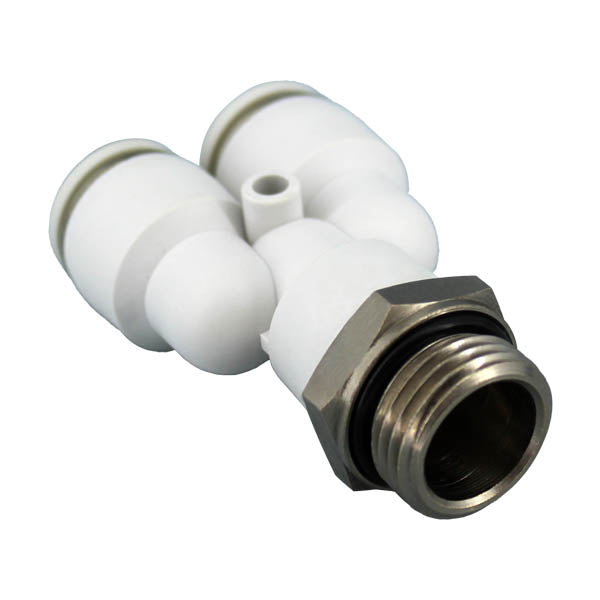

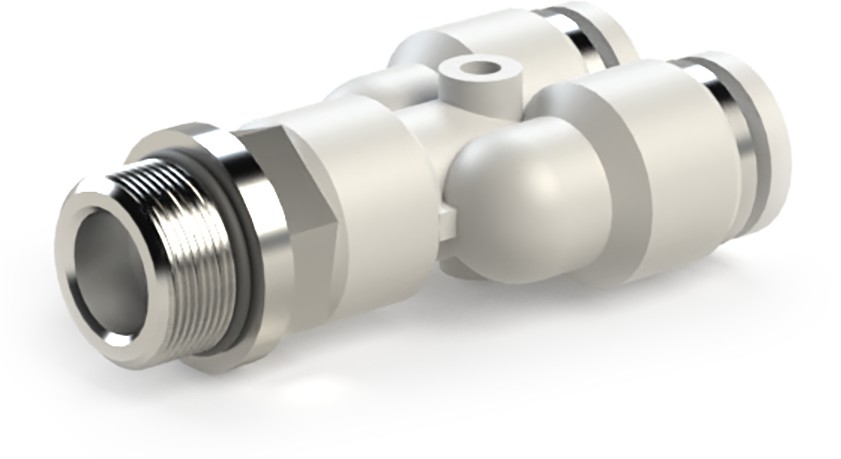

The plastic collet fitting SF-EPX is a Y-shaped connector with a collet clamp, designed for operation with compressed air under pressure up to 9.5 bar or with water, or other gases or liquids compatible with the fitting material. Operating temperature range for pneumatic systems is from minus 10 to plus 60 °C.

The body and collet insert of the fitting are made from white technical plastic and are sealed with an NBR gasket. The collets for 2 tubes with identical outer diameters of 4, 6, 8, 10 or 12 mm provide a quick-release connection for the tee. The collet clamp securely holds but does NOT deform the flexible pneumatic tube made of polyurethane, polyamide, or polyethylene. Therefore, this quick-release fitting can be used repeatedly.

External threaded connection is metric M5 or English standard pipe cylindrical G1/8", 1/4", 3/8" or 1/2". The threaded insert is made of bronze, coated with a layer of nickel. Nickel plating makes it harder, more wear-resistant, and more durable. An NBR sealing ring is used for connection tightness.

When working with other media, the operating parameters (pressure and temperature) may differ from those specified for compressed air.
