Scalar frequency converter 0.4 kW, 1F-3F 220V (SPLC-US-B-0R4G2)

Do you have any questions about the product?
We will be happy to answer them in messengers

Scalar frequency converter 0.4 kW, 1F-3F 220V (SPLC-US-B-0R4G2)

Name: Scalar frequency converter 0.4 kW, 1F-3F 220V (SPLC-US-B-0R4G2)
Brand: Specialist
SKU: SPLC-US-B-0R4G2
Price: 1919.28 UAH
Availability: InStock

In Stock

Product Code:

SPLC-US-B-0R4G2

Brand:

Specialist

2 952,56 UAH

-34%

1 919,28 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar control

Output frequency

0.0 to 300 Hz

Output voltage

3ph 220V

Supply voltage

1ph 220V

Power

0.4 kW

Description

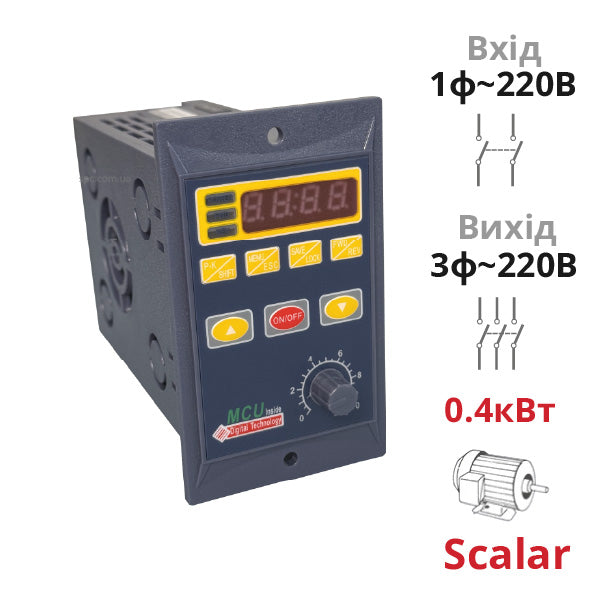

Scalar inverter for electric motor 0.4 kW (400 W) model SPLC-US-B-0R4G2 is an affordable, low-power frequency inverter suitable for controlling the speed of small fans, pumps, conveyor belt speeds, and other control objects that use three-phase asynchronous motors 220V with power up to 400W. For power, the frequency inverter SPLC-US-B-0R4G2 connects to a household single-phase network 220 Volts.

Table — Main technical specifications of inverter SPLC-US-B-0R4G2
Input Voltage	1Ph 220 V
Output Voltage	3Ph 220 V
Output Power	up to 0.4 kW
Output Frequency Range	from 0 to 300.0 Hz
Protection Rating EN 60529	IP20
Cooling	Built-in fan

Frequency drive regulation 400 W through SPLC-US-B-0R4G2

The inverter allows for motor speed regulation 0.4 kW by setting the desired frequency, which can be adjusted using potentiometer knobs, the device menu, or via PID control with feedback (e.g., a pressure/level/temperature sensor with an analogue signal connected to the inverter 0-5V).
