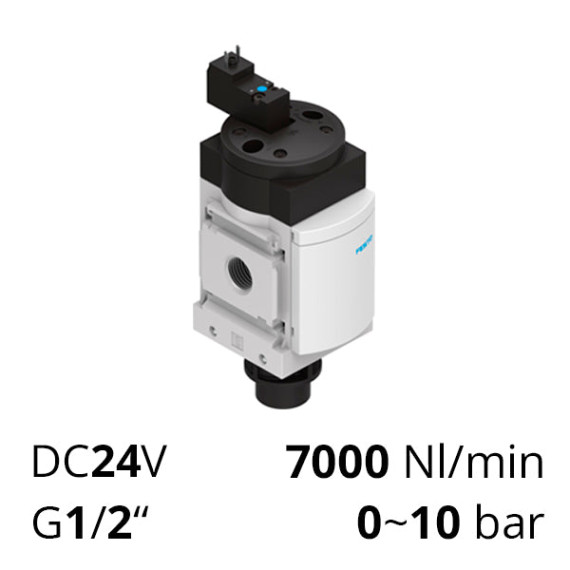

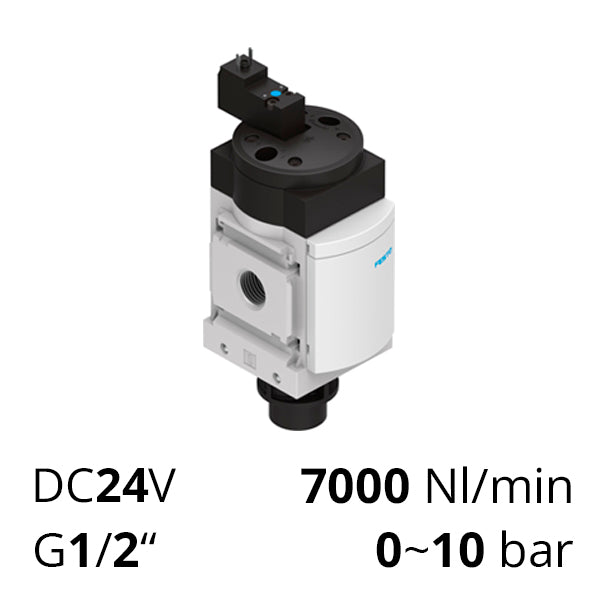

Shut-off valve with electromagnetic control Festo MS6-EE-1/2-10V24 with thread G1/2″

Shut-off Valve Festo Series MS6-EE-1/2-10V24 is an electromagnetic distributor designed for rapid switching on and off of compressed air flow in pneumatic systems. This valve is normally closed (NC), which means it blocks air flow in its normal state and opens only when a control signal is provided.

The electromagnetic shut-off valve Festo series MS6-EE-1/2-10V24 features a G1/2″ thread and a standard nominal flow rate of 7000 l/min, allowing efficient air flow control within an operating pressure up to 10 bar.

Thanks to its monostable design, the valve returns to its initial position after the control signal is removed, ensured by a mechanical spring. The flow direction in this device is non-reversible, guaranteeing stable operation in the specified direction.

Main Features of the Festo Valve MS6-EE-1/2-10V24

• Type: Electromagnetic Distributor, 3/2 NC
• Connection: G1/2” Thread
• Inlet Working Pressure: 10 bar
• Max Standard Flow Rate: 7000 l/min
• Power Supply: 24V DC, Coil Power 2.5 W
• Protection Class: IP65
• Body Material: Aluminium Alloy
• Seal Material: NBR (Nitrile Butadiene Rubber)

Advantages of Buying Festo Shut-off Valves at Specialist Online Store

Specialist store, as an official distributor of Festo products, offers shut-off valves with guaranteed original quality at low prices. Thanks to the convenient location of warehouses in Lviv and Dnipro, we ensure quick order processing and delivery all over Ukraine. This means your order will be delivered on time, regardless of your location.

We also offer the option to pay by cash on delivery through "Nova Poshta" service, allowing you to pay for the goods only after receiving and checking their quality. For order details and professional consultation, you can contact our managers.

Applications of Festo Shut-off Valves:

The valve from Festo is widely used in air preparation and distribution systems at industrial enterprises where high reliability and durability of components are required. It is also suitable for use in various fields, including production automation, assembly lines, and process control systems.
