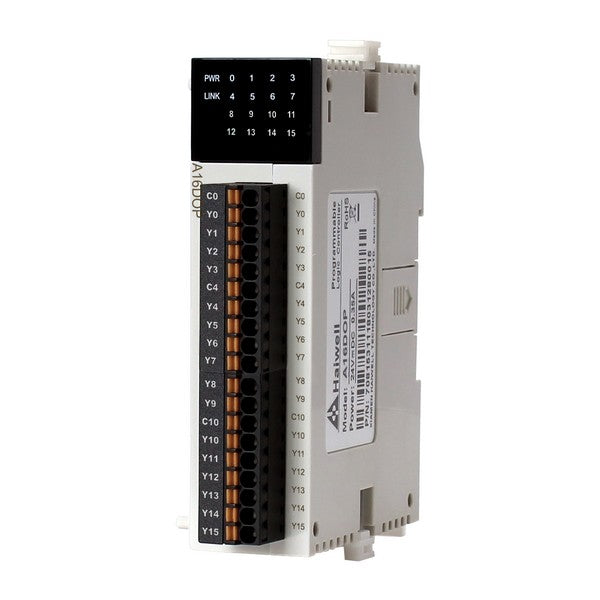

SPLC-A16DOP expansion module up to 16 pnp transistor outputs for Haiwell controller
In Stock
Product Code:
SPLC-A16DOP
Brand:
Haiwell
5 979,48 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
SPLC-A16DOP is a discrete expansion module for Haiwell A series controllers, adding up to 16 PNP transistor outputs. They have the following features:
- connect to A series controllers via a special connector which transfers data and power;
- have a compact design that saves space for installation in cabinets or panels.
- support PNP transistor type discrete output.
| Number of Output Points | 16 |
|---|---|
| Type | PNP transistor output |
| Max. Resistive Load | 0.5 A/1 point, 2 A/4 points COM |
| Max. Inductive Load | 5 W/24 V DC |
| Max. Lamp Load | 12 W/24 V DC |
| Minimum Load | 2 mA |
| Voltage Characteristics | 30 V DC |
PNP Transistor Output Connection Diagram
