Inductive proximity sensor NPN, M18, distance up to 5 mm (TKI/TKL series)

Do you have any questions about the product?
We will be happy to answer them in messengers

Inductive proximity sensor NPN, M18, distance up to 5 mm (TKI/TKL series)

Name: Inductive proximity sensor NPN, M18, distance up to 5 mm (TKI/TKL series)
Brand: Specialist
SKU: SPLC-TKI-18N5C
Price: 755.82 UAH
Availability: InStock

On order

Type of transistor output

NPN NC NPN NO

Роз'єм

Кутовий Прямий

Model

Manufacturer

Specialist

1 163,35 UAH

-35%

from 755,82 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SPLC-TKI-18N5C

Inductive proximity sensor NPN, M18, distance up to 5 mm (TKI/TKL series)

Type of transistor output=NPN NO Роз'єм=Прямий

SPLC-TKI-18N5C

1 163,35 UAH 755,82 UAH

In Stock

SPLC-TKL-18N5C

Inductive proximity sensor NPN, M18, distance up to 5 mm (TKI/TKL series)

Type of transistor output=NPN NO Роз'єм=Кутовий

SPLC-TKL-18N5C

1 163,35 UAH 755,82 UAH

In Stock

SPLC-TKI-18NC5C

Inductive proximity sensor NPN, M18, distance up to 5 mm (TKI/TKL series)

Type of transistor output=NPN NC Роз'єм=Прямий

SPLC-TKI-18NC5C

1 163,35 UAH 755,82 UAH

In Stock

SPLC-TKL-18NC5C

Inductive proximity sensor NPN, M18, distance up to 5 mm (TKI/TKL series)

Type of transistor output=NPN NC Роз'єм=Кутовий

SPLC-TKL-18NC5C

1 163,35 UAH 755,82 UAH

In Stock

Technical specifications

Transistor output type

NPN NC, NPN NO

Sensitivity distance (Sn)

5 mm

Case type

M18

Роз'єм

Кутовий, Прямий

Delivery time

60 днів

Description

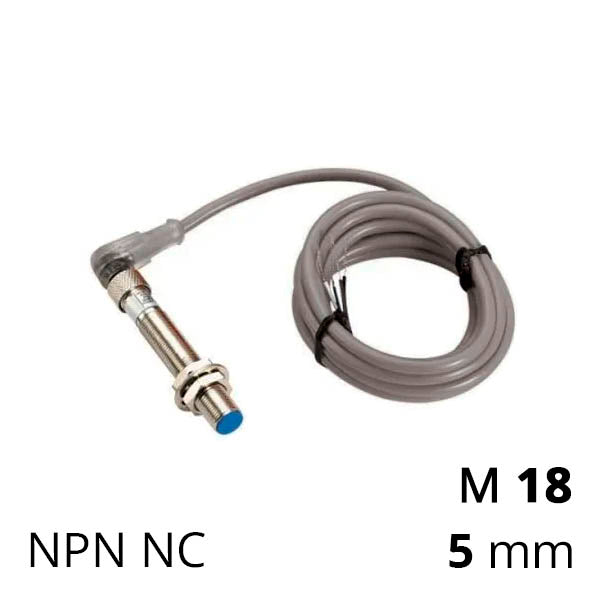

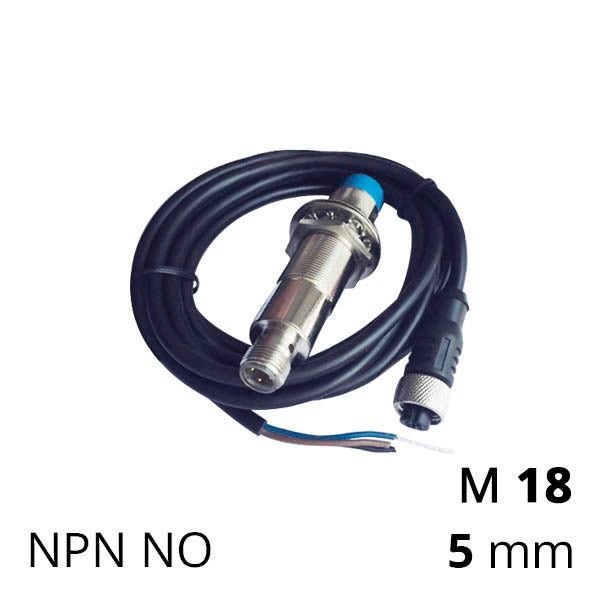

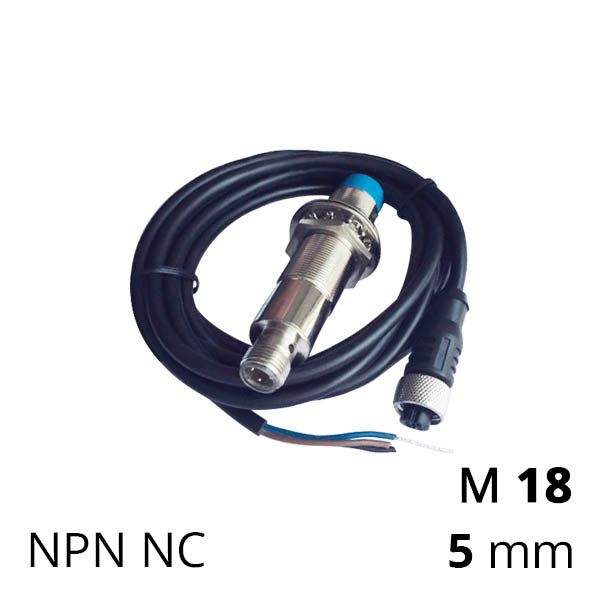

Non-contact inductive sensor 24V DC NPN-type SE-SEN-TKІ(L)-18N(C)5C is used for proximity detection, position control, counting, and speed determination of metallic target objects. The operating distance of the limit switch for metals is up to 5 mm. This sensor model has a transistor and electronic components that sustain external loads up to 200 mA, high resistance to electromagnetic interference thanks to the optimally selected frequency of 400 Hz, waterproof housing IP66, visible 360-degree light indication, round pin-3 or pin-4 connector for cable connection — high-quality three-core signal cable length of 2 metres included.

Technical Specifications Table for Magnetic-Inductive Proximity Sensor SE-SEN-TKІ(L)-18N(C)5C
Output Type	3-wire NPN NO or NPN NC
Detector	Metal detection (steel, stainless steel, chrome, nickel, copper, aluminium, etc.)
Standard Detection Object	Iron plate 18×18×1 mm
Detection Distance	Sn = 5 mm
Effective Operating Distance	from 0 to 4 mm
Frequency	≤400 Hz
Power Supply	DC 10…30 Volts
Max. Load	≤200 mA
Housing	Screw-type cylindrical with M18 thread
Connection	Cable 2 metres long
IEC Protection Class	IP66

Connection Diagram for NPN Type Proximity Sensor
