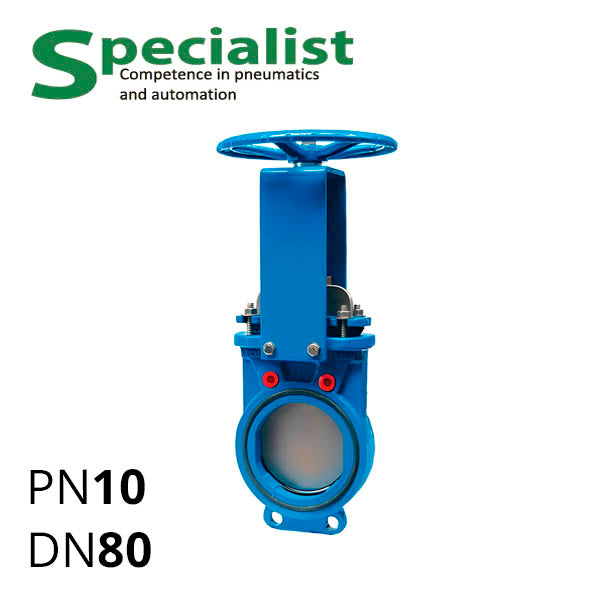

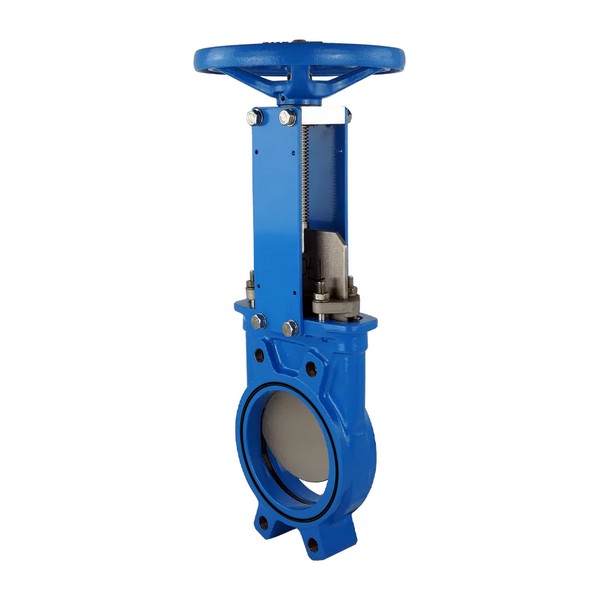

Knife gate latch DU 80 cast iron SCBF-PZ673X-10JC-80 with flywheel

Model SCBF-PZ673X-10JC-80-M is a cast iron wedge gate valve wafer type DN80 PN10 with rising stem and handwheel for manual closure. This bidirectional knife valve DN 80 made of cast iron is designed for use with working mediums without pressure or under pressure 9.8 bar and temperatures up to 80°C, including for gases, liquids, and bulk materials.

The company “Specialist” offers the production of knife gate valves based on series from the online store, but with necessary client modifications: with rubber covered wedge, stainless steel, more compact without rising stem, with high-temperature rubber EPDM or Viton. We will select materials for your working environment

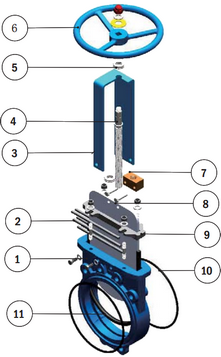

Design features of standard knife gate SCBF-PZ673X-10JC-80-M with DN80

• Reinforced NBR. Rubber sealing reinforced with steel wire throughout the perimeter of the seat under the wedge — helps to maintain shape, increases lifespan, and ensures tightness.
• Rising stem. Serves as an indicator of the position of the gate DN 80, and is also a more reliable construction.
• WCB. Though WCB is called cast iron, it is actually cast carbon steel — it is more impact-resistant and withstands high pressure, which is important for industrial valves.
• Standard flange connection: PN10, PN16, 10K, 150LB, TABLED, DIN.
• Working pressure: 10 kg/cm² for DN80. This when converting pressure to other units is 9.8 bar (10 bar) or 0.98 MPa (1 MPa). Designation PN 10.
