Screw compressor mobile 500 l/min, 8 bar, 4 kW (SCC-CM4.0-05)

Do you have any questions about the product?
We will be happy to answer them in messengers

Screw compressor mobile 500 l/min, 8 bar, 4 kW (SCC-CM4.0-05)

Name: Screw compressor mobile 500 l/min, 8 bar, 4 kW (SCC-CM4.0-05)
Brand: Specialist
SKU: SCC-CM4.0-05
Price: 78472.68 UAH
Availability: InStock

In Stock

Product Code:

SCC-CM4.0-05

Brand:

Specialist

78 472,68 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Productivity

500 l/min at 8 bar

Power

4 kW

Description

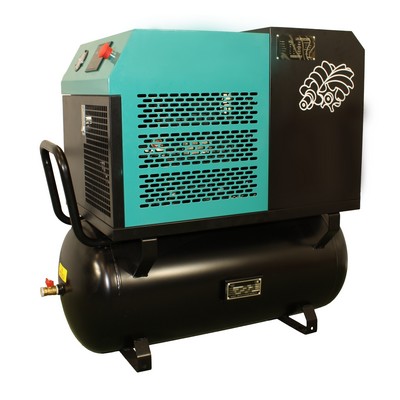

Air Compressor 500 litres/min series SCC-CM4.0-05 is a ready-to-use small mobile compressor unit with a 100L receiver for air compression up to 8 atmospheres. Unlike other wheel-mounted compressor models with a performance of 0.5 cubic metres per minute, this compressor is screw, distinguished from piston types by high efficiency, capability for continuous operation, and low noise.

This screw compressor must be powered from an industrial network 3-phase 380V. The compressor motor is asynchronous, with a power of 4 kW, mounted on anti-vibration supports.

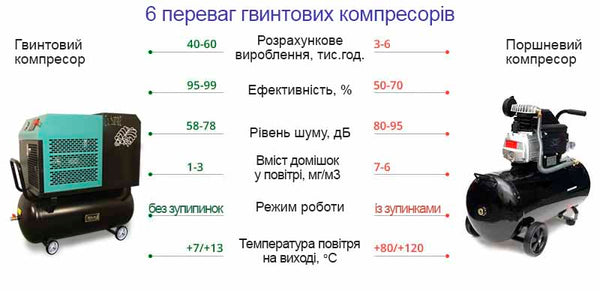

Advantages of the 500 litres screw compressor over piston

The pneumatic blower compressor block SCC-CM4.0-05 includes all necessary parts for launch and operation, with all components being of high quality and reliable:

The motor on the compressor 4 kW is connected to the screw pair via an elastic coupling — direct drive has better efficiency and significantly simplifies maintenance compared to belt drive, where pulley adjustment and replacement are frequently needed. Our direct drive lasts longer;
Components are connected by a metal pipeline — metal tubes last longer than rubber ones;
A paper filter is installed in the air intake (snail) to clean incoming air from contaminants; compressed air is separated from compressor oil in the air-oil separator;
Oil filter cleans the oil from contaminants;
Fans for air cooling — one for the entire block and one separately on the motor;
All components are connected to a controller with LCD display and touch-buttons. Parameters are displayed in the form of letter codes.
A 100L receiver stabilizes output pressure, and moisture from atmospheric air partly condenses in it.

Technical Specifications of Compressor SCC-CM4.0-05
Model	SCC-CM4.0-05
Motor Power	4 kW
Motor Start Method	Direct start
Motor Operation Mode	Constant speed
Motor Speed	2880 rpm
Power Supply Voltage	3 phases 380V
Productivity	0.5 m³/min
Pressure	8 bar
Receiver Volume	100L
Connection Diameter	G 1/2″
Dimensions	1000×445×1100 mm
Weight	112 kg

Accessories for Compressors 500 L/min

Our company "Specialist" also offers you to order various accessories for the SCC-CM4.0-05 compressor from our warehouses in Ukraine:

Drain valve for receiver condensate, operating on a timer. As the receiver tank may rust over time, we recommend selecting valves from the SV-FDA series with a built-in pre-filter to protect the valve from rust particles and sticking;
ball valves for compressor piping;
specialized compressor oil;
industrial air dryers of refrigerant and adsorption types and filters;

Our screw compressors Specialist are stored in Lviv and Kamianske Dnipropetrovsk region. You can always order both the compressor equipment itself and spare parts for SCC-CM4.0-05 compressors directly from the manufacturer — we are direct importers from China and maintain stock positions in Ukraine, ensuring availability and fair prices for our customers.

Need a mobile compressor 4 kW 380V?

The single-stage compressor SCC-CM4.0-05 features a handle welded to the receiver and the possibility of wheel installation, making it portable and convenient for transportation. Wheels are included.

The electric compressor on wheels with air output 500 L/min SCC-CM4.0-05 is a professional compressor for small air tools — pneumatic wrenches, spray guns, sandblasters, grinders. The screw type compressor can operate WITHOUT stops and is indispensable for large auto workshops and service stations — it can power pneumatics tire fitting machines for wheel mounting, used for inflating tires of any diameter, as the output 8 atmospheres can be reduced through a pressure regulator to any required value.

Manual_of_compressor_v1.3.pdf
