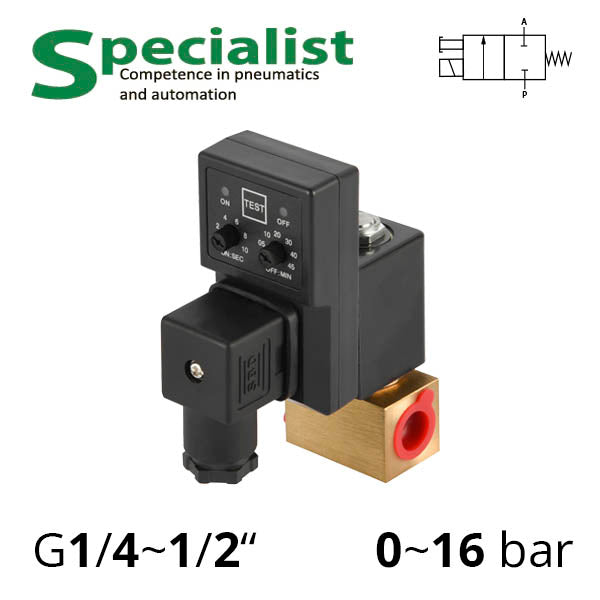

Solenoid valve with remote control timer 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V-A

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve with remote control timer 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V-A

Name: Solenoid valve with remote control timer 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V-A
Brand: Specialist
SKU: SV-FD-ES-22NC-08-AC220V-A
Price: 2655.90 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Thread size

G ½ G ¼ G ⅜

Model

Manufacturer

Specialist

from 2 655,90 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 6 variants


Name

Model Price Availability Qty

Action

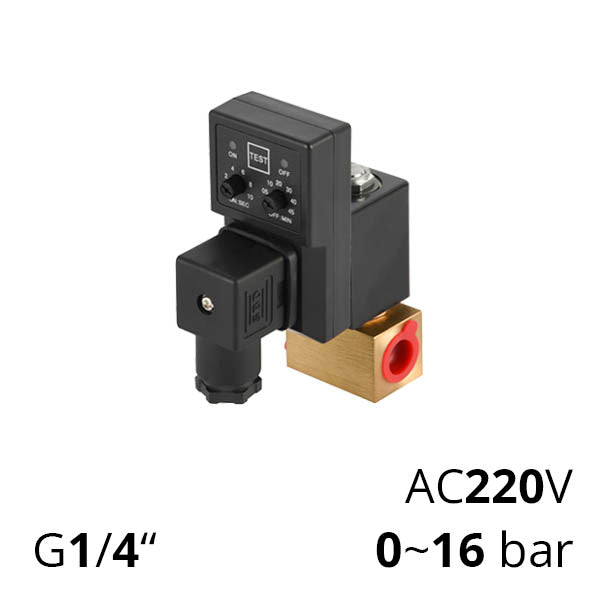

SV-FD-ES-22NC-08-AC220V-A

Solenoid valve with remote control timer 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V-A

Power Voltage=AC220V Thread size=G ¼

SV-FD-ES-22NC-08-AC220V-A

2 655,90 UAH

In Stock

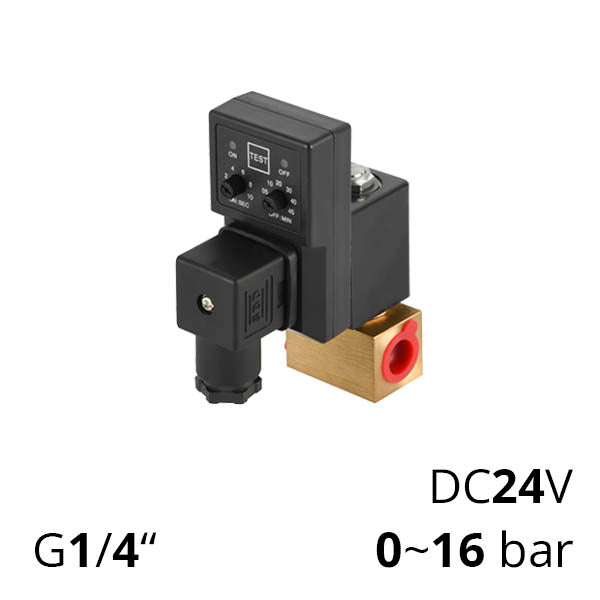

SV-FD-ES-22NC-08-DC24V-A

Solenoid valve with remote control timer 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V-A

Power Voltage=DC24V Thread size=G ¼

SV-FD-ES-22NC-08-DC24V-A

2 655,90 UAH

In Stock

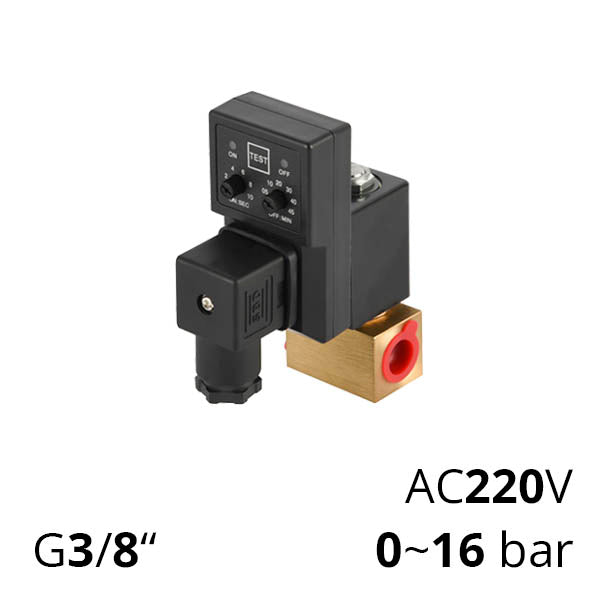

SV-FD-ES-22NC-10-AC220V-A

Solenoid valve with remote control timer 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V-A

Power Voltage=AC220V Thread size=G ⅜

SV-FD-ES-22NC-10-AC220V-A

2 655,90 UAH

In Stock

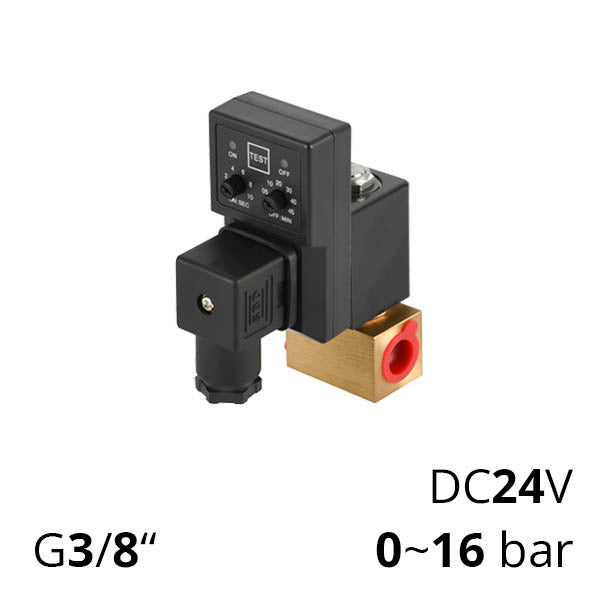

SV-FD-ES-22NC-10-DC24V-A

Solenoid valve with remote control timer 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V-A

Power Voltage=DC24V Thread size=G ⅜

SV-FD-ES-22NC-10-DC24V-A

2 655,90 UAH

In Stock

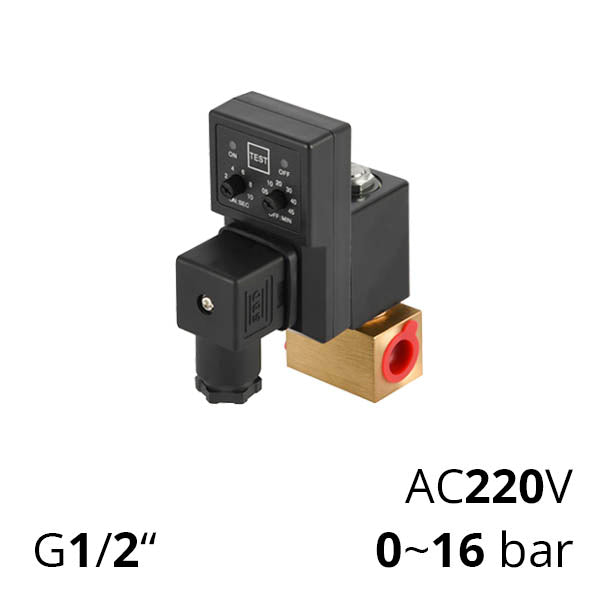

SV-FD-ES-22NC-15-AC220V-A

Solenoid valve with remote control timer 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V-A

Power Voltage=AC220V Thread size=G ½

SV-FD-ES-22NC-15-AC220V-A

2 655,90 UAH

In Stock

SV-FD-ES-22NC-15-DC24V-A

Solenoid valve with remote control timer 1.9~4.5 mm thread G1/4~1/2″ SV-FD-ES-22NC-AC220V-A

Power Voltage=DC24V Thread size=G ½

SV-FD-ES-22NC-15-DC24V-A

2 655,90 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ½", G ¼", G ⅜"

Coil voltage

AC220V, DC24V

Nominal diameter

TWO 1.9

Тип контролю

Electromagnetic

Description

Drain Electromagnetic Valve with Timer Series SV-FD-ES-22NC is used for automatic condensate drainage from screw and piston compressor receivers, as well as in automatic irrigation systems. This valve is 2/2 normally closed — it will block the flow in the absence of power.

The package includes a solenoid (coil) and an electronic timer, allowing to set the duration and period between signals for water drainage. FD series solenoid valves have a reliable construction, increased diameter of the nominal passage, and a wide range of operating pressures.

Coding of 2-line normally closed valve with timer

Model		SV-FD-ES-22NC-...-A	SV-FD-ES-22NC-...-E
Construction		Two-position, two-line normally closed valve with direct el. control
Material		Bronze (stainless steel), NBR
Connection	SV-FD-ES-22NC-08	G1/4"
	SV-FD-ES-22NC-10	G3/8"
	SV-FD-ES-22NC-15	G1/2"
Mounting		Any position
Operating Pressure Range		up to 16 bar (standard) 25, 40 or 80 bar (on request)
Operating Temperature Range		-20... +60 °С
Adjustable Drain Time		0.5...10 sec	0.5...99 sec
Adjustable Interval Between Drains		0.5...45 min	0.5...99 min
Nominal Passage Diameter		1.9...4.5 mm
Protection Degree, Insulation Class		Class F, IP65 (with connector)
Power Supply Voltage		AC24V, AC110V, AC220V, DC24V

https://drive.google.com/file/d/1Sqn9R-S7YUQ0w9m-tlpcwCzFDOkbYEK0/view?usp=sharing
