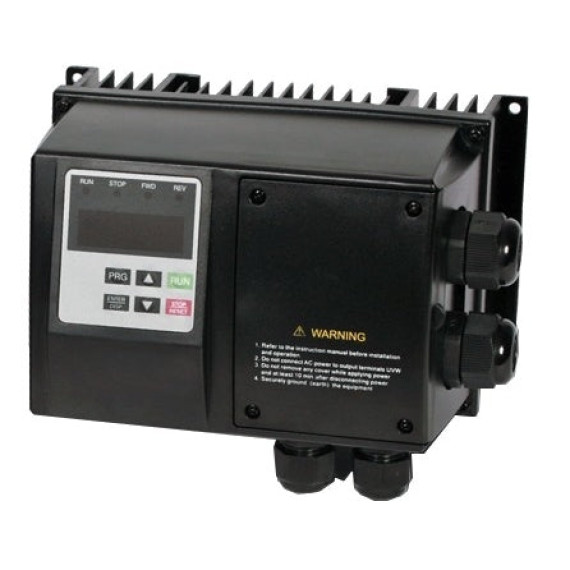

The SPLC-NZS-3R7G4 frequency converter is designed for controlling water supply pumps, as well as other asynchronous motors with power up to 3.7 kW with three-phase AC power 380V.
This frequency converter has a reliable casing with IP65 dust and water protection rating, which protects the device's printed circuit boards from dust and water streams when the device is installed directly near actuators in a contaminated environment. The price of the frequency converter includes its configuration with sealed cable glands, a 1.8 m input cable for power connection, and a 1 m output cable for connecting to the motor.
The SPLC-NZS-3R7G4 front panel has an LCD display and indicators, along with a keyboard. The function of some keys can be set through the menu and locked.
Control circuit terminals:
- 6 multifunctional discrete input terminals, which can be used for remote commands, switching between 16 preset speeds (combination of 4 input signals), among 4 acceleration modes (combination of 2 input signals), etc.;
- 1 analog scalable input (0...10 V, 0...20 mA), which can serve directly as a frequency setpoint source, for connecting a temperature or pressure sensor in a closed loop PID control;
- 2 relay outputs;
- 2 analog outputs (0...10 V or 0...20 mA);
- RS-485 (Modbus) for connection to an industrial process automation system.
SPLC-NZS-3R7G4 supports the following control methods:
- scalar control method with the possibility of multi-point configuration to achieve a V/f curve.
Main parameters:
- Rated connected motor power up to 3.7 kW;
- Output frequency 0.1~400 Hz;
- Ability to operate for 60 seconds at overload up to 150% of the rated current;
- Manual increase of torque by 0~20%;
- Selectable carrier frequency of 1~15 kHz;
- Two counters;
- The possibility of automatic adjustment of output voltage in cases where the supply voltage varies;
- Program implementation on the basis of a frequency converter with a multi-step speed of 15 steps of different set frequency duration from 0 to 999.9 s;
- Fine tuning of PID control;
- Support of protection functions against overcurrent, overvoltage and voltage drop during operation, acceleration, and deceleration; against overload of frequency converter and motor; against transformer overheating; against RS-485 line break; against feedback from sensor 4...20 mA breakage; alarm for high and low pressure, water shortage.
With us, you can buy a scalar frequency converter Nietz for asynchronous motors with power up to 3.7 kW of the NZS series with 3 phase ~ 380V power supply and delivery to any region of Ukraine.
