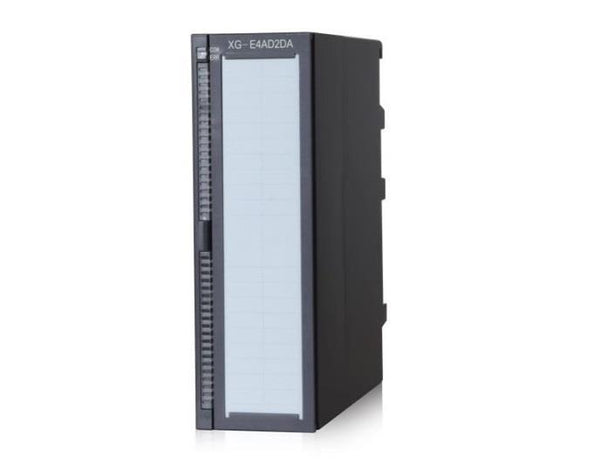

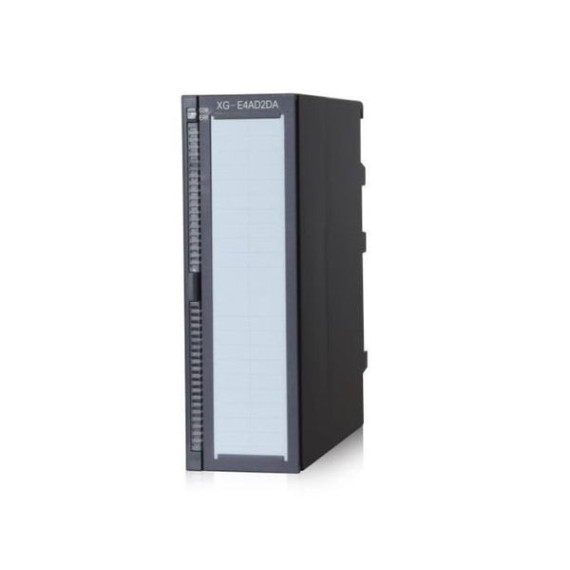

SPLC-XG-E4AD2DA series analog input expansion module (right) for Xinje controllers
In Stock
Product Code:
SPLC-XG-E4AD2DA
Brand:
Xinje
15 875,64 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Analogue input-output expansion modules for Xinje XG series PLCs are modules that allow increasing the number of analogue inputs and outputs for XG2-26T4 controllers. The modules have the following features:
- Connectivity for power supply and data transmission to the controller via a specialised cable;
- Support for various types of analogue inputs and outputs — for current and voltage;
- The AD channel has functions for short circuit detection, open circuit detection, and range overstep;
- Added channel enable bit;
- Up to 16 expansion modules can be connected to one controller, allowing input-output expansion up to 1050 points;
- Modular design is compact and saves space for installation in cabinets or panels.
There are different models of analogue expansion modules for Xinje XG series controllers, depending on the type and number of inputs and outputs they provide
| Input | Number of inputs | 4 analogue inputs |
|---|---|---|
| Voltage signal | 0–5, 0–10, −5–5 or −10–10 V | |
| Current signal | 0–20, 4–20, or −20–20 mA | |
| Resolution | 1/16383 14 bit | |
| Output | Number of outputs | 2 analogue outputs |
| Voltage signal |
0–5, 0–10, −5–5 or −10–10 V (external load resistor from 2 kΩ to 1 Ω) |
|
| Current signal |
0–20 or 4–20 mA (external load resistor less than 500 Ω |
|
| Resolution | 1/4095 12 bit | |
| Power Supply | 24 V ±10% DC 150 mA | |
| Conversion Speed | 2 ms/channel | |
| AD filter coefficient | 0~254 | |
| Total accuracy | ±1% | |
