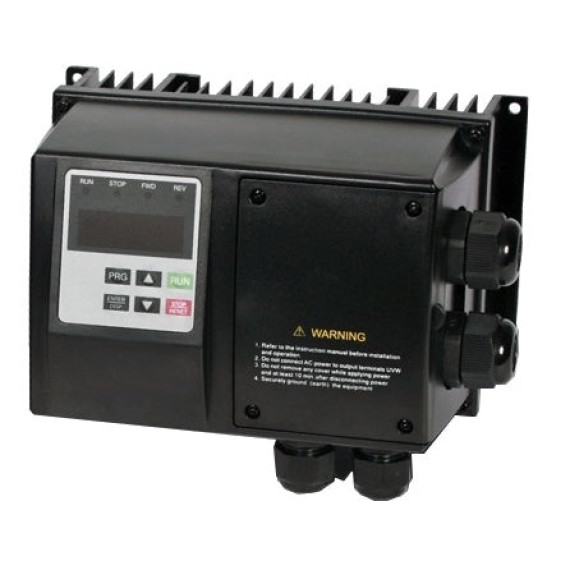

The frequency converter SPLC-NZS-1R5G4 is designed to control water supply pumps, as well as other asynchronous motors with power up to 1.5 kW in a three-phase AC supply 380V.
This frequency converter has a reliable enclosure with a protection degree of IP65, which protects the device's printed circuit boards from dust and water sprays in case of installation directly near actuators in a polluted environment. The price of the frequency converter is indicated with its package including hermetic cable entries, a 1.8 m input cable for power connection, and a 1 m output cable for motor connection.
On the front panel of SPLC-NZS-1R5G4, there is an LCD display and indicators, as well as a keyboard. The function of some keys can be determined through the menu, and they can be locked.
Control circuit terminal blocks:
- 6 multifunctional discrete input terminals, which can be used for remote commands, switching between 16 preset speeds (combination of 4 input signals), among 4 acceleration modes (combination of 2 input signals), etc.;
- 1 analog scalable input (0...10 V, 0...20 mA), which can directly be a frequency setpoint source, for connecting a temperature or pressure sensor in PID control in a closed circuit;
- 2 relay outputs;
- 2 analog outputs (0...10 V or 0...20 mA);
- RS-485 (Modbus) for connection in an industrial process automation system.
SPLC-NZS-1R5G4 supports the following control methods:
- Scalar control method with multi-point adjustment ability for obtaining the V/f curve.
Main parameters:
- Rated power of the connected motor up to 1.5 kW;
- Output frequency 0.1~400 Hz;
- Capability to work for 60 seconds with overload up to 150% of rated current;
- Manual torque boost 0~20%;
- Choice of carrier frequency 1~15 kHz;
- Two counters;
- Ability to apply automatic output voltage regulation in cases where supply voltage changes;
- Implementation of a multi-step speed program based on the frequency converter with 15 steps of different set frequencies from 0 to 999.9 s;
- Fine PID-regulation settings;
- Protection functions against overcurrent, overvoltage and undervoltage during operation, acceleration and deceleration; against frequency converter and motor overload; against converter overheating; against RS-485 communication line break; against feedback interruption from a 4...20 mA sensor; alarm for high and low pressure, water shortage.
With us, you can buy the scalar frequency converter Nietz for asynchronous motors with a power of up to 1.5 kW of the NZS series with power supply voltage 3-phase ~380V with delivery to any region of Ukraine.
