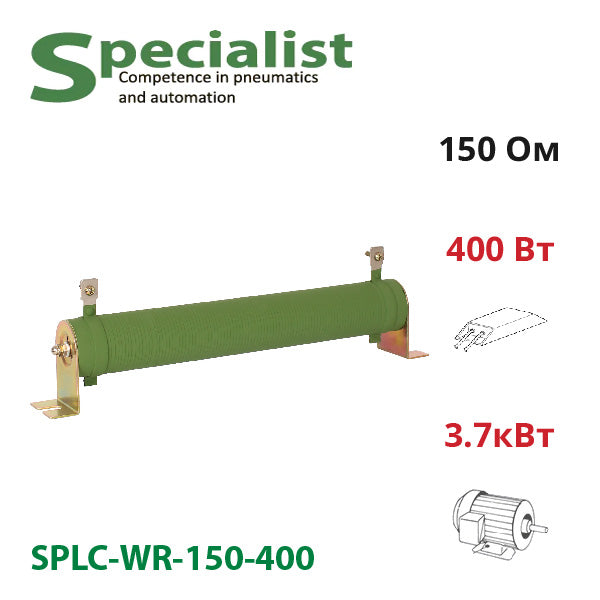

Braking resistor 150 Ohm 400 W SPLC-WR-150-400 for frequency converter 3.7 kW
In Stock
Product Code:
SPLC-WR-150-400
Brand:
Specialist
739,20 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The ceramic resistor model SPLC-WR-150-400 is most often used as a braking resistor for inverter 3.7 kW — when choosing, rely on the frequency converter manufacturer's recommended resistor characteristics and calculated motor braking power. This wire-wound resistor has a resistance of 150 Ohm and a power of 400 W.
Braking resistors of the WR series are made from a ceramic tube on which wire of iron-chrome-aluminium alloy (by default) or nichrome (on request) is wound. The ceramic body serves as an insulator and heat sink, which is resistant to high temperatures and corrosion. The wire has high specific electrical conductivity, allowing efficient heat dissipation produced during motor braking.
| Model | SPLC-WR-150-400 |
|---|---|
| Nominal Power | 400 W |
| Nominal Resistance | 150 Ohm |
| Resistance Tolerance | ±5% (type J) ±10% (type K) |
| Nominal Load | 50-200 W, surface temperature less than 275°C; more than 200 W — 350°C |
| Short-term Overload | no visible damage ΔR ≤ ±(5%R + 0.05 Ohm) |
| Insulation Resistance | ΔR ≥ 1000 MOhm 1 min, direct current 1000 V |
| Withstanding Voltage | No visible damage, no arc discharge ΔR ≤ ±(0.1%R + 0.05 Ohm), alternating current 3000 V, 5 s |
| Terminal Strength | no visible damage, 45 N 30 s |
| Material | 0Cr25AL5/Cr20Ni80 |
| Protection Class | IP00 |
| Storage Temperature | between -40 and 50°C (without moisture) |
