Valve for bulk materials DN250 (SCBF-BV2-6JA-250)

Do you have any questions about the product?
We will be happy to answer them in messengers

Valve for bulk materials DN250 (SCBF-BV2-6JA-250)

Name: Valve for bulk materials DN250 (SCBF-BV2-6JA-250)
Brand: Specialist
SKU: SCBF-BV2-6JA-250
Price: 7419.18 UAH
Availability: InStock

In Stock

Product Code:

SCBF-BV2-6JA-250

Brand:

Specialist

7 419,18 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Connection type

Flange

Installation length

77 mm

Матеріал диску

Cast iron

Матеріал ущільнення

NBR

Body material

Aluminum alloy

Тип засувки

Disc rotary shutter

Nominal diameter

250

Inlet pressure

There is Ru6

Тип контролю

Drive-in site

Description

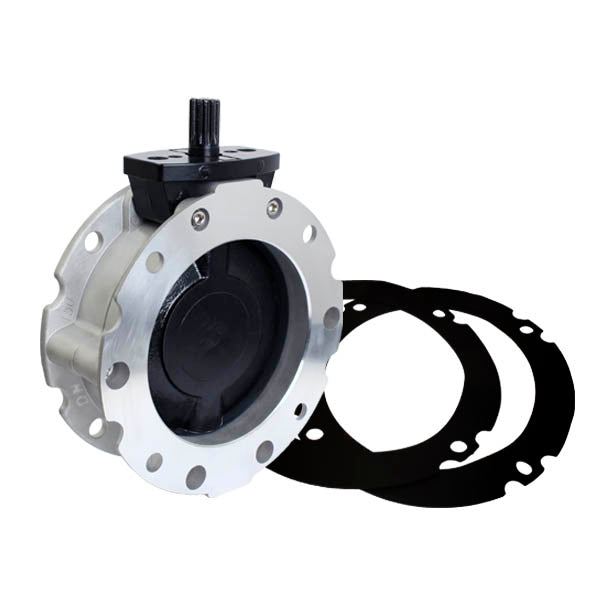

Flanged butterfly valve with a rotating disc series SCBF-BV2-6JA-250 is used for air-gravity transportation of flowing bulk materials (granules, concrete, sand, etc.) at low pressure PN0.1. The series is designed for pipes to silos and bunkers with a nominal diameter d 250 mm. This pipeline equipment is installed using flanged mounts with an additional rubber seal between the pipe and the valve, which is included in the basic configuration of SCBF-BV2-6JA-250 Specialist.

By default, we supply valves SCBF-BV2-6JA-250 with a cast iron disc, NBR seals and a non-coated cast aluminium body, reducing the weight of the product. On request, we manufacture valves with disc rubberizing and other materials.

At the customer's choice, disc butterfly valves for pipelines and bunkers of bulk materials can be equipped with a set:

platform-bracket for pneumatic or electric drive, connecting shaft according to ISO (octagonal star shape)
adapter for connecting shaft valve-drive under square
manual control

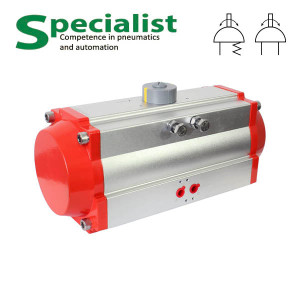

pneumatic drive RST/RAT for operation both in “open-close” mode, and adjustable flow with pneumatic positioner
electric drive
