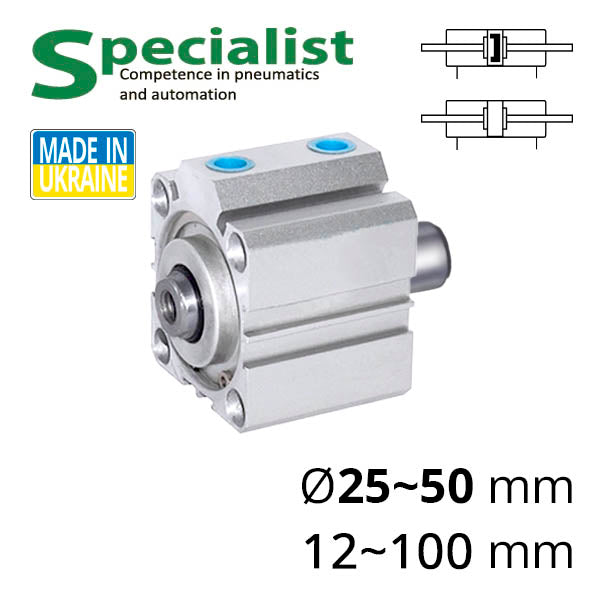

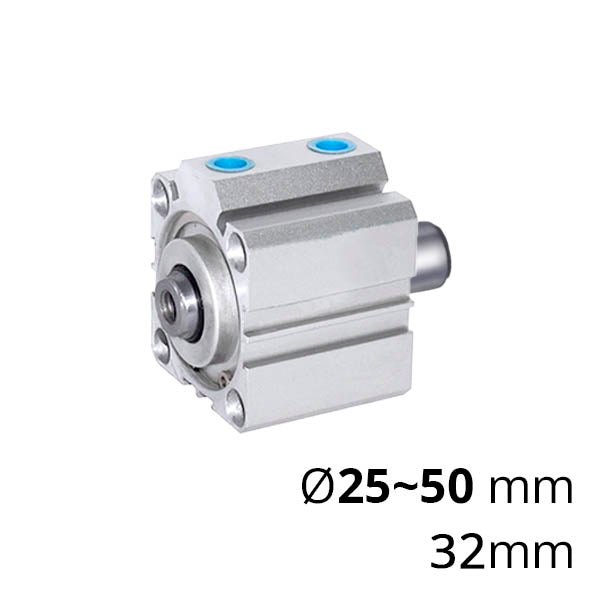

Compact pneumatic cylinders double acting SC-SDAD series have a double-ended rod (through rod).
These cylinders are made with a piston diameter from 12 to 100 mm and a stroke length multiple of 5 mm, but not more than 30 mm. The series does NOT have a built-in damping device, damping washers are used to absorb the piston impact force against the cover. Short-stroke pneumatic cylinders of this type are often found on Chinese-made equipment.
At the customer's choice, SC-SDAD pneumatic cylinders can be produced:
- with a magnet for the possibility of controlling the position of the piston using a reed switch (denoted by the letter "S" in the code)
- without a magnet on the piston, allowing further reduction of the overall dimensions.
Table 1 — Technical characteristics of SC-SDAD pneumatic cylinders double acting with through rod
| Piston Diameter, mm |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
| Maximum Stroke Length, mm |
60 |
100 |
120 |
130 |
| Connection Thread |
M5×0.8 |
G1/8" |
G1/4" |
G3/8" |
| Type of Action |
Double acting with through rod |
| Working Medium |
Compressed air after filtering at a degree of not less than 40 µm |
| Working Pressure Range |
0.1-10 bar |
| Maximum Input Pressure |
12 bar |
| Operating Temperature Range |
−10-70℃ |
| Damping |
Damping washer |
| Sensor Type (for SC-SDAD cylinder with piston magnet) |
SC-CS1-J |
The SC-SDAD double acting pneumatic cylinder has two ports for connection to the pneumatic drive, usually controlled by 5/2 pneumatic distributors.
