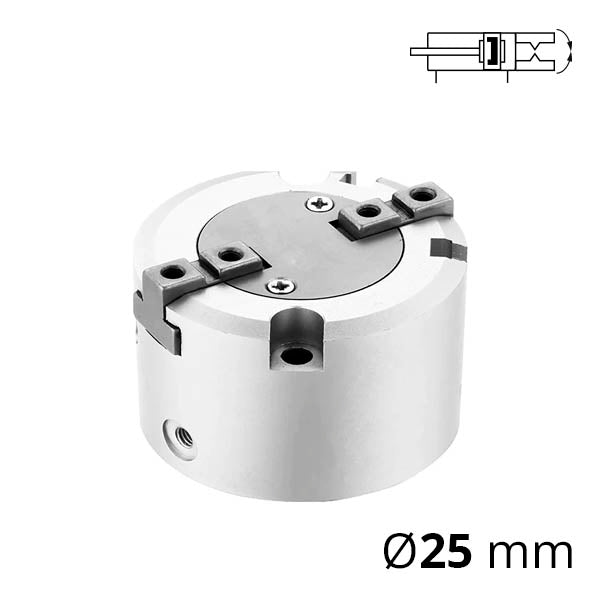

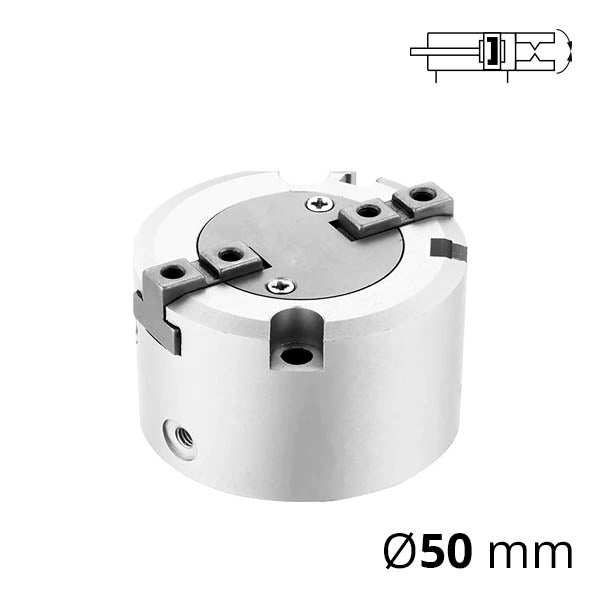

Parallel type cam pneumatic gripper with two fingers series SC-MHS2 has a stroke range from 4 to 16 mm and is available with a piston diameter from 16 to 63 mm.
| Diameter, mm | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
|---|---|---|---|---|---|---|---|---|
| Working medium | Compressed air | |||||||
| Operating pressure range, bar | from 2 to 6 bar | from 1 to 6 bar | ||||||
| Ambient temperature | from -10 to 60° C | |||||||
| Repeatability, mm | ±0.01 | |||||||
| Maximum operating frequency | 120 cycles/min | 60 cycles/min | ||||||
| Lubrication | No lubrication needed | |||||||
| Operating mode | Double action | |||||||
| Holding torque at 5 bar, Newton | External grip | 21 | 37 | 63 | 111 | 177 | 280 | 502 |
| Internal grip | 23 | 42 | 71 | 123 | 195 | 306 | 537 | |
| Stroke length, mm | 4 | 4 | 6 | 8 | 8 | 12 | 16 | |
| Air supply | M3×0.5 | M5×0.8 | ||||||
