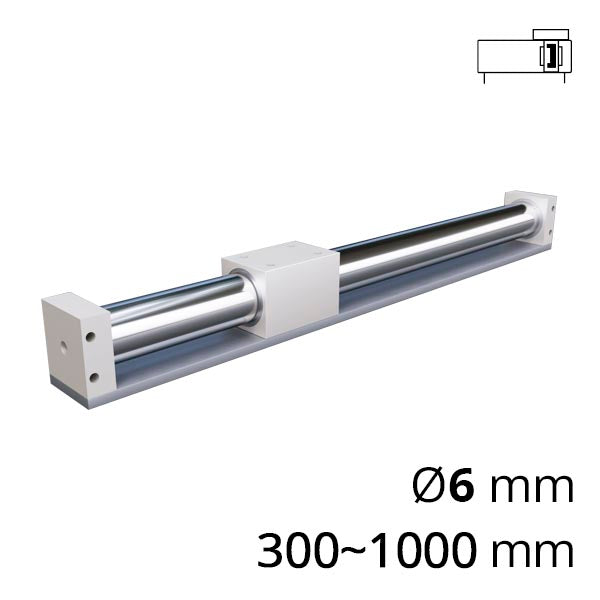

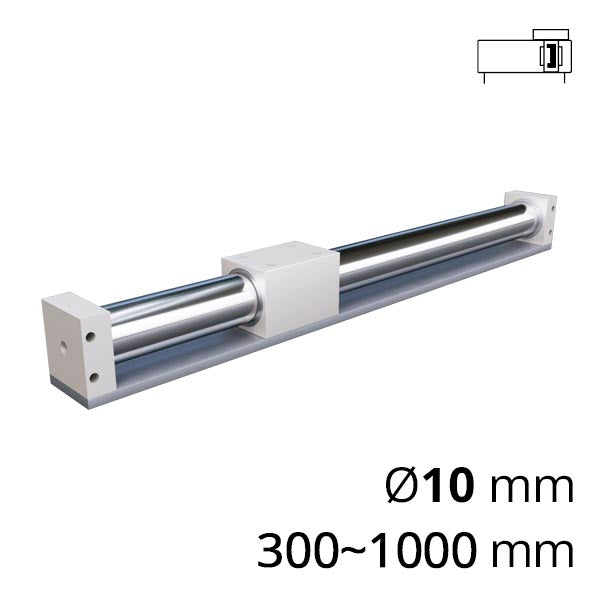

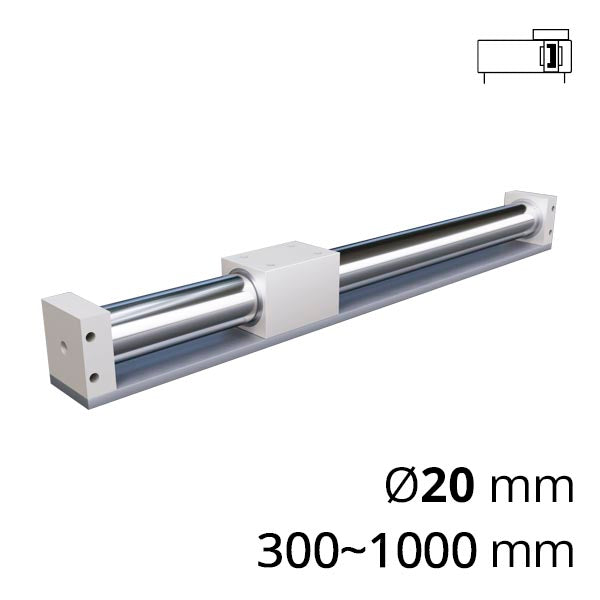

Rodless Pneumatic Cylinder Magnetic with Guide SC-CG2 is a linear pneumatic cylinder with a magnetic link between the piston and carriage, and one built-in guide rail preventing rotation. Available with piston diameters from 6 to 63 mm.
Rodless magnetic carriages SC-CG2, unlike conventional cylinders, are hermetically sealed, preventing air leakage through worn rod seals. Rodless pneumatic cylinders offer high speed, reliability, and durability.
You can order SC-CG2 with hydraulic dampers for smooth stops at the end of the stroke or with a plate for sensor.
| Diameter | 6 | 10 | 15 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|---|---|
| Maximum Stroke, mm | 300 | 500 | 600 | 1000 | |||
| Action | Double Action Linear | ||||||
| Operating Medium | Air (after 40 μm filter) | ||||||
| Operating Pressure Range | 1.8 ~7 Bar | ||||||
| Operating Temperature Range | -10 ~ +60 °C (with dry air without moisture) | ||||||
| Speed of Movement | 50 ~ 1000 mm/s | ||||||
| Braking | Damping Rings (default) | ||||||
| Connecting Thread | M5x0.8 | G1/8″ | G1/4″ | ||||
Save money and order rodless linear cylinders from the "Specialist" company without intermediaries — we are direct importers of magnetic cylinders in Ukraine, only working with time-tested manufacturers.
