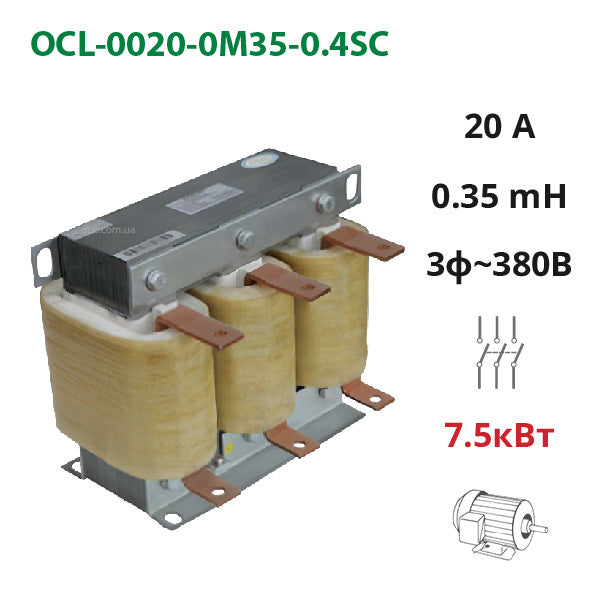

Motor (output) choke 20A, 380V, 7.5 kW, 0.35 mH (OCL-0020-0M35-0.4SC)
In Stock
Product Code:
SPLC-OCL-0020-0M35-0.4SC
Brand:
Specialist
6 242,28 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Three-phase motor choke 20A, 380V, 7.5 kW, 0.35 mH OCL-0020-0M35-0.4SC is installed at the output of a frequency converter to filter the current supplied to three-phase electric motors 380 V. The purpose of the output electric choke is as follows:
- Creating an inductive resistance that limits the current supply to the motor, thus preventing its overload and damage;
- Preventing sudden current surges during motor start-up, which can cause equipment failure;
- Cleaning the current sine wave from unwanted high harmonics (high-frequency noise) that occur in the electric drive.
Use the AC output choke in the circuit between the frequency converter and asynchronous motor to improve the power supply quality of the drive, ensuring safe and long-term operation of the equipment.
Technical specifications of the motor output choke OCL-0020-0M35-0.4SC
| Operating voltage | 3 phases 380 V |
|---|---|
| Voltage drop | 1% for 380 V (less than 4%) |
| Operating frequency | 50/60 Hz |
| Operating current | 20 A |
| Maximum current | may exceed operating current by no more than 150% for 60 s |
| Inductance | 0.35 mH |
| Insulation class | F, H |
| Protection class | IP00 - IP22 |
| Noise | ≤65 dB |
| Temperature rise | ≤85 k |
| Dielectric strength | AC 3000 V/50 Hz/5 mA/10 s |
| Insulation resistance | 100 VDC, ≤100 MΩ |
| Operating ambient temperature | -25 ~ +45℃ |
Operating conditions of the motor choke (line reactor) OCL-0020-0M35-0.4SC
- In the temperature range from minus 10 to 45℃ the nominal parameters of the choke are according to the table. At temperatures above 55℃, the nominal current decreases by approximately 2% for each additional +1℃.
- Altitude above sea level should not exceed 2000 m.
- Air humidity less than 90%.
- Environment: no harmful gases, flammable items, good ventilation is required.
When placing the choke in a cabinet, ventilation for sufficient cooling of the equipment must be ensured.
