Specialist compressors series SCC-ZAY-50 are a ready assembly of an oil-injected screw compressor for stationary installation. Designed for high pressure air compression — from 7 to 10 bar (default), up to 12 bar — on request.

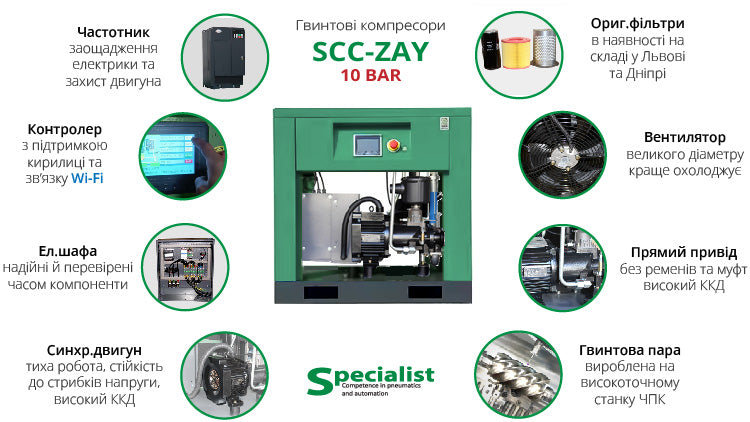

The compressor is controlled via a controller with a touch screen display that supports Cyrillic. Through Wi-Fi connection, you can view compressor parameters and receive notifications about filter replacement on a mobile device or computer. The housing has a dust and moisture protection level of IP23.
A feature of this series is the built-in frequency converter for regulating not only the discharge pressure but also the compressor's capacity. This saves electricity and increases the compressor's lifespan.
When selecting a model, note that any compressor's capacity depends on the outlet pressure. Use the table to purchase the screw compressor SCC-ZAY-50 with the required power.
| Model | SCC-ZAY-50 | ||
|---|---|---|---|
| Power, kW | 37 | ||
| Capacity at the specified discharge pressure | 0.7 MPa | 6.8 m3/min | 6800 l/min |
| 0.8 MPa | 6.2 m3/min | 6200 l/min | |
| 1.0 MPa | 5.6 m3/min | 5600 l/min | |
| 1.2 MPa* | 4.0 m3/min* | 4000 l/min* | |
The compressor consists of the following main elements:
Compared to analogs in the Ukrainian market, Specialist industrial screw compressors are assembled from quality and durable components. We have filters and spare parts available for post-warranty service in stock.

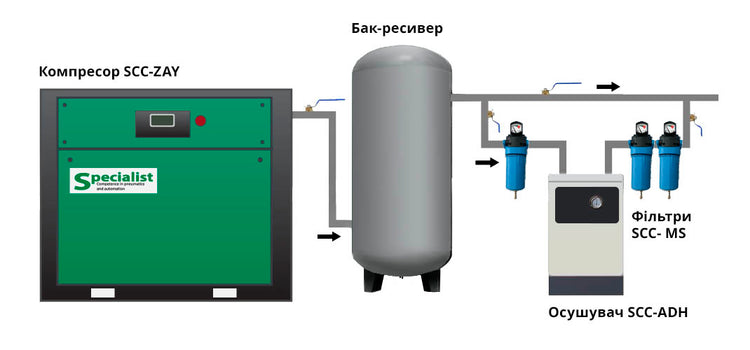

We supply the screw compressors series SCC-ZAY-50, ready for connection and operation. The compressor must be connected to a three-phase AC power network with a voltage of 380 V and a frequency of 50 Hz for power supply. To the air pipeline — using a pipe with cylindrical thread (size depends on the model).
More detailed installation requirements for the compressor (room ventilation, distances to walls) are provided in the manual.
Some SCC-ZY compressor models are in stock at "Specialist" in Ukraine, others we offer for delivery on order within 60 days. Our company also supplies both individual compressors and comprehensive equipment for working with compressed air — receivers, dryers, filters, pressure boosters, valves, regulators, distributors, cylinders, etc.
Call us to receive a commercial proposal with pricing and a detailed presentation of the equipment we can offer upon your request.
