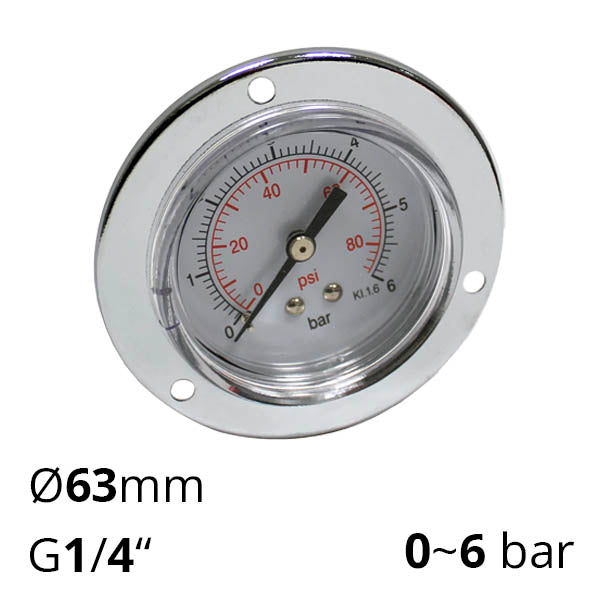

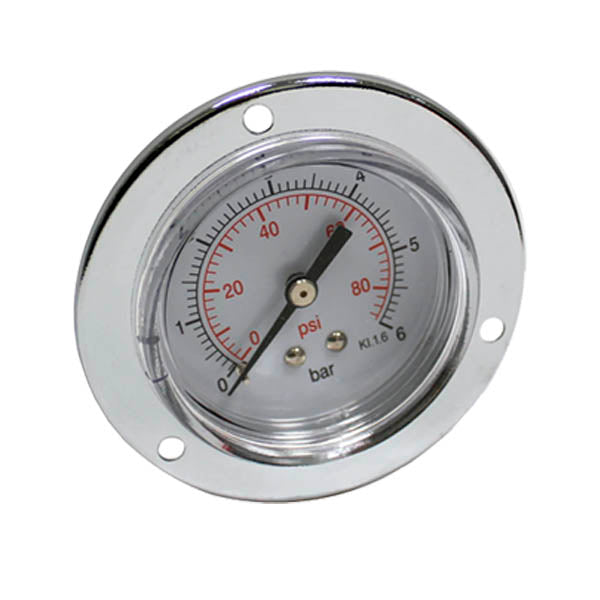

Mechanical flange pressure gauge with a diameter of 63 mm series SA-GF63-06 is designed for measuring the pressure of compressed air or other non-aggressive gases. These gauges can measure pressure above atmospheric from 0 to 6 bar (depending on the scale of the selected model).
The gauges have an external pipe taper thread PT 1/4″ and can be used for connection to a pneumatic line through fittings with an internal pipe cylindrical thread G1/4″ respectively. Flange type gauges SA-GF63-06 are placed on operator front panels, control cabinets, on the housing of compressors, etc.
When selecting a gauge, its scale must be 25% greater than the range of working pressure. For instance, if the normal pressure in a pneumatic system is about 4 bar, it is recommended to order a gauge for 0-6 bar.
Constructively, it is a deformation type gauge with a Bourdon tube.
