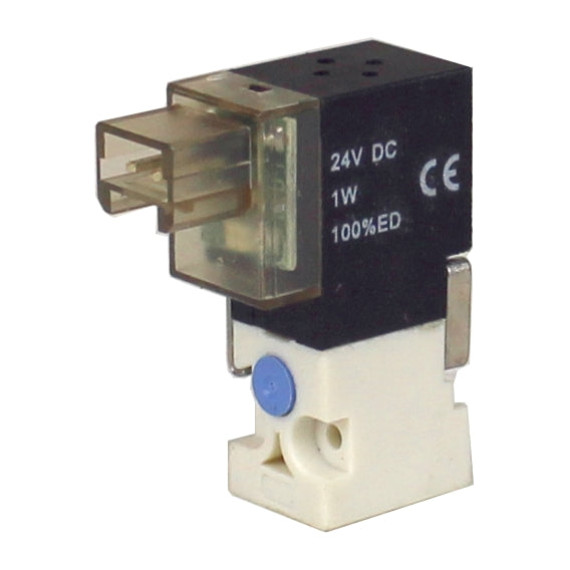

Miniature pneumatic distributor 3/2 with electromagnetic control
In Stock
Product Code:
SV-X10-ES-32NC-DC24V
Brand:
Specialist
598,13 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

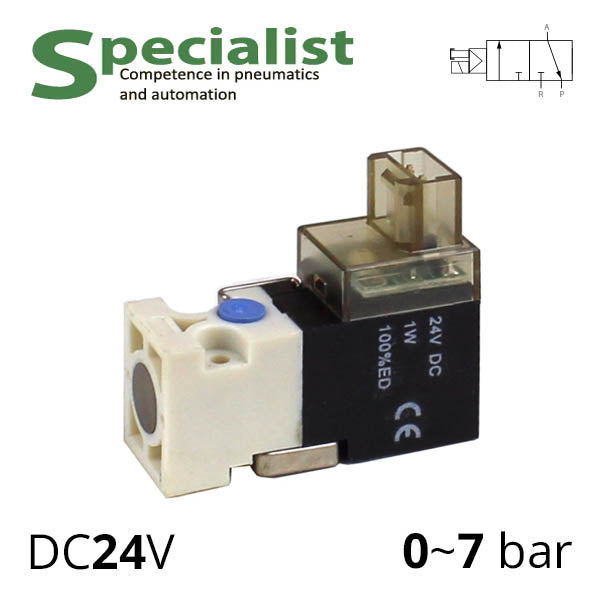

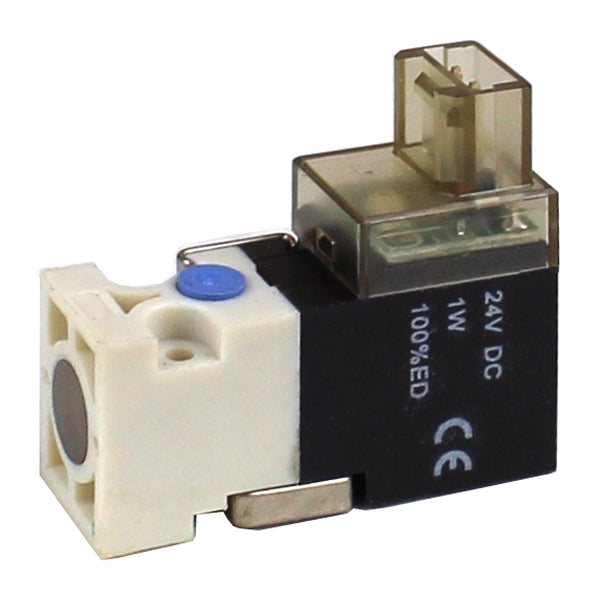

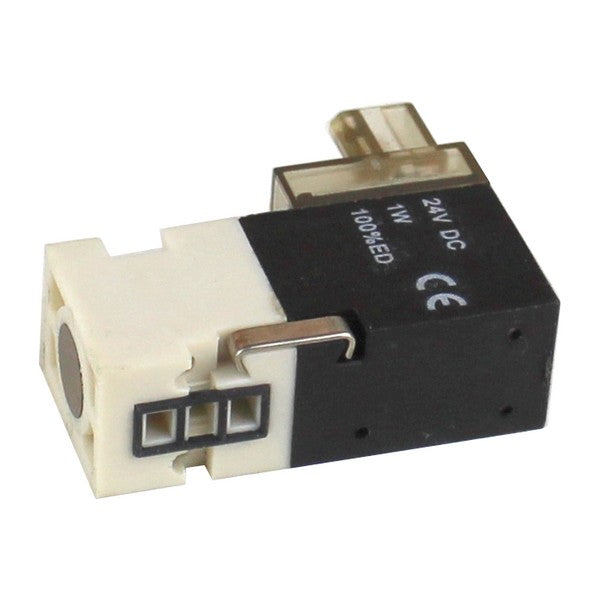

SV-X10-ES-32NC-DC24V is a miniature pneumatic distributor 3/2 normally closed with single-sided electromagnetic control, including a wire and pin connector for 24V connection IP65.
Made of engineering plastic PA66 with NBR sealing, Air connection holes 0.7 mm, and nominal compressed air flow rate is up to 5-20 L/min.
This model's feature of the solenoid pneumatic distributor is maximum compactness and low energy consumption. SV-X10-ES-32NC-DC24V is convenient for use as external pilot valves for energy-efficient control of pneumatic valves and other small pneumatic components. Micro-distribution valves for air can be used separately and installed in groups on a mounting plate (pneumo island).
They withstand pressure from 0 to 7 bar. As a three-line two-position pneumatic distributor, it is bistable. In the absence of a control signal, it blocks the air supply from the inlet and releases pressure from the outlet until a control signal is given.
