Thread
G 1/8"
Do you have any questions about the product?
We will be happy to answer them in messengers

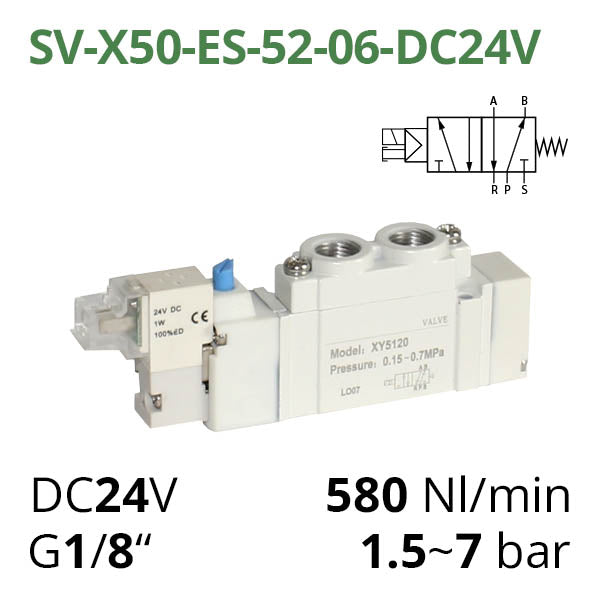

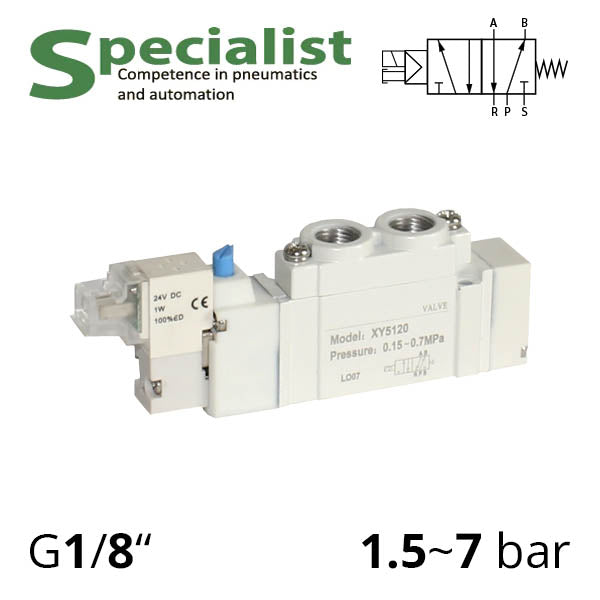

Pneumatic distributor 5/2 with electromagnetic control analog SMC SY5120
In Stock
Product Code:
SV-X50-ES-52-06-DC24V
Brand:
Specialist
1 325,34 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Model SV-X50-ES-52-06 serves as an equivalent to SMC solenoid valves SY5120 (SY5000) with threaded ports 1/8″ and air flow up to 580 L/min.
The feature of the series is compactness when mounted on a plate and connection via a convenient 2-pin connector (included).
The pneumatic valve models are designed for switching compressed air lines with a pressure from 1.5 to 7 bar. They are monostable, meaning they have a return spring in the construction, which, in the absence of power to the electric coil, holds the spool in the position P→B (air supply from inlet P to outlet B) and simultaneously A→R (venting air from outlet A). Once power is supplied 24 Volts, the device switches to the position P→A and B→S (air supply to outlet A, vent pressure from outlet B). Once the signal is removed, the spring returns it to its initial state.
