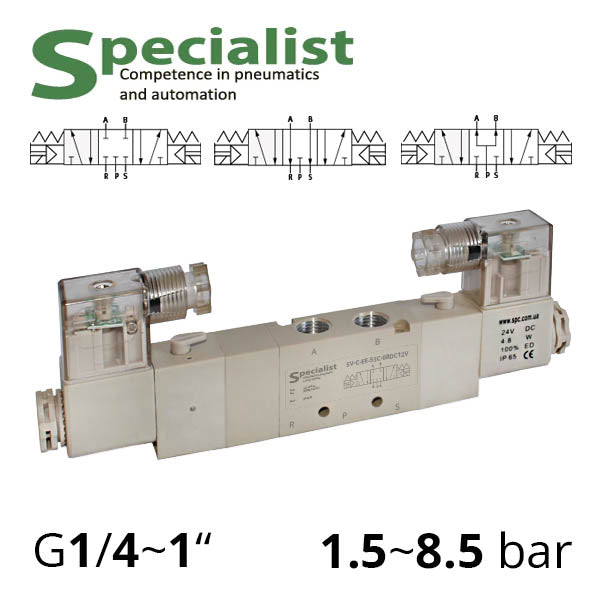

The five-line three-position 5/3 pneumatic distributors with closed centre and bilateral electropneumatic control are designed to work with compressed air at an operational pressure of 1.5-8.5 bar. They can be used to control double-acting pneumatic cylinders or other tasks. They are installed both individually and in groups on a mounting plate.
Five-line pneumatic distributors have five ports on their body labelled with numbers or letters:
- "P" — inlet port for connecting compressed air supply
- "A" — outlet port 1
- "S" or "ExA" — exhaust port for pressure release from outlet 1
- "B" — outlet port 2
- "R" or "ExB" — exhaust port for pressure release from outlet 2
Pneumatic distributors with internal pipe cylindrical thread for input-output G1/8″, G1/4″, G3/8″, G1/2″ or G1″ are available to order. When selecting pneumatic silencers or throttles, note that the sizes of the distributor's exhaust ports are smaller than its input-output (see table below).
By operation mode, the 5/3 distributors with a closed centre are monostable, meaning that in the absence of control signals or simultaneous application of voltage to both coils, they will settle in a position where all lines are blocked. The 5/3 distributors have three execution variations regarding the state without controlling signals:
-

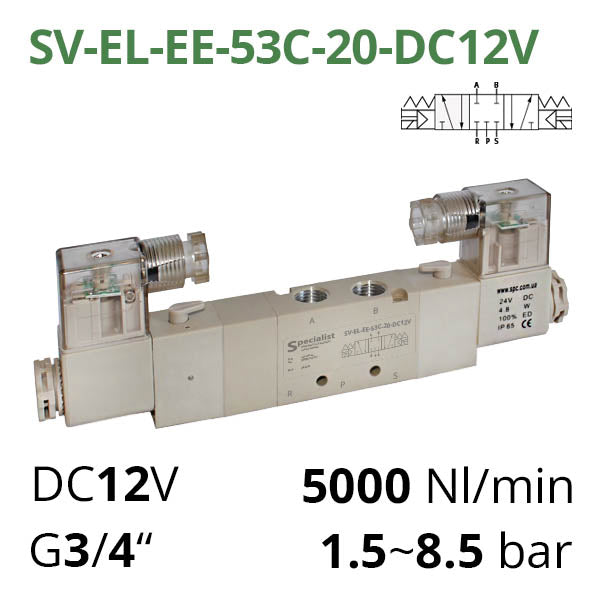

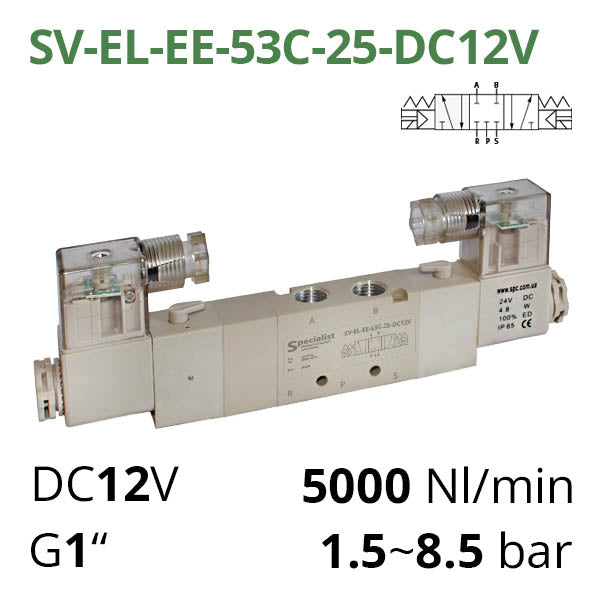

"C" — with closed centre (default)

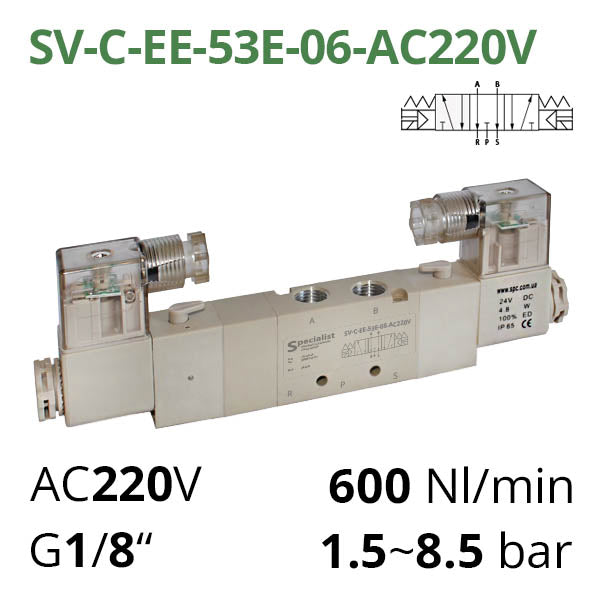

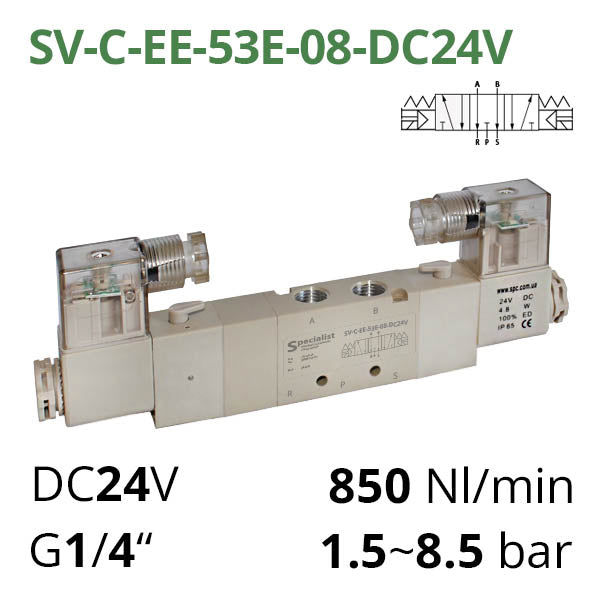

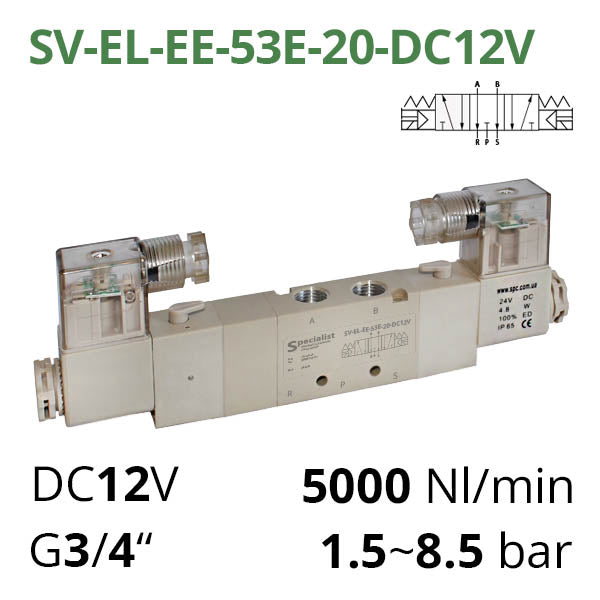

- "E" — with open centre (upon request)

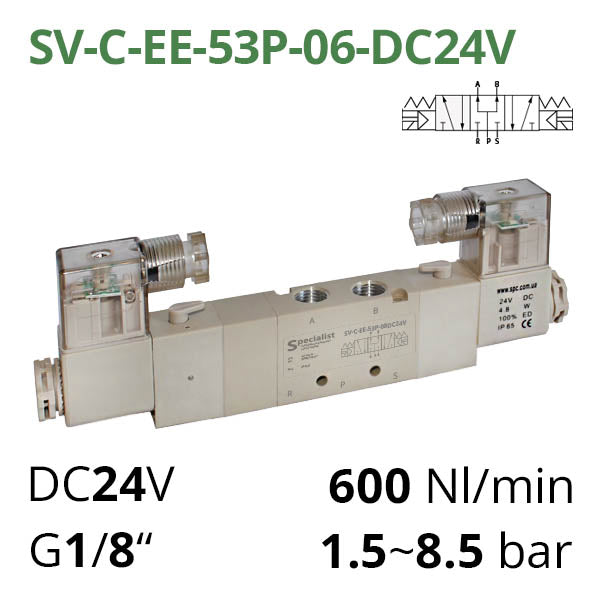

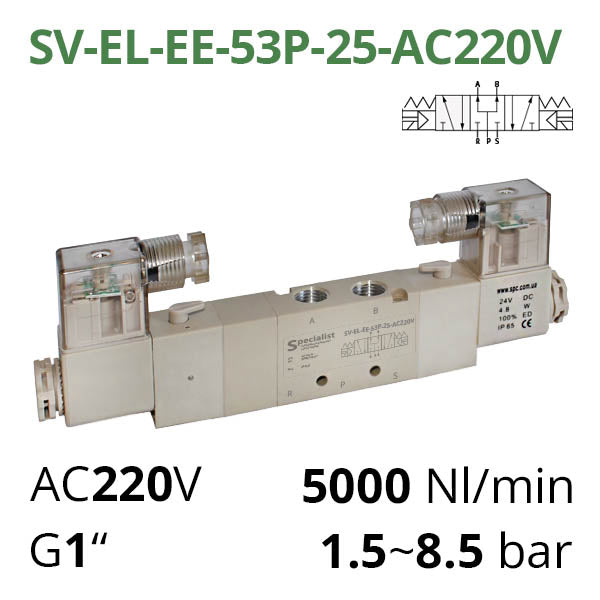

- "P" — with pressure supply to both inlets (upon request)
The client can order solenoid coils with the required electrical specifications:
-
DC12V — direct current, voltage 12V
-
DC24V — direct current, voltage 24V
-
AC220V — alternating current, voltage 220V
Other coils, including explosion-proof versions, are installed on the distributor only upon customer's request.
The distributors are divided into series SV-C, SV-D, SV-E, and SV-EL, differing from each other in effective cross-sectional area, compressed air flow rate, and the thread sizes on the connection ports to the pneumatic line.
Table 1 — Technical Specifications of 5/2 Distributors with Two Solenoid Coils
| Model |
SV-C-EE-53_-06 |
SV-C-EE-53_-08 |
SV-D-EE-53_-10 |
SV-E-EE-53_-15 |
SV-EL-EE-53_-15 |
| Number of Lines/Positions |
5/3 |
5/3 |
5/3 |
5/3 |
5/3 |
| Effective Cross-Sectional Area |
12 mm2
(CV=0.67) |
12 mm2
(CV=0.67) |
18 mm2
(CV=1.00) |
30 mm2
(CV=1.67) |
81 mm2
(CV=4.5) |
| Input-Output Connection |
G1/8″ |
G1/4″ |
G3/8″ |
G1/2″ |
G1″ |
| Exhaust Connection |
G1/8″ |
G1/8″ |
G1/4″ |
G1/2″ |
G3/4″ |
| Nominal Flow Rate |
600
l/min
|
850
l/min
|
1400
l/min
|
2500
l/min
|
5000
l/min
|
| Working Medium |
Air, filtration fineness not below 40 microns |
| Control Type |
Electropneumatic (pilot), pneumatic (direct) |
| Operating Pressure Range |
1.5-8 bar
|
| Max. Input Pressure |
12 bar
|
| Operating Temperature Range |
-5...+50° C (in dry air without moisture) |
| Supply Voltage |
12V DC (2.4W); 24V DC (3W); 220V AC (2.5VA)
|
| Allowed Variation in Supply Voltage |
-15%...+10% |
| Protection Degree, Insulation Class |
IP65, Class F |
| Max. Operating Frequency |
5 cycles/sec |
| Min. Switching Time |
0.05 s |
