Pneumatic distributor 5/2 with side toggle of the C, D and E series

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Pneumatic distributor 5/2 with side toggle of the C, D and E series

Name: Pneumatic distributor 5/2 with side toggle of the C, D and E series
Brand: Specialist
SKU: SV-C-H-52-08
Price: 873.18 UAH
Availability: InStock

In Stock

Type

без пружини повернення з пружиною повернення

Thread size

G 1/2 G 1/4 G 3/8

Model

Manufacturer

Specialist

from 873,18 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 6 variants


Name

Model Price Availability Qty

Action

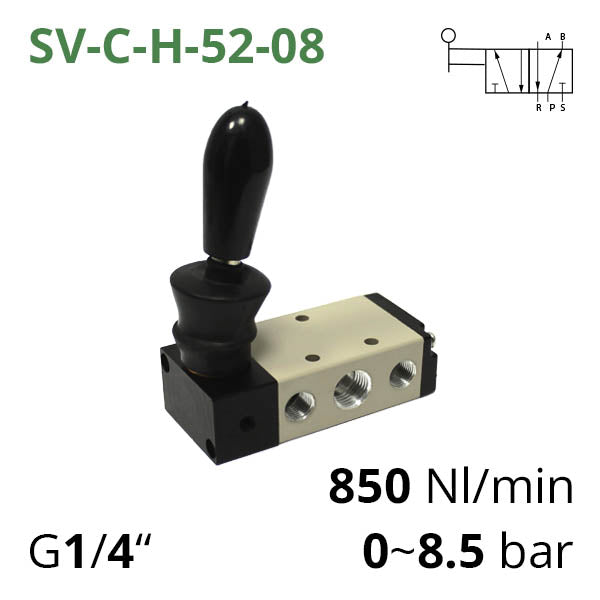

SV-C-H-52-08

Pneumatic distributor 5/2 with side toggle of the C, D and E series

Type=без пружини повернення Thread size=G 1/4

SV-C-H-52-08

873,18 UAH

In Stock

SV-C-HS-52-08

Pneumatic distributor 5/2 with side toggle of the C, D and E series

Type=з пружиною повернення Thread size=G 1/4

SV-C-HS-52-08

873,18 UAH

In Stock

SV-D-H-52-10

Pneumatic distributor 5/2 with side toggle of the C, D and E series

Type=без пружини повернення Thread size=G 3/8

SV-D-H-52-10

1 008,30 UAH

In Stock

SV-D-HS-52-10

Pneumatic distributor 5/2 with side toggle of the C, D and E series

Type=з пружиною повернення Thread size=G 3/8

SV-D-HS-52-10

1 008,30 UAH

In Stock

SV-E-H-52-15

Pneumatic distributor 5/2 with side toggle of the C, D and E series

Type=без пружини повернення Thread size=G 1/2

SV-E-H-52-15

1 502,10 UAH

In Stock

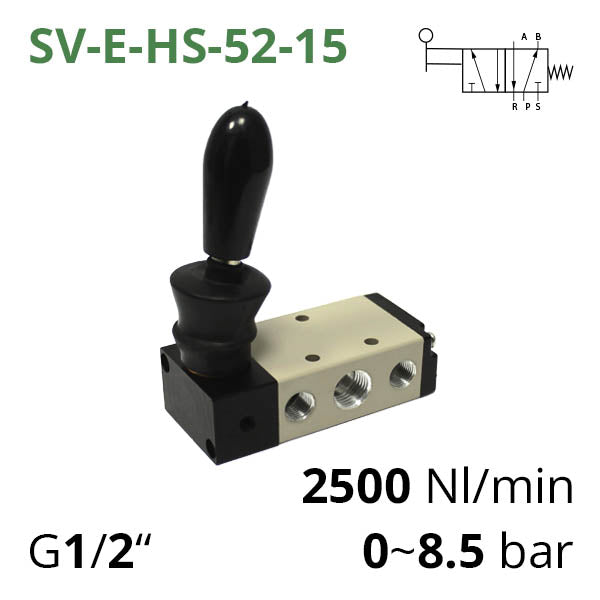

SV-E-HS-52-15

Pneumatic distributor 5/2 with side toggle of the C, D and E series

Type=з пружиною повернення Thread size=G 1/2

SV-E-HS-52-15

1 502,10 UAH

In Stock

Technical specifications

Thread

G 1/2", G 1/4", G 3/8"

Тип

без пружини повернення, з пружиною повернення

Description

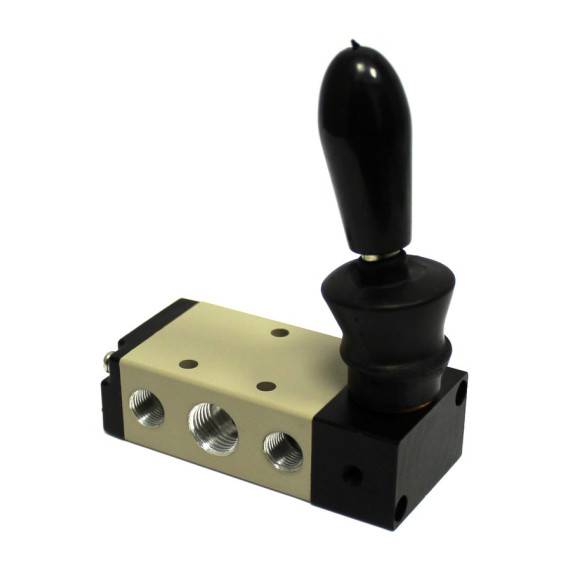

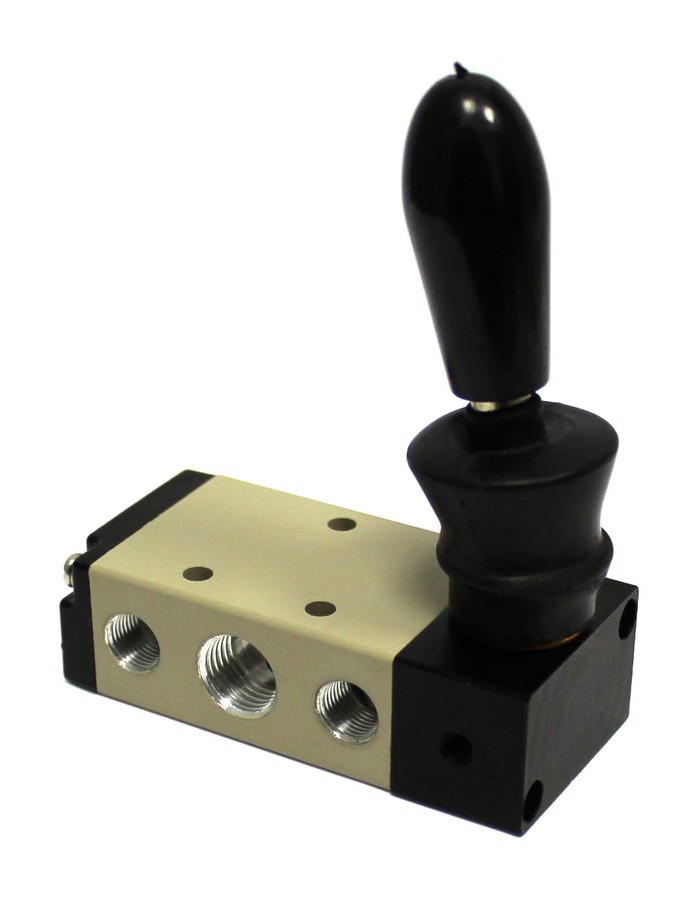

Pneumatic valves SV-C(D,E)-52 with manual control have a side handle for switching compressed air lines with pressure from 0 to 8.5 bar. It is one of the spool 5/2 valves that have two outlets and can, for example, control double-acting pneumatic cylinders or mechanisms for opening-closing various devices.

When ordering, the customer must select the thread size and handle fixation. The five-port two-position pneumatic valves are supplied with threads G 1/4″, 3/8″ or 1/2″ (inch). They have two options for manual control according to the method:

without spring return (bistable) with fixation of the last position left by the operator. Denoted in coding as "H";
with spring return (monostable), when the valve returns to its initial state when the operator releases the lever. The product code is signed as "HS".

https://drive.google.com/file/d/1F6FruAd-F-zh0rA7AlK7_4CoqZR4rrlw/view?usp=sharing
