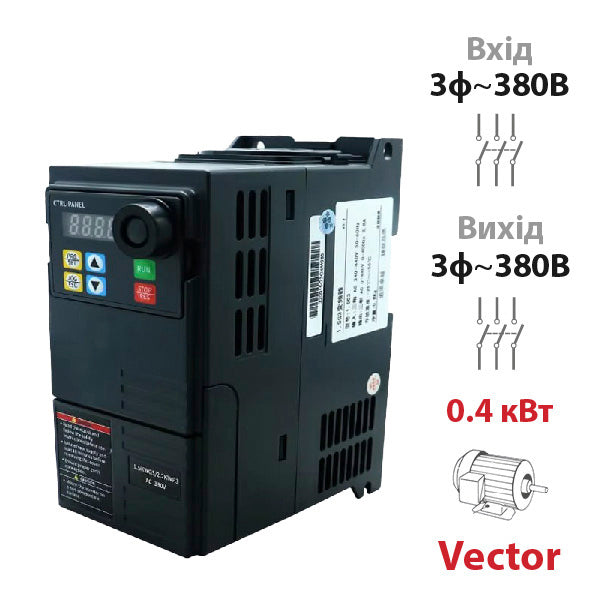

Vector frequency converter 0.4 kW, 3F-3F 380V (SPLC-HS320-0R4G4)

Do you have any questions about the product?
We will be happy to answer them in messengers

Vector frequency converter 0.4 kW, 3F-3F 380V (SPLC-HS320-0R4G4)

Name: Vector frequency converter 0.4 kW, 3F-3F 380V (SPLC-HS320-0R4G4)
Brand: Specialist
SKU: SPLC-HS320-0R4G4
Price: 6743.70 UAH
Availability: InStock

In Stock

Product Code:

SPLC-HS320-0R4G4

Brand:

Specialist

9 001,48 UAH

-25%

6 743,70 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Operating mode

Scalar and vector control

Output frequency

0 to 400 Hz

Output voltage

3ph 380V

Supply voltage

3ph 380V

Power

0.4 kW

Description

Vector inverter 3-phase SPLC-HS320-0R4G4 series HS320 is designed for autonomous control of small power three-phase asynchronous motor— 380 V, up to 1.5 A, up to 0.4 kW (400 W). Vector mode allows the use of this frequency and voltage inverter for practically any type of pumps, conveyor belts and machines.

Inverter model SPLC-HS320-0R4G4 has a housing IP20 intended for installation on a DIN-rail in a motor control cabinet (IP56) for protection against dust and moisture. The removable control panel on the front of the cabinet facilitates inverter adjustment.

Table — Main technical parameters of 400w inverter model SPLC-HS320-0R4G4
Input Voltage	3Ph 380 Volts
Output Voltage	3Ph 380 V
Output Current	1.5 Amperes
Output Power	0.4 kW
Output Frequency Range	from 0 to 400.0 Hz
Protection Degree EN 60529	IP20

Features of SPLC-HS320-0R4G4

This is the most affordable vector frequency converter at 0.4 kW. It supports all necessary functions, but compared to other series, it has a smaller memory capacity: 7 preset values for multi-speed programming or step-by-step instruction; time setting range up to 999.9 s (~17 minutes), no RS-485.

One of the advantages of the inverter SPLC-HS320-0R4G4 is the higher carrier frequency— from 2 to 16 kHz (can be configured). This ensures better electromagnetic compatibility, increasing the carrier frequency for quieter drive operation.
