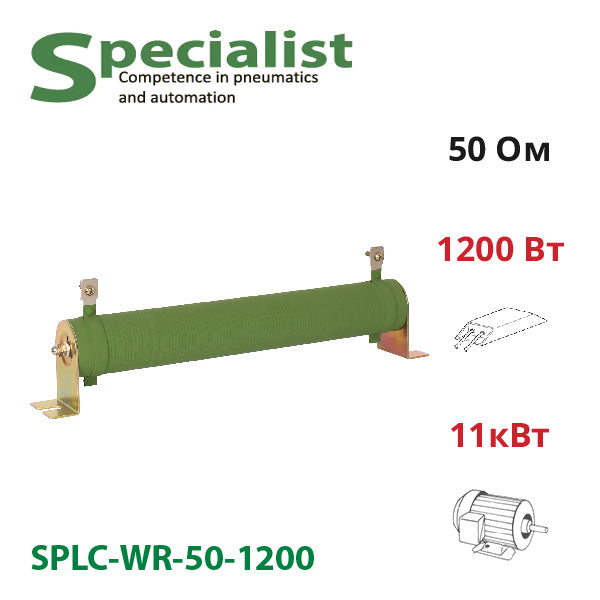

Braking resistor 50 Ohm 1200 W SPLC-WR-50-1200 for frequency converter 11 kW
In Stock
Product Code:
SPLC-WR-50-1200
Brand:
Specialist
1 323,72 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The ceramic resistor model SPLC-WR-50-1200 is most frequently used as a brake resistor for a frequency converter 11 kW for three-phase motors 380 V — when choosing, refer to the frequency converter manufacturer's recommended resistor characteristics and calculated braking power of the motor. This wire-wound resistor has a resistance of 50 Ohm and a capacity of 1200 W.
WR series brake resistors are made with a ceramic tube wrapped with wire of iron-chromium-aluminium alloy (by default) or nichrome (upon request). The ceramic body acts as an insulator and heat sink, resistant to high temperatures and corrosion. The wire has high specific electrical conductivity, allowing effective heat dissipation generated during motor braking.
| Model | SPLC-WR-50-1200 |
|---|---|
| Rated Power | 1200 W |
| Rated Resistance | 50 Ohm |
| Resistance Tolerance | ±5% (type J) ±10% (type K) |
| Rated Load | 50-200 W, surface temperature less than 275°C; more than 200 W — 350°C |
| Short-term Overload | no visible damage ΔR ≤ ±(5%R + 0.05 Ohm) |
| Insulation Resistance | ΔR ≥ 1000 MOhm 1 min, DC 1000 V |
| Withstand Voltage | No visible damage, no arcing ΔR ≤ ±(0.1%R + 0.05 Ohm), AC 3000 V, 5 s |
| Terminal Strength | no visible damage, 45 N 30 s |
| Material | 0Cr25AL5/Cr20Ni80 |
| Protection Rating | IP00 |
| Storage Temperature | from -40 to 50°C (dry condition) |
