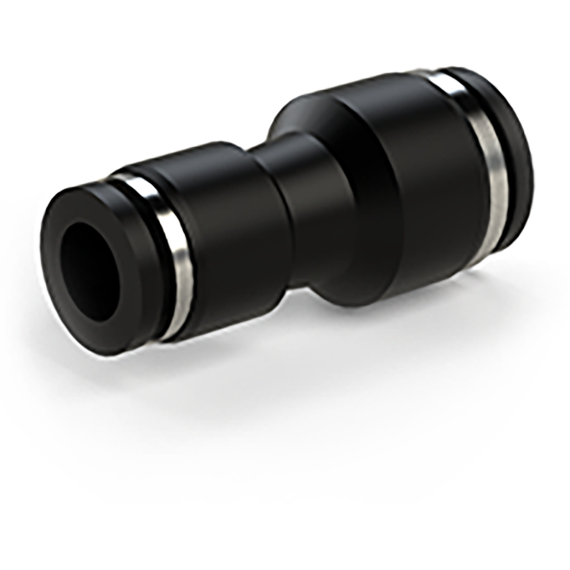

Collet adapter straight (rescue) of the SF-IPG series for tubes Ø 4~12 mm

Name: Collet adapter straight (rescue) of the SF-IPG series for tubes Ø 4~12 mm
Brand: Specialist
SKU: SF-IPG 6-4
Price: 18.18 UAH
Availability: InStock

In Stock

Менший зовн.діаметр трубки

4 мм 6 мм 8 мм 10 мм

Більший зовн.діаметр трубки

6 мм 8 мм 10 мм 12 мм

Model

Manufacturer

Specialist

from 18,18 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

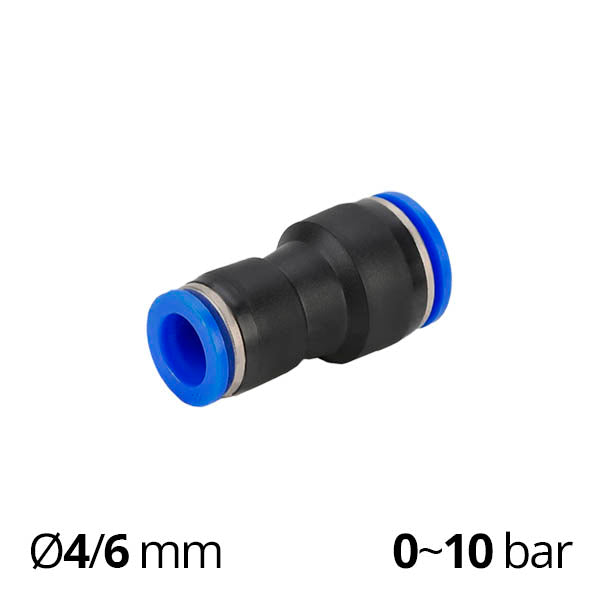

SF-IPG 6-4

Collet adapter straight (rescue) of the SF-IPG series for tubes Ø 4~12 mm

Менший зовн.діаметр трубки=4 мм Більший зовн.діаметр трубки=6 мм

SF-IPG 6-4

18,18 UAH

In Stock

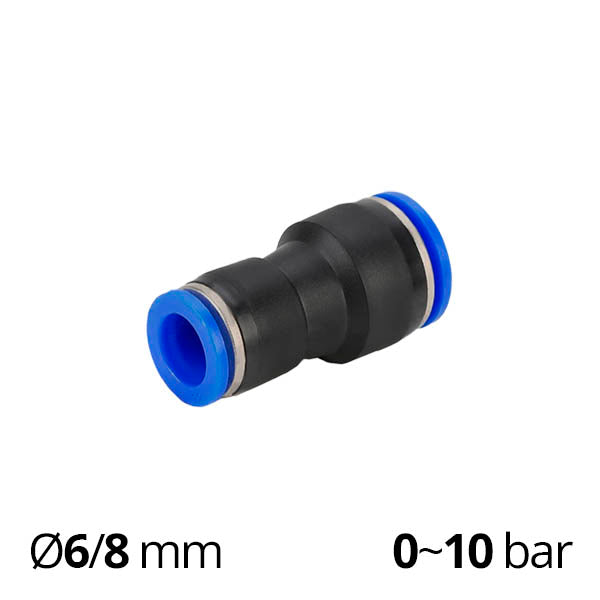

SF-IPG 8-6

Collet adapter straight (rescue) of the SF-IPG series for tubes Ø 4~12 mm

Менший зовн.діаметр трубки=6 мм Більший зовн.діаметр трубки=8 мм

SF-IPG 8-6

18,18 UAH

In Stock

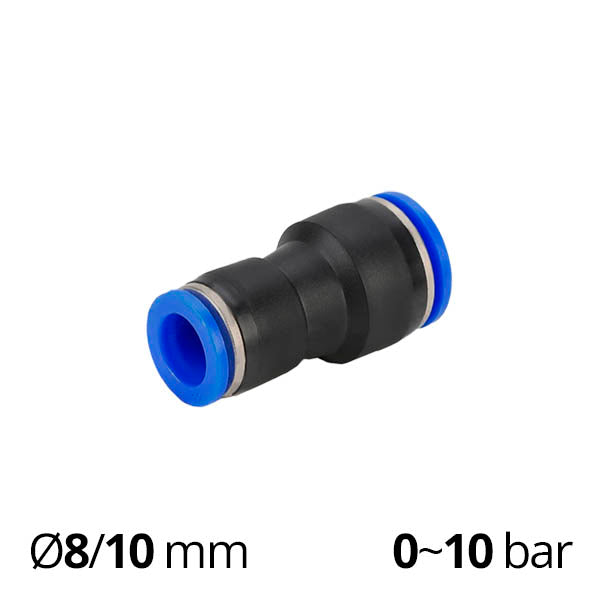

SF-IPG 10-8

Collet adapter straight (rescue) of the SF-IPG series for tubes Ø 4~12 mm

Менший зовн.діаметр трубки=8 мм Більший зовн.діаметр трубки=10 мм

SF-IPG 10-8

23,40 UAH

In Stock

SF-IPG 12-10

Collet adapter straight (rescue) of the SF-IPG series for tubes Ø 4~12 mm

Менший зовн.діаметр трубки=10 мм Більший зовн.діаметр трубки=12 мм

SF-IPG 12-10

31,20 UAH

In Stock

Technical specifications

Tube O.D.

6 mm, 8 mm, 10 mm, 12 mm

Connection type

Collet fitting

Body material

Plastic

Variations

Adapter

Fitting type

Direct

Description

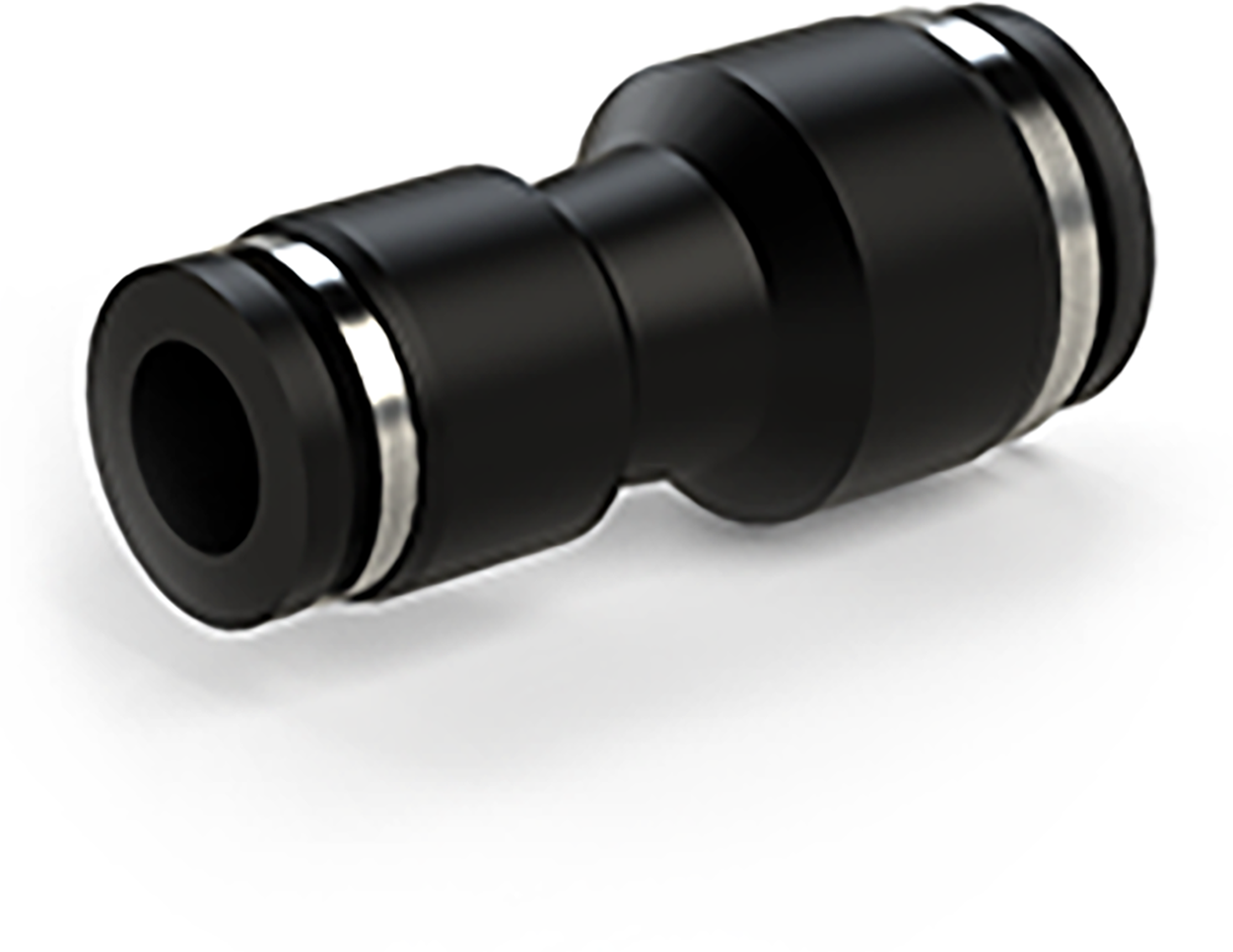

The plastic straight collet adapter (rescuer fitting) SF-IPG is designed for connecting two polyethylene, polyamide, or polyurethane flexible tubes of different diameters. On one side, a tube with a smaller external diameter of 4, 6, 8, or 10 mm is connected to the fitting, and on the other side — Ø6, 8, 10, or 12 mm.

The plastic fitting is intended for use in compressed air pneumatic lines under a pressure of 0-10 bar and temperatures ranging from minus 10 to plus 60°C. The plastic collet fitting can also be used for water and other media compatible with the product's materials, although the operational characteristics may differ from those mentioned above.

Technical plastic is used in the manufacture of plastic fittings. Sealing is achieved with a NBR gasket.
