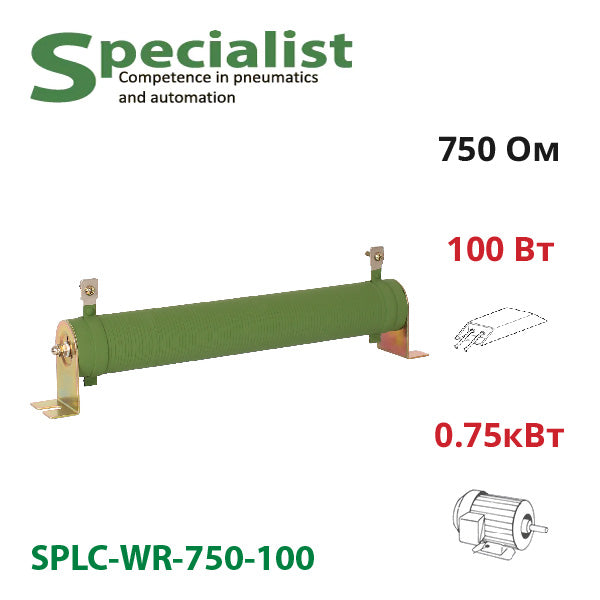

Braking resistor 750 Ohm 100 W SPLC-WR-750-100 for frequency converter 0.75 kW
In Stock
Product Code:
SPLC-WR-750-100
Brand:
Specialist
362,52 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The ceramic resistor model SPLC-WR-750-100 is most commonly used as a brake resistor for 0.75 kW drive for three-phase motors 380 V — when selecting, rely on the characteristics recommended by the frequency converter manufacturer and the calculated braking power of the motor. This wire wound resistor has a resistance of 400 Ohm and a power rating of 100 W.
Brake resistors of the WR series are made from a ceramic tube wound with wire made of an iron-chromium-aluminium alloy (by default) or nichrome (on order). The ceramic body serves as an insulator and heat sink, resistant to high temperatures and corrosion. The wire has high specific electrical conductivity, allowing effective dissipation of the heat generated during motor braking.
| Model | SPLC-WR-750-100 |
|---|---|
| Nominal Power | 100 W |
| Nominal Resistance | 750 Ohm |
| Resistance Tolerance | ±5% (type J) ±10% (type K) |
| Nominal Load | 50-200 W, surface temperature less than 275°C; above 200 W — 350°C |
| Short-Time Overload | no visible damage ΔR ≤ ±(5%R + 0.05 Ohm) |
| Insulation Resistance | ΔR ≥ 1000 MOhm 1 min, DC 1000 V |
| Withstanding Voltage | No visible damage, no arcing ΔR ≤ ±(0.1%R + 0.05 Ohm), AC 3000 V, 5 s |
| Terminal Strength | no visible damage, 45 N 30 s |
| Material | 0Cr25AL5/Cr20Ni80 |
| Protection Class | IP00 |
| Storage Temperature | from -40 to 50°C (without moisture) |
