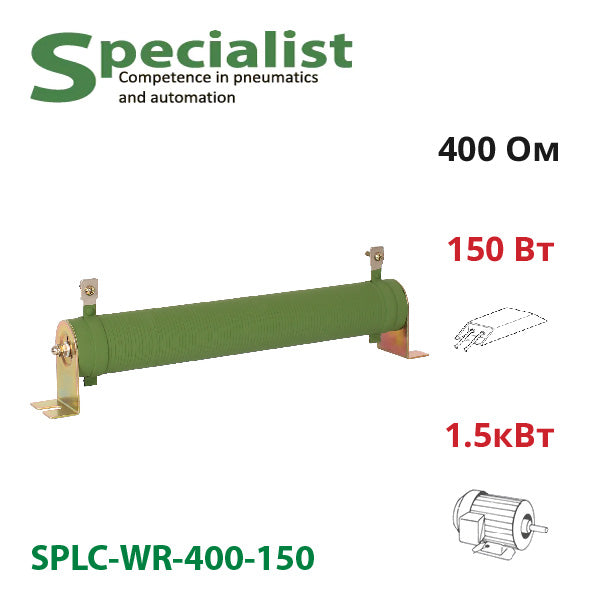

Braking resistor 400 Ohm 150 W SPLC-WR-400-150 for frequency converter 1.5 kW
In Stock
Product Code:
SPLC-WR-400-150
Brand:
Specialist
481,32 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The ceramic resistor model SPLC-WR-400-150 is most commonly used as a braking resistor for a 1.5 kW frequency converter for three-phase motors 380 V – when choosing, rely on the manufacturer's recommended characteristics of the frequency converter and the calculated braking power of the motor. This wire-wound resistor has a resistance of 400 Ohm and power of 150 W.
The WR series braking resistors are made of a ceramic tube, on which wire of iron-chromium-aluminium alloy (by default) or nichrome (on request) is wound. The ceramic body acts as an insulator and heat sink, resistant to high temperatures and corrosion. The wire has high electrical conductivity, allowing efficient dissipation of the heat generated when braking the electric motor.
| Model | SPLC-WR-400-150 |
|---|---|
| Rated Power | 150 W |
| Rated Resistance | 400 Ohm |
| Resistance Tolerance | ±5% (type J) ±10% (type K) |
| Rated Load | 50-200 W, surface temperature less than 275°C; more than 200 W — 350°C |
| Short-term Overload | no visible damage ΔR ≤ ±(5%R + 0.05 Ohm) |
| Insulation Resistance | ΔR ≥ 1000 MOhm 1 min, DC 1000 V |
| Dielectric Strength | No visible damage, no arcing ΔR ≤ ±(0.1%R + 0.05 Ohm), AC 3000 V, 5 s |
| Terminal Strength | no visible damage, 45 N 30 s |
| Material | 0Cr25AL5/Cr20Ni80 |
| Protection Class | IP00 |
| Storage Temperature | from -40 to 50°C (without moisture) |
