Ball valve 1/4″ ext. - external bronze (SCBV-Q201-16FB-08-SF)

Do you have any questions about the product?
We will be happy to answer them in messengers

Ball valve 1/4″ ext. - external bronze (SCBV-Q201-16FB-08-SF)

Name: Ball valve 1/4″ ext. - external bronze (SCBV-Q201-16FB-08-SF)
Brand: Specialist
SKU: SCBV-Q201-16FB-08-SF
Price: 267.30 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Тип різьби

Внутрішня-зовнішня

Thread size

G ¼

Model

Manufacturer

Specialist

from 267,30 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q201-16FB-08-SF

Ball valve 1/4″ ext. - external bronze (SCBV-Q201-16FB-08-SF)

Diameter of conditional passage=8 Тип різьби=Внутрішня-зовнішня Thread size=G ¼

SCBV-Q201-16FB-08-SF

267,30 UAH

In Stock

Technical specifications

Тип різьби

Внутрішня-зовнішня

Connection type

With internal thread, With external thread

Thread

G ¼"

Body material

Bronze

Nominal diameter

TWO 8

Тип засувки

ball crane

Nominal diameter

Inlet pressure

There are 12

Тип контролю

handled

Description

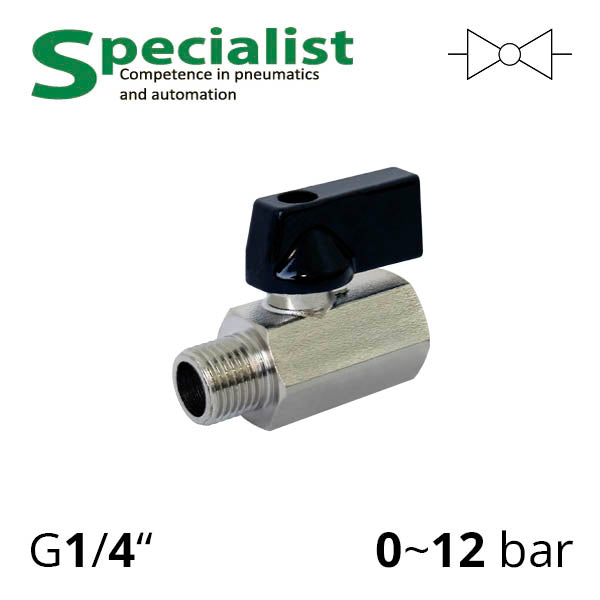

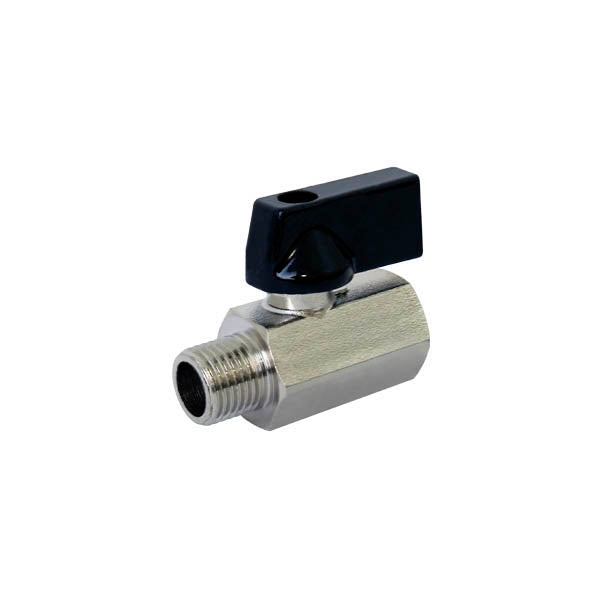

A miniature two-way ball valve 1/4 by 1/4 inch male-female series SCBV-Q201-16FB-08-SF features a nickel-plated bronze one-piece body with external thread on one side and internal on the other. The threaded type "G" is a cylindrical pipe thread. The valve has two positions: "open" and "closed", changing by rotating the handle 90 degrees. The handle is made of technical polymer.

The ball valves model SCBV-Q201-16FB-08-SF can be used for water, compressed air, lubricant, other liquids, suspensions, or gases that are compatible with bronze. Popular for piston and rotary compressor piping, installed to manually drain condensate from reservoirs, filters, pneumatic pipelines.

Working temperature range is 0 to +80 °C, under pressure up to 12 bar (for air working environment).
