Plastic collet fitting SF-EPY tee Y-shaped

Do you have any questions about the product?
We will be happy to answer them in messengers

Plastic collet fitting SF-EPY tee Y-shaped

Name: Plastic collet fitting SF-EPY tee Y-shaped
Brand: Specialist
SKU: SF-EPY 4
Price: 185.16 UAH
Availability: InStock

In Stock

Tube O.D.

16 mm 12 mm 10 mm 8 mm 6 mm 4 mm

Model

SF-EPY 4

Manufacturer

Specialist

from 41,40 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 6 variants


Name

Model Price Availability Qty

Action

SF-EPY 16

Plastic collet fitting SF-EPY tee Y-shaped

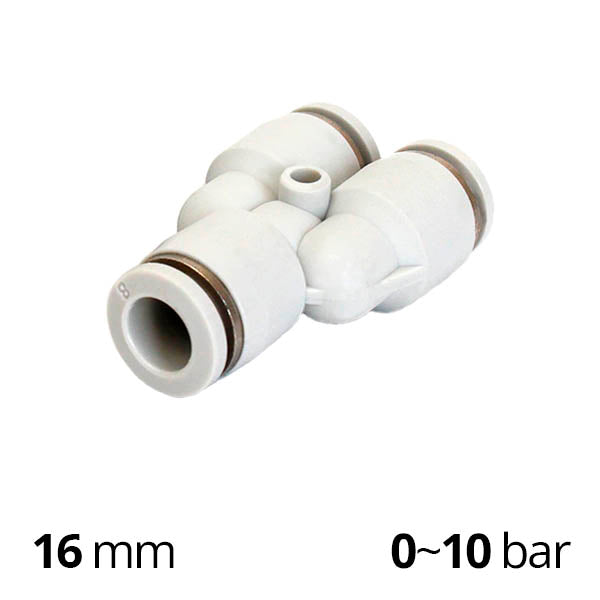

Tube O.D.=16 mm

SF-EPY 16

185,16 UAH

In Stock

SF-EPY 12

Plastic collet fitting SF-EPY tee Y-shaped

Tube O.D.=12 mm

SF-EPY 12

90,12 UAH

In Stock

SF-EPY 10

Plastic collet fitting SF-EPY tee Y-shaped

Tube O.D.=10 mm

SF-EPY 10

75,54 UAH

In Stock

SF-EPY 8

Plastic collet fitting SF-EPY tee Y-shaped

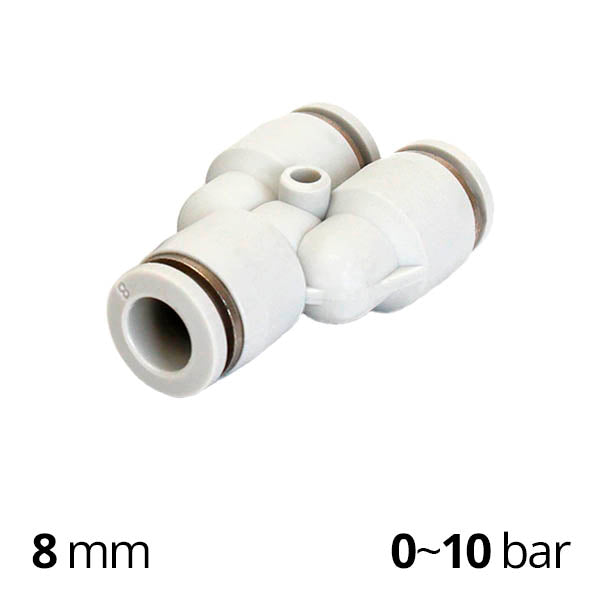

Tube O.D.=8 mm

SF-EPY 8

51,18 UAH

In Stock

SF-EPY 6

Plastic collet fitting SF-EPY tee Y-shaped

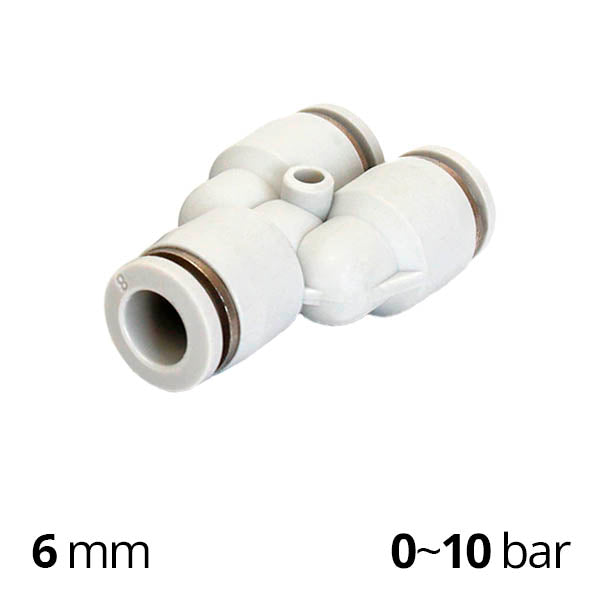

Tube O.D.=6 mm

SF-EPY 6

46,32 UAH

In Stock

SF-EPY 4

Plastic collet fitting SF-EPY tee Y-shaped

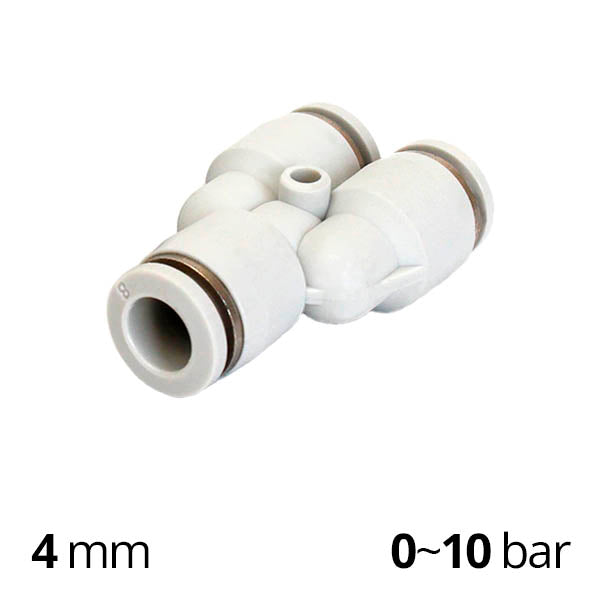

Tube O.D.=4 mm

SF-EPY 4

41,40 UAH

In Stock

Technical specifications

Tube O.D.

4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm

Connection type

Collet fitting

Body material

Plastic

Inlet pressure

9.5 bar

Variations

The connector is straight through

Fitting type

Tee Y

Description

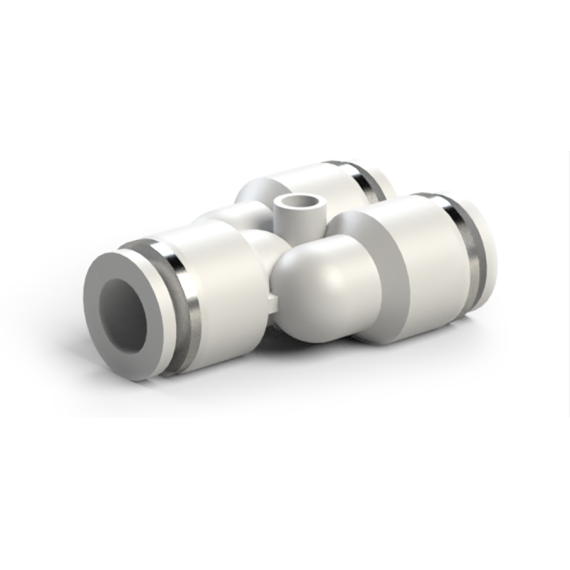

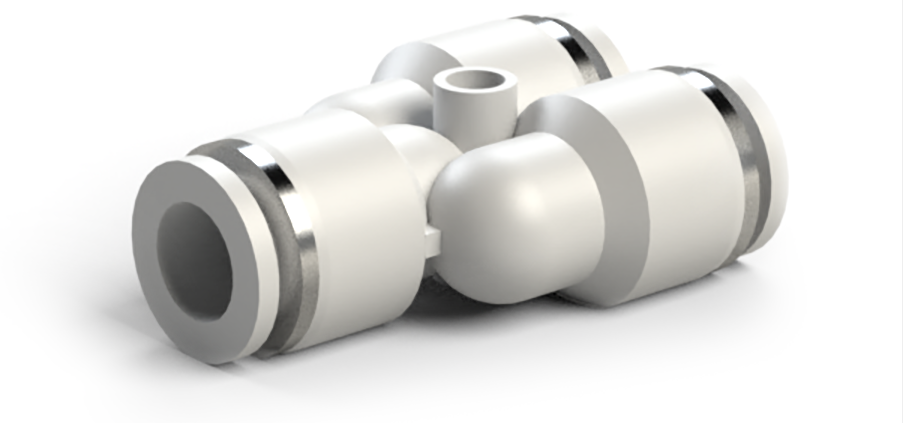

The SF-EPY series plastic push-in fitting is a Y-shaped union with a quick-release connection for polyamide, polyurethane, or polyethylene pneumatic tubes with an outer diameter of 4, 6, 8, 10, 12, or 16 mm.

The body and collet of the SF-EPY fitting are made from technical plastic in white or light grey, with NBR rubber seals. Therefore, this plastic fitting can be used not only in pneumatic lines but also for transporting water, non-aggressive gases, and fluids to which NBR is resistant.

When used for compressed air, the Y-shaped connector has a working pressure of up to 10 bar (1 MPa) and can withstand temperatures from minus 10 to plus 60°C. These parameters may vary when using other working media.

Advantages of SF-EPY

The SF-EPY series plastic union fittings are of higher quality than the SF-IPY series because they have better plastic density and a higher product weight for the same overall dimensions.
The collet is one of the best types of quick-release connections that does NOT deform the tube end, allowing it to be reused multiple times.
Using quick-release fittings saves time on equipment installation and maintenance.
