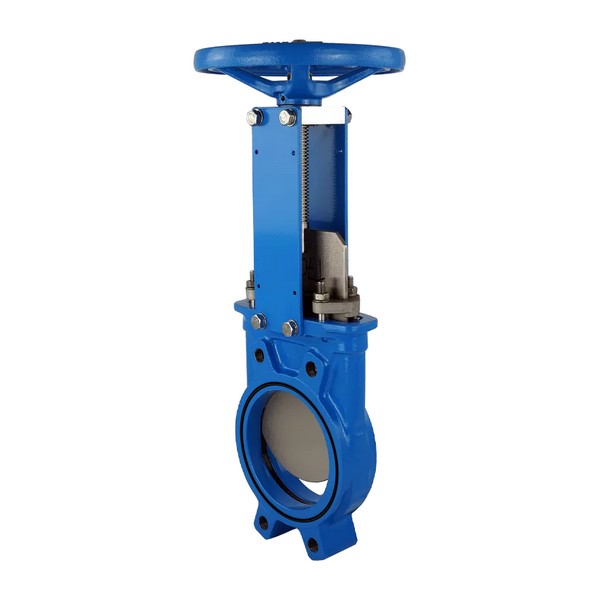

Knife gate latch DU 400 cast iron SCBF-PZ673X-10JC-400 with flywheel

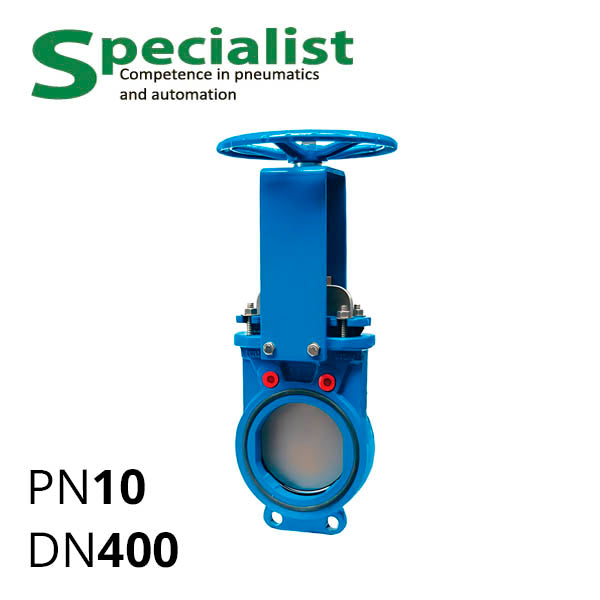

Model SCBF-PZ673X-10JC-400-M is a cast iron wedge gate between-flange DN400 PN10 with rising stem and handwheel for manual closure. This bidirectional knife gate valve DN 400 made of cast iron is designed for use with working media with or without pressure 9.8 bar and temperature up to 80°C, including for gases, liquids, and bulk materials.

The company “Specialist” offers production of knife gate valves based on series from the online store, but with client-required modifications: with rubberised wedge cover, stainless steel, more compact without rising stem, with high-temperature rubber EPDM or Viton. We select materials for your working environment.

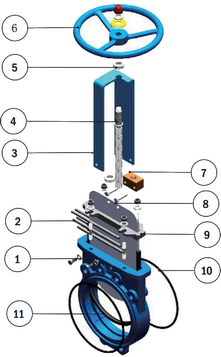

Construction Features of the Standard Gate SCBF-PZ673X-10JC-400-M with DN400

• Reinforced NBR. Rubber sealing reinforced with steel wire around the perimeter of the seat under the wedge — helps to retain shape, increases lifespan and tightness.
• Rising Stem. Serves as an indication of the position of the DN 400 gate, and is a more reliable construction.
• WCB. Although WCB is called cast iron, it is actually cast carbon steel — more impact-resistant and withstands high pressure, important for industrial shut-off valves.
• Standard Flange Connection: PN10, PN16, 10K, 150LB, TABLED, DIN.
• Working Pressure: 10 kg/cm² for DN400. When converting pressure to other units 9.8 bar (10 bar) or 0.98 MPa (1 MPa). Denoted as PN 10.
